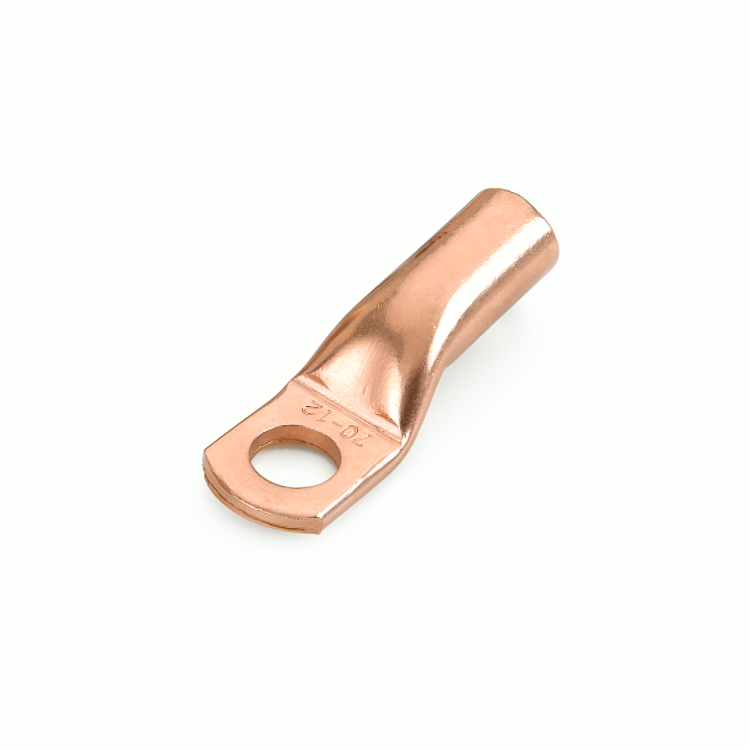

Tubular Compression Cable Lugs (As Per DIN 46235)

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

Cable mm²	Stud Hole E	Dimensions							Product Code

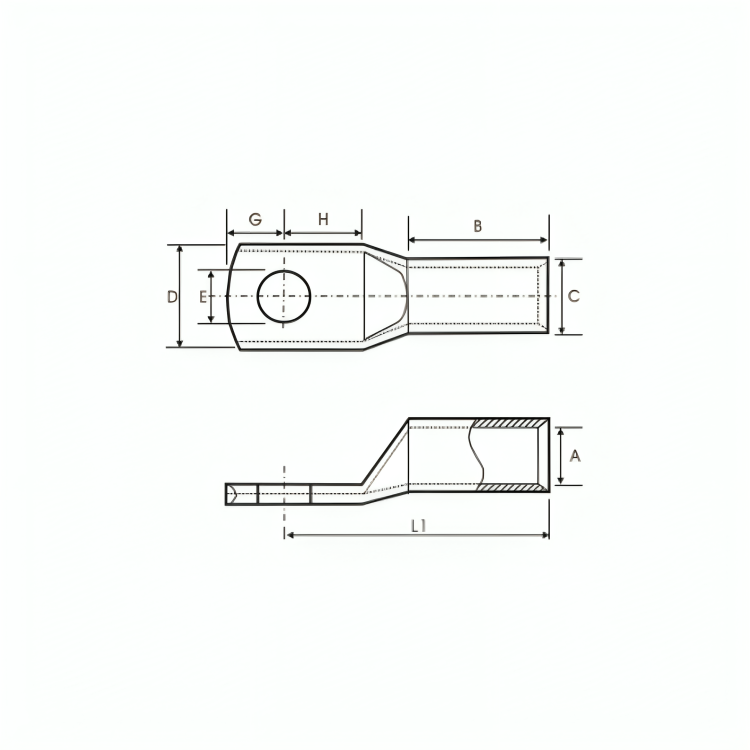

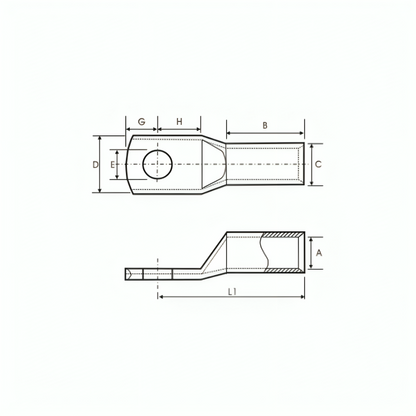

Cable mm²	Stud Hole E	D	A	B	C	G	H	L-1	Product Code
6	5.3	8.5	3.8	10	5.5	6.5	7.5	24	HUTD 6 - 5
10	6.5	8.5	4.5	10	6	7	8.5	27.5	HUTD10 - 6
16	6.5	12	5.5	20	8.5	7.5	8	35	HUTD16 - 6
16	8.4	12	5.5	20	8.5	10	10	35	HUTD16 - 8
16	10.5	17	5.5	20	8.5	12	12	37	HUTD 16 - 10
16	13	19	5.5	20	8.5	13	13	37	HUTD 16 - 12
25	6.5	15	7	20	10	7.5	8	39	HUTD 25 - 6
25	8.4	15	7	20	10	10	10	39	HUTD 25 - 8
25	10.5	17	7	20	10	12	12	39	HUTD 25 - 10
25	13	19	7	20	10	13	13	39	HUTD 25 - 12
35	8.4	17	8.2	20	12.5	7.5	8	42	HUTD 35 - 8
35	10.5	19	8.2	20	12.5	10	10	42	HUTD 35 - 10
35	13	21	8.2	20	12.5	12	12	42	HUTD 35 - 12
50	8.4	22	10	28	14.5	10	10	51	HUTD 50 - 8
50	10.5	22	10	28	14.5	12	12	51	HUTD 50 - 10
50	13	23	10	28	14.5	13	13	51	HUTD 50 - 12
50	17	28	10	28	14.5	14.5	14.5	51	HUTD 50 - 16
70	10.5	24	11.5	28	16.5	10	10	54	HUTD 70 - 10
70	13	24	11.5	28	16.5	12	12	54	HUTD 70 - 12
70	17	32	11.5	28	16.5	13	13	54	HUTD 70 - 16
70	21	32	11.5	28	16.5	14.5	14.5	54	HUTD 70 - 20
95	10.5	28	13.5	35	19	12	12	64	HUTD 95 - 10
95	13	28	13.5	35	19	12	12	64	HUTD 95 - 12
95	17	32	13.5	35	19	13	13	67	HUTD 95 - 16
95	21	34	13.5	35	19	14.5	14.5	67	HUTD 95 - 20
120	10.5	32	15.5	35	21	15	16	68	HUTD 120 -10
120	13	32	15.5	35	21	16	17	68	HUTD 120 -12
120	17	32	15.5	35	21	18	19	69	HUTD 120 -16
120	21	38	15.5	35	21	19	20	69	HUTD 120 -20
150	10.5	34	17	35	23.5	15	16	77	HUTD 150 -10
150	13	34	17	35	23.5	16	17	77	HUTD 150 -12
150	17	34	17	35	23.5	19	20	77	HUTD 150 -16
150	21	40	17	35	23.5	19	20	77	HUTD 150 -20
185	10.5	37	19	40	25.5	15	16	81	HUTD 185 -10
185	13	37	19	40	25.5	16	17	81	HUTD 185 -12
185	17	37	19	40	25.5	19	20	81	HUTD 185 -16
185	21	40	19	40	25.5	19	20	81	HUTD 185 -20
240	10.5	42	21.5	40	29	16	17	91	HUTD 240 -10
240	13	42	21.5	40	29	19	20	91	HUTD 240 -12
240	17	42	21.5	40	29	19	20	91	HUTD 240 -16
240	21	46	21.5	40	29	21	22	91	HUTD 240 -20
300	13	48	24	50	32	19	22	100	HUTD 300 -12
300	17	48	24	50	32	19	22	100	HUTD 300 -16
300	21	48	24	50	32	22	22	100	HUTD 300 -20
400	17	55	27.5	70	38.5	25	25	115	HUTD 400 -16
400	21	55	27.5	70	38.5	25	25	115	HUTD 400 -20
500	21	60	31	70	42	25	25	127	HUTD 500 -20
630	21	60	34.5	80	44	25	25	135	HUTD 630 -20
800	21	70	40	100	52	30	30	165	HUTD 800 -20
1000	21	80	44	100	58	30	30	165	HUTD 1000-20
