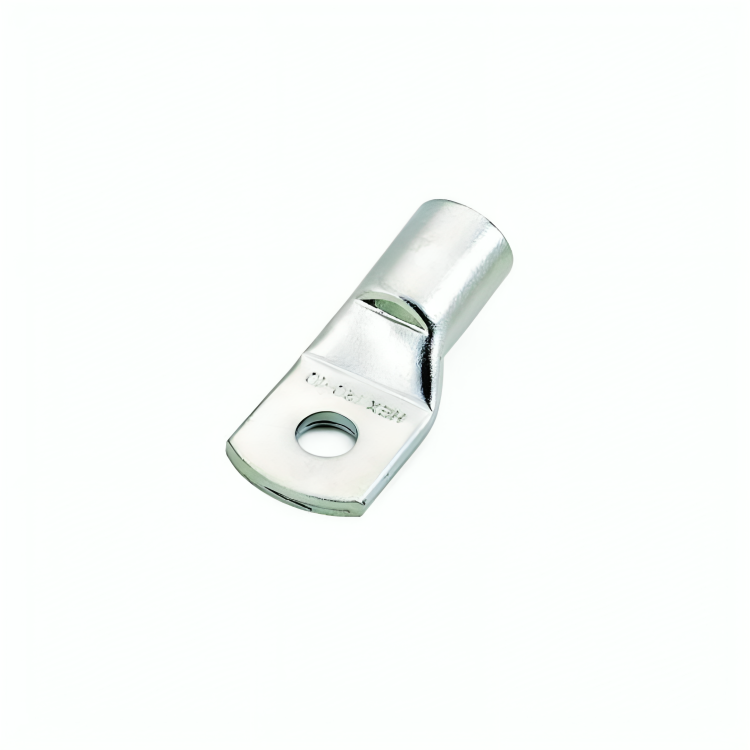

Crimping Type Copper Tubular Cable Terminal Ends - Economy Range

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

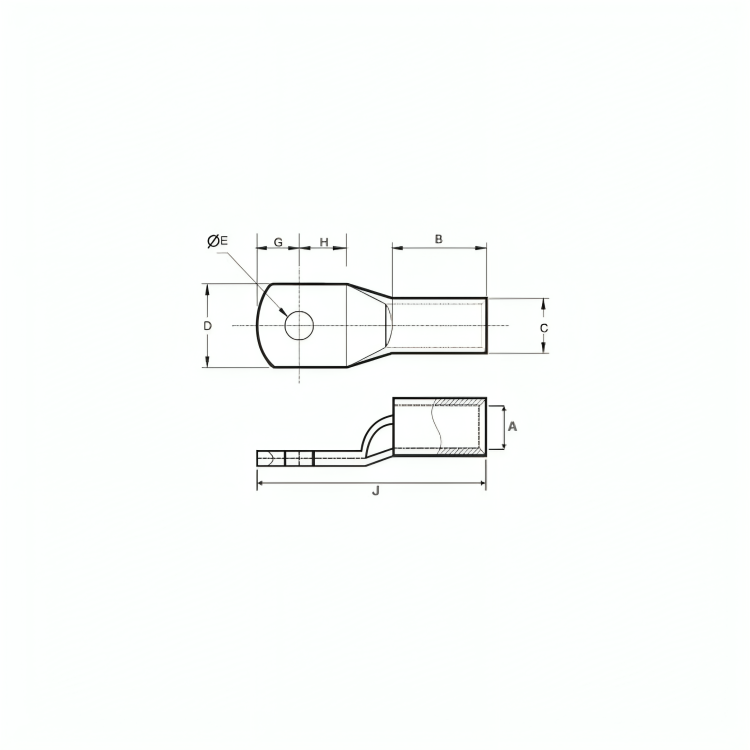

Cable mm²	Stud Hole E	Dimensions in mm2 +- 3%							Product Code
Cable mm²	Stud Hole E	A	C	D	G	H	B	J	Product Code
35	6.5	8.0	10.0	14.5	9.0	9.0	13.5	37.0	HLT 35 - 6
35	8.4	8.0	10.0	14.5	9.0	9.0	13.5	37.0	HLT 35 - 8
35	10.5	8.0	10.0	14.5	9.0	9.0	13.5	37.0	HLT 35 - 10
35	13.0	8.0	10.0	18.0	10.0	12.0	13.5	41.0	HLT 35 - 12
35	17.0	8.0	10.0	22.0	14.0	16.0	13.5	50.0	HLT 35 - 16
50	6.5	9.2	11.2	16.5	8.0	11.0	17.0	42.0	HLT 50 - 6
50	8.4	9.2	11.2	16.5	9.0	10.0	17.0	42.0	HLT 50 - 8
50	10.5	9.2	11.2	16.5	9.0	10.0	17.0	42.0	HLT 50 - 10
50	13.0	9.2	11.2	20.0	10.0	12.0	17.0	45.0	HLT 50 - 12
50	15.0	9.2	11.2	22.0	15.0	15.0	17.0	53.0	HLT 50 - 14
50	17.0	9.2	11.2	22.0	15.0	15.0	17.0	53.0	HLT 50 - 16
50	21.0	9.2	11.2	26.0	16.0	18.0	18.0	60.0	HLT 50 - 20
70	8.4	11.5	13.8	20.0	11.0	11.0	18.5	47.0	HLT 70 - 8
70	10.5	11.5	13.8	20.0	11.0	11.0	18.5	47.0	HLT 70 - 10
70	13.0	11.5	13.8	20.0	10.0	12.0	18.5	47.0	HLT 70 - 12
70	15.0	11.5	13.8	20.0	14.0	15.0	18.5	55.0	HLT 70 - 14
70	17.0	11.5	13.8	22.0	14.0	16.0	18.5	56.0	HLT 70 - 16
70	21.0	11.5	13.8	24.0	16.0	18.0	18.5	63.0	HLT 70 - 20
95	8.4	12.8	15.6	23.0	12.0	13.0	21.0	53.0	HLT 95 - 8
95	10.5	12.8	15.6	23.0	12.0	13.0	21.0	53.0	HLT 95 - 10
95	13.0	12.8	15.6	23.0	12.0	13.0	21.0	53.0	HLT 95 - 12
95	15.0	12.8	15.6	23.0	14.0	15.0	22.0	58.0	HLT 95 - 14
95	17.0	12.8	15.6	23.0	14.0	16.0	22.0	59.0	HLT 95 - 16
95	21.0	12.8	15.6	26.0	16.0	16.0	22.0	63.0	HLT 95 - 20
120	8.4	14.8	17.8	26.0	13.0	14.0	23.0	60.0	HLT 120 - 8
120	10.5	14.8	17.8	26.0	13.0	14.0	23.0	60.0	HLT 120 - 10
120	13.0	14.8	17.8	26.0	13.0	14.0	23.0	60.0	HLT 120 - 12
120	15.0	14.8	17.8	26.0	13.0	14.0	23.0	60.0	HLT 120 - 14
120	17.0	14.8	17.8	26.0	16.0	16.0	23.0	64.0	HLT 120 - 16
120	21.0	14.8	17.8	26.0	16.0	20.0	23.0	68.0	HLT 120 - 20
150	8.4	16.0	19.6	28.5	16.0	16.0	27.0	70.0	HLT 150 - 8
150	10.5	16.0	19.6	28.5	16.0	16.0	27.0	70.0	HLT 150 - 10
150	13.0	16.0	19.6	28.5	16.0	16.0	27.0	70.0	HLT 150 - 12
150	15.0	16.0	19.6	28.5	16.0	16.0	27.0	70.0	HLT 150 - 14
150	17.0	16.0	19.6	28.5	16.0	16.0	27.0	70.0	HLT 150 - 16
150	21.0	16.0	19.6	28.5	16.0	16.0	27.0	70.0	HLT 150 - 20
185	10.5	18.0	22.0	32.0	17.0	19.0	32.0	80.0	HLT 185 - 10
185	13.0	18.0	22.0	32.0	17.0	19.0	32.0	80.0	HLT 185 - 12
185	15.0	18.0	22.0	32.0	17.0	19.0	32.0	80.0	HLT 185 - 14
185	17.0	18.0	22.0	32.0	17.0	19.0	32.0	80.0	HLT 185 - 16
185	21.0	18.0	22.0	32.0	17.0	19.0	32.0	80.0	HLT 185 - 20
240	10.5	22.0	26.0	38.0	20.0	21.0	39.0	94.0	HLT 240 - 10
240	13.0	22.0	26.0	38.0	20.0	21.0	39.0	94.0	HLT 240 - 12
240	15.0	22.0	26.0	38.0	20.0	21.0	39.0	94.0	HLT 240 - 14
240	17.0	22.0	26.0	38.0	20.0	21.0	39.0	94.0	HLT 240 - 16
240	21.0	22.0	26.0	38.0	20.0	21.0	39.0	94.0	HLT 240 - 20
300	10.5	24.0	28.7	42.0	22.0	23.0	42.0	102.0	HLT 300 - 10
300	13.0	24.0	28.7	42.0	22.0	23.0	42.0	102.0	HLT 300 - 12
300	15.0	24.0	28.7	42.0	22.0	23.0	42.0	102.0	HLT 300 - 14
300	17.0	24.0	28.7	42.0	22.0	23.0	42.0	102.0	HLT 300 - 16
300	21.0	24.0	28.7	42.0	22.0	23.0	42.0	102.0	HLT 300 - 20
300	BL	24.0	28.7	42.0	22.0	23.0	42.0	102.0	HLT 300 - BL
400	13.0	28.0	33.2	49.0	25.0	25.0	45.0	112.0	HLT 400 - 12
400	15.0	28.0	33.2	49.0	25.0	25.0	45.0	112.0	HLT 400 - 14
400	17.0	28.0	33.2	49.0	25.0	25.0	45.0	112.0	HLT 400 - 16
400	21.0	28.0	33.2	49.0	25.0	25.0	45.0	112.0	HLT 400 - 20
400	BL	28.0	33.2	49.0	25.0	25.0	45.0	112.0	HLT 400 - BL
500	15.0	30.0	36.0	53.0	27.0	27.0	50.0	121.0	HLT 500 - 14
500	17.0	30.0	36.0	53.0	27.0	27.0	50.0	121.0	HLT 500 - 16
500	21.0	30.0	36.0	53.0	27.0	27.0	50.0	121.0	HLT 500 - 20
500	BL	30.0	36.0	53.0	27.0	27.0	50.0	121.0	HLT 500 - BL
630	15.0	35.0	41.5	61.0	25.0	25.0	70.0	144.0	HLT 630 - 14
630	17.0	35.0	41.5	61.0	25.0	25.0	70.0	144.0	HLT 630 - 16
630	21.0	35.0	41.5	61.0	25.0	25.0	70.0	144.0	HLT 630 - 20
630	BL	35.0	41.5	61.0	25.0	25.0	70.0	144.0	HLT 630 - BL
800	BL	39.0	46.3	67.0			78.0	170.0	HLT 800 - BL
1000	BL	43.0	53.8	76.0			90.0	200.0	HLT 1000 - BL
