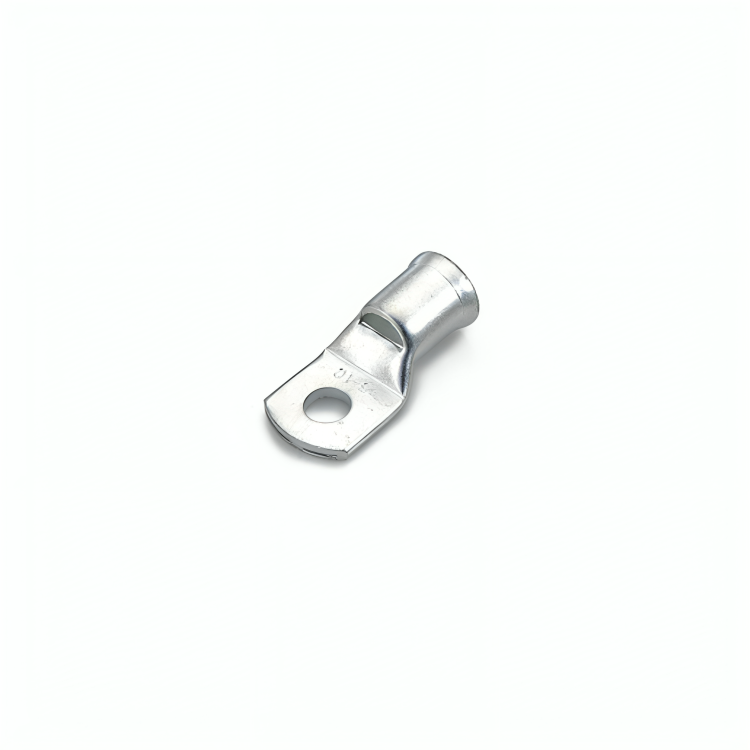

Crimping Type Copper Tubular Cable Terminal Ends - Bell Mouth

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

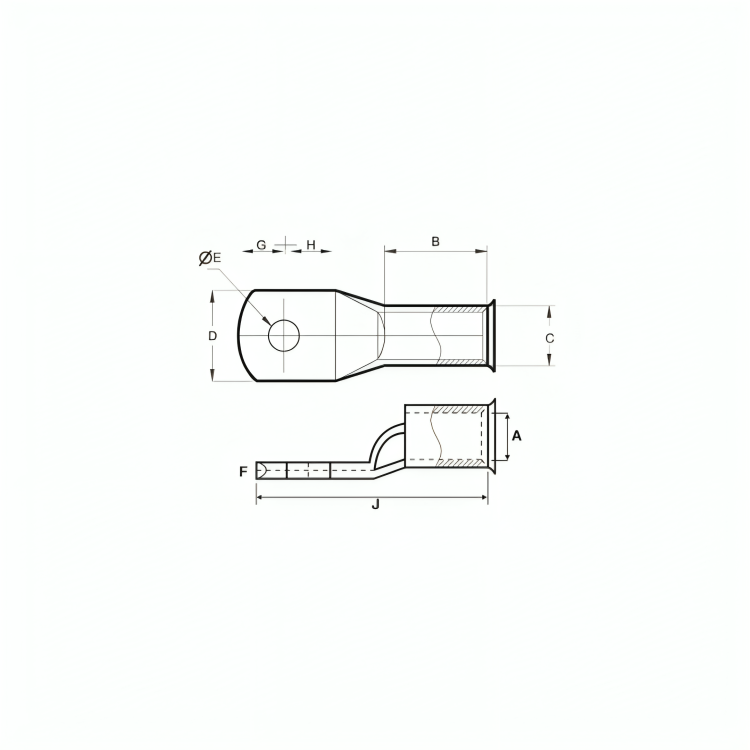

Cable mm²	Stud Hole E	Dimensions									Product Code
Cable mm²	Stud Hole E	A	C	D	F	G	H	K	B	J	Product Code
10	5.2	4.5	6.2	11	1.2	6	7	3	10	26	BHT 10-5
10	6.5	4.5	6.2	11	1.2	6	7	3	10	26	BHT 10-6
10	8.4	4.5	6.2	12	1.2	6	9	3	10	28	BHT 10-8
10	10.5	4.5	6.8	15	1.5	8	11	3	11	33	BHT 10-10
10	13	4.5	6.8	18	1	9	11	5	11	36	BHT 10-12
16	5.2	5.4	7.1	12	1.4	7	7	4	12	30	BHT 16-5
16	6.5	5.4	7.1	12	14	7	7	4	12	30	BHT 16-6
16	8.4	5.4	7.1	12	14	7	7	4	12	30	BHT 16-8
16	10.5	5.5	7.6	15	1.7	8	12	4	12	36	BHT 16-10
16	13	5.5	7.6	17	1.5	11	13	4	12	39	BHT 16-13
16	17	5.5	7.6	21	1	13	14	5	12	44	BHT 16-16
20	8.4	6	7.7	12	1.7	7	7	4	12	32	BHT 20-8
25	6.5	6.8	8.8	13	2	7	7	4	12	30	BHT 25-6
25	8.4	6.8	8.8	13	2	7	7	4	12	30	BHT 25-8
25	10.5	6.8	8.8	15	1.5	10	11	4	13	38	BHT 25-10
25	13	6.8	9.2	17	2	10	12	4	15	41	BHT 25-12
25	17	6.8	9.2	21	1.5	13	14	5	15	47	BHT 25-16
35	6.5	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-6
35	8.4	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-8
35	10.5	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-10
35	13	8.2	10.6	15.3	2	10	12	5	13.5	41	BHT 35-12
35	17	8.2	10.6	22	1.5	13	14	5	15	47	BHT 35-16
50	6.5	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-6
50	8.4	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-8
50	10.5	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-10
50	13	9.5	12.4	20	2.6	10	12	6	17	45	BHT 50-13
50	14.5	9.5	12.4	22	2.2	15	15	6	18	54	BHT 50-14
50	17	9.5	12.4	22	2.2	15	15	6	18	54	BHT 50-16
50	21	9.5	12.4	26	1.8	16	18	6	18	60	BHT 50-20
70	8.4	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-8
70	10.5	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-10
70	13	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-12
70	14.5	11.3	14.6	22	3.4	14	15	7	18.5	55	BHT 70-14
70	17	11.3	14.6	26	2.5	14	16	7	18.5	56	BHT 70-16
70	21	11.3	14.6	28	2.3	16	18	9	18.5	63	BHT 70-20
95	8.4	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-8
95	10.5	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-10
95	13	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-12
95	14.5	13.5	17.4	25	3.9	14	15	7	22	55	BHT 95-14
95	17	13.5	17.4	25	3.9	14	16	7	22	56	BHT 95-16
95	21	13.5	17.4	28	3.5	15	16	10	22	63	BHT 95-20
120	8.4	15	19.4	28	4.4	13	14	9	23	60	BHT 120-8
120	10.5	15	19.4	28	4.4	13	14	9	23	60	BHT 120-10
120	13	15	19.4	28	4.4	13	14	9	23	60	BHT 120-12
120	14.5	15	19.4	28	4.4	13	14	9	23	60	BHT 120-14
120	17	15	19.4	28	4.4	16	16	10	23	64	BHT 120-16
120	21	15	19.4	28	4.4	16	20	10	23	68	BHT 120-20
150	8.4	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-8
150	10.5	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-10
150	13	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-12
150	14.7	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-14
150	17	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-16
150	21	16.5	21.2	30	4.7	16	16	12	27	73	BHT 150-20
185	10.5	18.5	23.5	34	5	17	19	12	32	80	BHT 185-10
185	13	18.5	23.5	34	5	17	19	12	32	80	BHT 185-12
185	14.7	18.5	23.5	34	5	17	19	12	32	80	BHT 185-14
185	17	18.5	23.5	34	5	17	19	12	32	80	BHT 185-16
185	21	18.5	23.5	34	5	17	19	12	32	80	BHT 185-20
240	10.5	21	26.5	38	5.5	20	21	14	39	94	BHT 240-10
240	13	21	26.5	38	5.5	20	21	14	39	94	BHT 240-12
240	14.5	21	26.5	38	5.5	20	21	14	39	94	BHT 240-14
240	17	21	26.5	38	5.5	20	21	14	39	94	BHT 240-16
240	21	21	26.5	38	5.5	20	21	14	39	94	BHT 240-20
