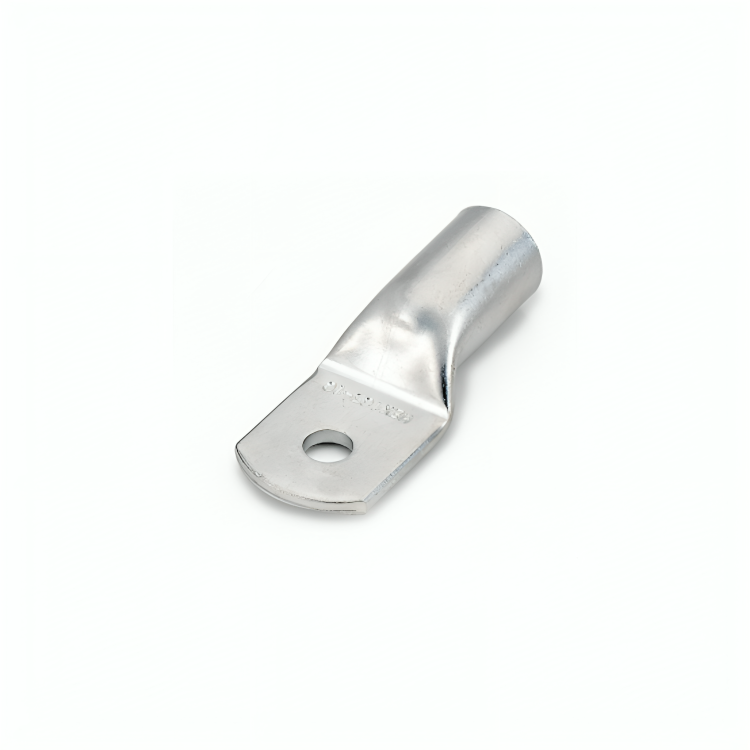

Tinned Copper Tubular Cable Lugs (Without Inspection Hole)

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

Cable mm²	Stud Hole E	Dimensions								Product Code

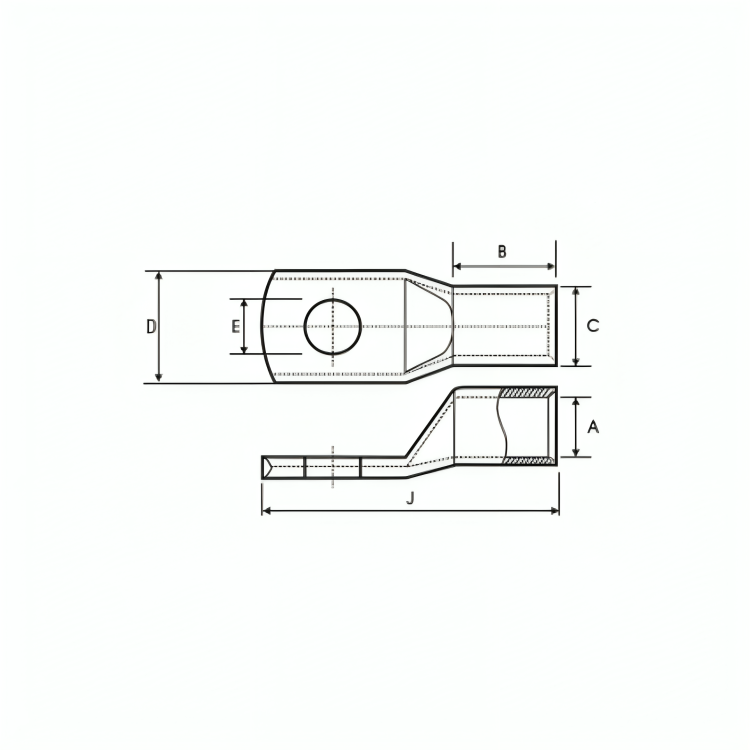

Cable mm²	Stud Hole E	A	C	D	B	K	G	H	J	Product Code
2.5	5.3	2.4	4	10	8	3	5	6	22	HNL 2.5-5
4	5.3	3.1	4.8	10	8	3	5	6	22	HNL 4-5
6	5.3	3.8	5.5	10	9	3	5	6	23.5	HNL 6-5
6	6.5	3.8	5.5	10	9	3	6	5	23.5	HNL 6-6
6	8.5	3.8	5.5	12	9	3	7	8	28	HNL 6-8
6	10.5	3.8	6	14.5	9	3	8	14	33	HNL 6-10
6	13	3.8	6	17	9	3	12	13	36	HNL 6-12
10	5.3	4.5	6.2	10	10	3	6	7	26	HNL 10-5
10	6.5	4.5	6.2	10.5	10	3	6	7	26.5	HNL 10-6
10	8.5	4.5	6.2	12	10	3	7	9	28	HNL 10-8
10	10.5	4.5	7	15	10	3	8	13	34	HNL 10-10
10	13	4.5	7	17	10	3	12	13	40	HNL 10-12
16	5.3	5.4	7.1	10.5	13	4	6.5	7	31	HNL 16-5
16	6.5	5.4	7.1	10.5	13	4	6.5	7	31	HNL 16-6
16	8.5	5.4	7.1	12	13	4	7	9	32	HNL 16-8
16	10.5	5.5	7.6	15	13	4	8	13	38	HNL 16-10
16	13	5.5	7.6	17	13	4	12	13	42	HNL 16-12
25	5.3	6.8	8.8	13	13	5	6.5	7	32	HNL 25-5
25	6.5	6.8	8.8	13	13	5	6.5	7	32	HNL 25-6
25	8.5	6.8	8.8	13	13	5	6	9	32	HNL 25-8
25	10.5	6.8	8.8	15	13	5	8	13	38	HNL 25-10
25	13	6.8	9.5	18	13	5	11	14	42	HNL 25-12
25	15	6.8	9.5	21	13	5	13	14	45	HNL 25-14
35	6.5	8.2	10.6	15	15	7	7	9	37.5	HNL 35-6
35	8.5	8.2	10.6	15	15	7	9	11	42	HNL 35-8
35	10.5	8.2	10.6	15	16	8	9	15	48	HNL 35-10
35	13	8.2	10.6	17	15	8	14	14	53	HNL 35-12
35	15	8.2	10.6	20	15	8	14	14	53	HNL 35-12
50	6.5	9.5	12.4	17.5	17	7	9	11	44	HNL 50-6
50	8.5	9.5	12.4	17.5	17	7	9	11	44	HNL 50-8
50	10.5	9.5	12.4	17.5	17	8	12	12	49	HNL 50-10
50	13	9.5	12.4	20.5	17	8	14.5	14	53	HNL 50-12
50	15	9.5	12.4	23	17	8	14.5	15	54	HNL 50-14
70	6.5	11.2	14.7	21	21	7	10	10	48	HNL 70-6
70	8.5	11.2	14.7	21	21	7	10	10	48	HNL 70-8
70	10.5	11.2	14.7	21	21	8	12	12	51.5	HNL 70-10
70	13	11.2	14.7	21	21	8	13	13	55	HNL 70-12
70	15	11.2	14.7	22	21	10	15	17	61	HNL 70-14
95	8.5	13.5	17.4	25	23	8	12	12	55	HNL 95-8
95	10.5	13.5	17.4	25	24	8	12	12	55	HNL 95-10
95	13	13.5	17.4	25	24	8	13	13	59	HNL 95-12
95	15	13.5	17.4	25	24	10	15	17	67	HNL 95-14
95	17	13.5	17.4	26	24	10	16	16	67	HNL 95-16
95	21	13.5	17.4	28	24	10	16	17	68	HNL 95-20
120	8.5	15	19.4	28	24				65	HNL 120-8
120	10.5	15	19.4	28	24				65	HNL 120-10
120	13	15	19.4	28	24				65	HNL 120-12
120	15	15	19.4	28	24				68	HNL 120-14
120	17	15	19.4	28	24				68	HNL 120-16
120	21	15	19.4	28	24				68	HNL 120-20
150	8.5	16.5	21.2	30	30				69	HNL 150-8
150	10.5	16.5	21.2	30	30				69	HNL 150-10
150	13	16.5	21.2	30	30				72	HNL 150-12
150	15	16.5	21.2	30	30				72	HNL 150-14
150	17	16.5	21.2	30	30				72	HNL 150-16
150	21	16.5	21.2	30	30				72	HNL 150-20
185	10.5	19	23.5	34	30				82	HNL 185-10
185	13	19	23.5	34	30				82	HNL 185-12
185	15	19	23.5	34	30				82	HNL 185-14
185	17	19	23.5	34	30				82	HNL 185-16
185	21	19	23.5	34	30				89	HNL 185-20
240	10.5	21	26.5	38	35				94	HNL 240-10
240	13	21	26.5	38	35				94	HNL 240-12
240	15	21	26.5	38	35				94	HNL 240-14
240	17	21	26.5	38	35				94	HNL 240-16
300	13	23.5	30	43	46				111	HNL 300-12
300	15	23.5	30	43	46				111	HNL 300-14
300	17	23.5	30	43	46				111	HNL 300-16
300	21	23.5	30	43	46				111	HNL 300-20
400	17	27	36.5	50	49				114	HNL 400-16
400	21	27	36.5	50	49				114	HNL 400-20
500	17	30	39	56	58				134	HNL 500-16
500	21	30	39	56	58				134	HNL 500-20
630	17	35	41.5	61	70				144	HNL 630-16
630	21	35	41.5	61	70				144	HNL 630-20
630	10.5	35	41.5	61	70				144	HNL 630-4 E10
