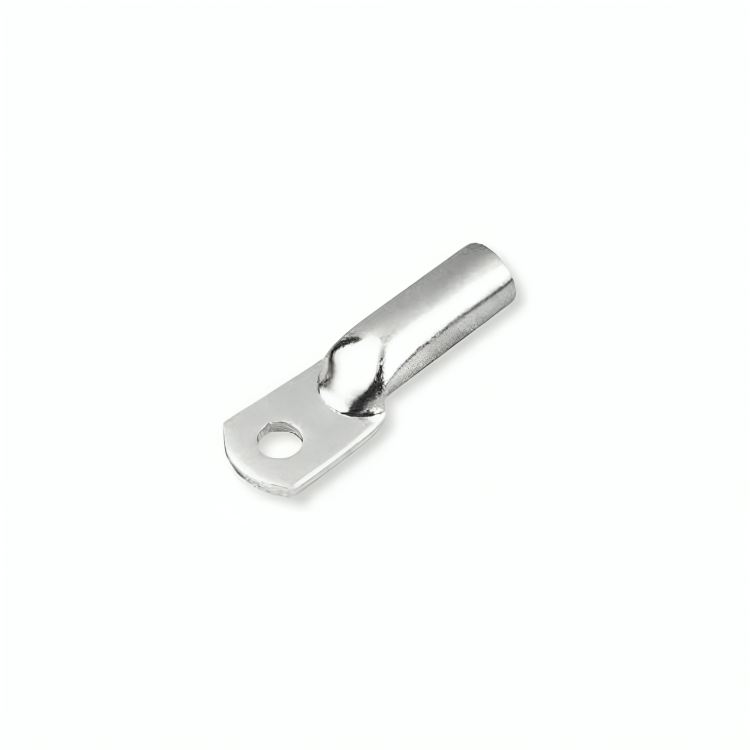

Tinned Copper Forged Cable Lugs

Tinned Copper Forged Cable Lugs

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

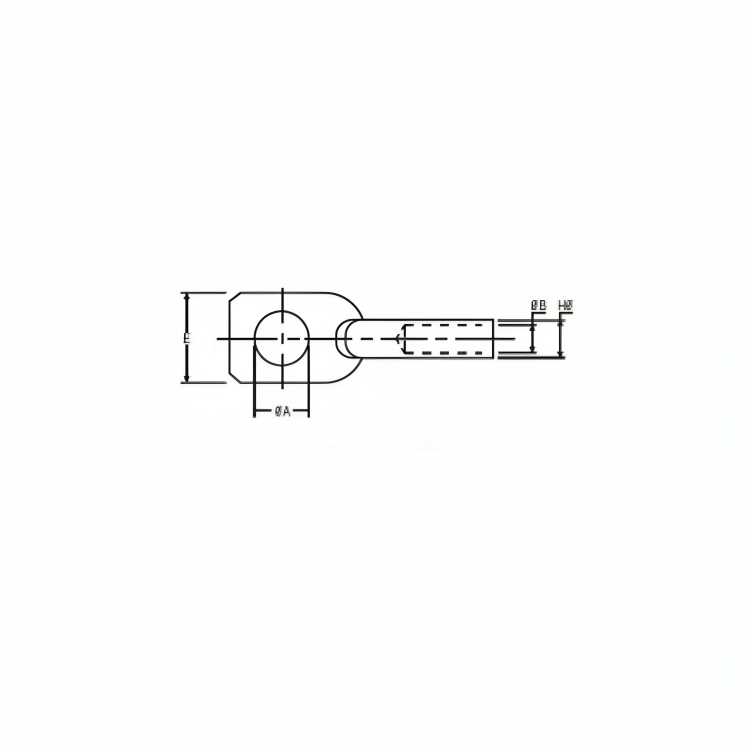

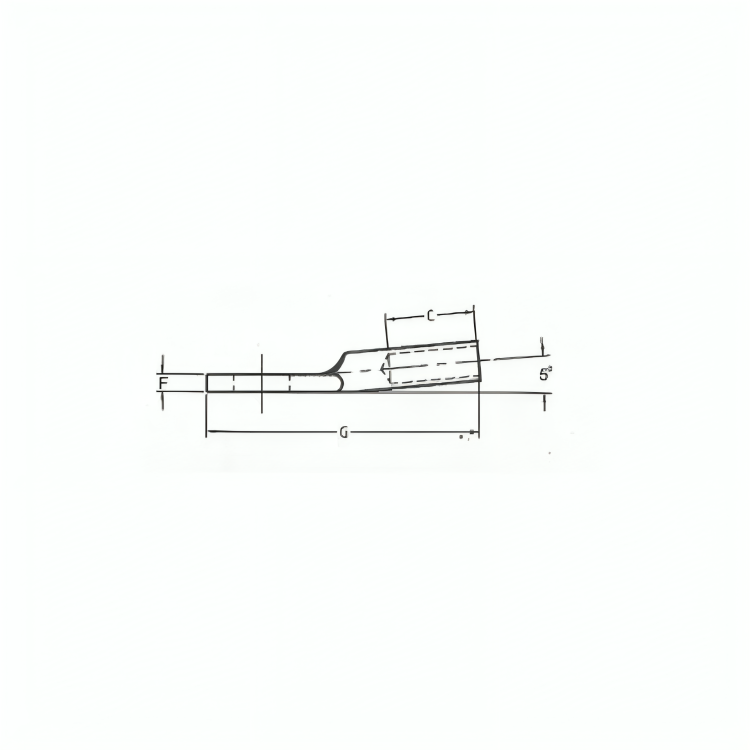

Cable mm² Dimensions in mm +- 5% Product Code
A B C E F G H
16 8.3 5.5 30 22 4.5 80 11.5 HCFL 16 - 8
16 10.3 5.5 30 22 4.5 80 11.5 HCFL 16 - 10
16 12.3 5.5 30 22 4.5 80 11.5 HCFL 16 - 12
16 16.3 5.5 30 25 4 85 11.5 HCFL 16 - 16
25 10.3 7 30 22 4.5 80 11.5 HCFL 25 - 10
25 12.3 7 30 22 4.5 80 11.5 HCFL 25 - 12
25 16.3 7 30 25 4 85 11.5 HCFL 25 - 16
35 10.3 8.5 31 22 4.5 80 11.5 HCFL 35 - 10
35 12.3 8.5 31 22 4.5 80 11.5 HCFL 35 - 12
50 10.3 9.5 33 25 5 80 12.7 HCFL 50 - 10
50 12.3 9.5 33 25 5 80 12.7 HCFL 50 - 12
50 16.3 9.5 33 28 4.5 90 12.7 HCFL 50 - 16
50 18.3 9.5 33 28 4.5 90 12.7 HCFL 50 - 18
70 10.3 11 36 27 6 90 14.5 HCFL 70 - 10
70 12.3 11 36 27 6 90 14.5 HCFL 70 - 12
70 20.3 11 36 30 5.5 90 14.5 HCFL 70 - 20
95 10.3 13.5 40 36 6.5 100 17.3 HCFL 95 - 10
95 16.3 13.5 40 36 6.5 100 17.3 HCFL 95 - 16
95 18.3 13.5 40 36 6.5 100 17.3 HCFL 95 - 18
95 20.3 13.5 40 36 6.5 100 17.3 HCFL 95 - 20

Description

Material: E-copper
Finish: Electro Tinned
