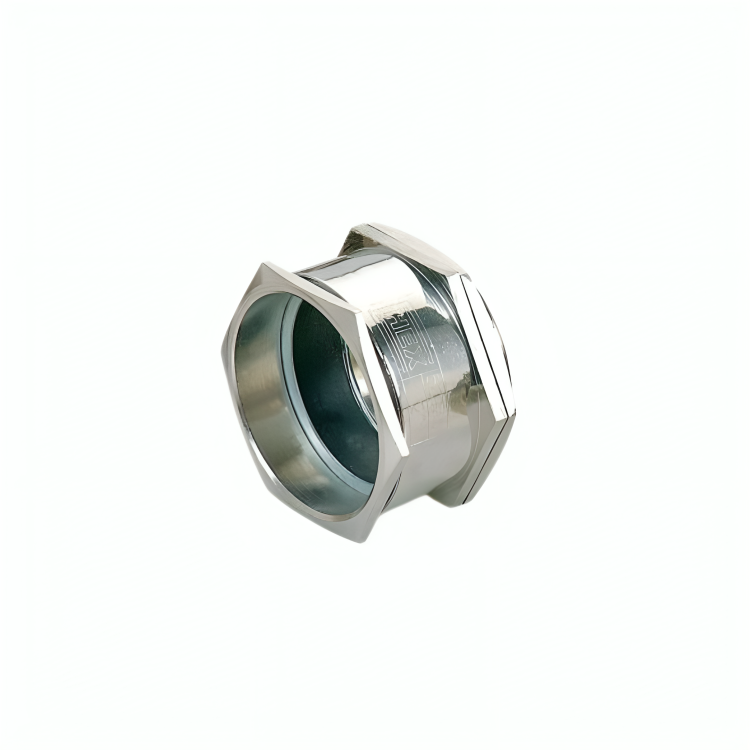

Single Compression Type Brass Cable Gland

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

Max. O.D.	Cable Dimn. Overall Dia.		Nipple Entry Thread		Cable Gland Dimensions							Prod. Code

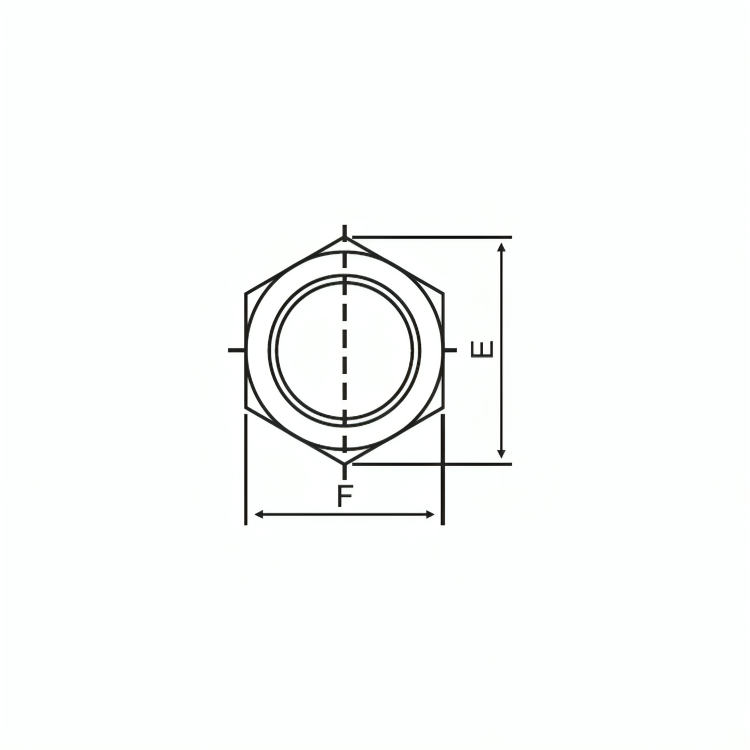

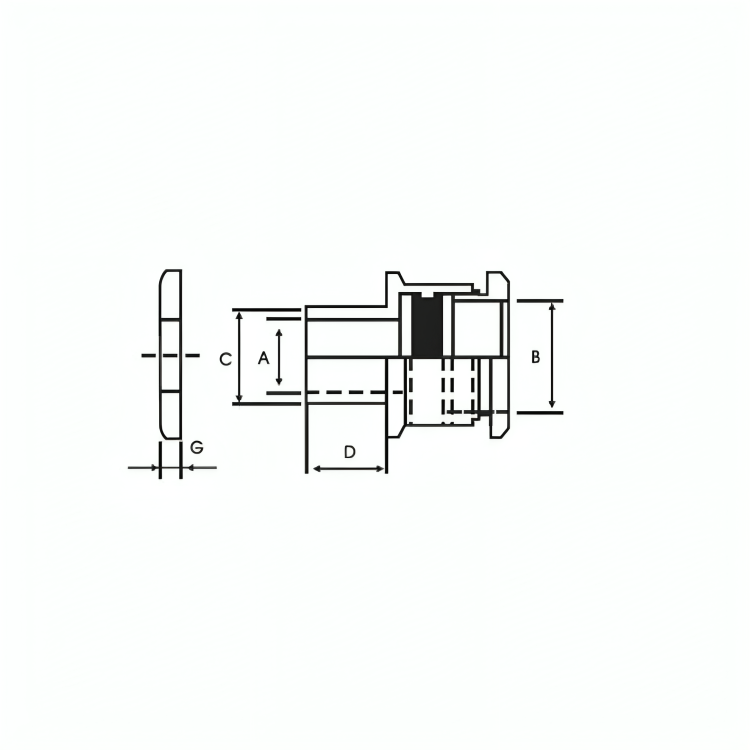

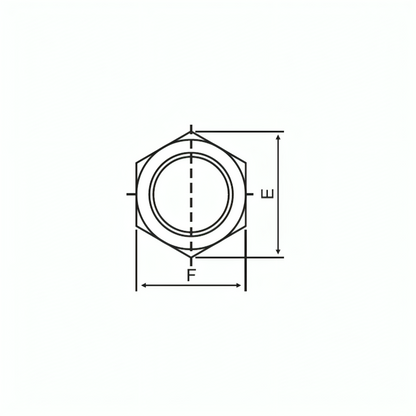

	Over	Under	Inch.	mm.	A	B	C	D	E	F	G
	14	12	10	3/8"	10	11.5	12.5	15.5	7.5	20.5	18		2.5	HC 3/8''
	16	15	10	1/2''	12	12	15	15.5	8.5	25	22		3	HC 1/2''
	16	16	10	5/8''	16	14.5	16.5	18.5	8	24	21		2.5	HC 5/8''
18	16.5	14	3/4''	19	14.5	17.5	19	8.5	26	23	2.5	HC 3/4''
20	17.5	16.5	7/8''	22	14.5	20	18.5	8.5	29	25	3	HC 7/8''
23	20.5	18.5	1''	25	20.5	23	25	9	33	29	3	HC 1''
30	27.5	22.5	1-1/8''	28	24	28	28.5	10.5	40	35	3.5	HC 1-1/8''
30	27.5	26.5	1-1/4''	32	27	32	31.5	11	46	40	3.5	HC 1-1/4''
33	33	29.6	1-3/8''	35	29.5	35.5	34.5	11	50	44	4	HC 1-3/8''
38	37	33.5	1-1/2''	38	33	39.5	38	11.5	54	47	4	HC 1-1/2''
45	40	37.5	1-3/4''	45	40	44.5	44	11.5	62	54	4.5	HC 1-3/4''
49	43	43.5	2''	50	45	51.5	50	13	69	60	5	HC 2''
55	52	49	2-1/4''	57	51.5	58	56.5	13	78	68	5	HC 2-1/4''
61	56	64.5	2-1/2''	63	57.5	62.5	63	4	82	72	5	HC 2-1/2''
67	67	61.5	2-3/4''	70	63.5	69	69	15	90	80	5	HC 2-3/4''
73	73	66.5	3''	75	68	75	75	16	99	87	5.5	HC 3''
80	74	72.5	3-1/4''	82	75	81.5	82	16	105	92	6	HC 3-1/4''
83	83	80.5	3-1/2''	88	81.5	86.5	88	16	115	102	6	HC 3-1/2''
95	95	84	4''	100	92	101	100	17	126	110	6.5	HC 4''
105	108	100	4-1/2''	112	107	109	105	20	148	129.5	7.5	HC 4-1/2''
