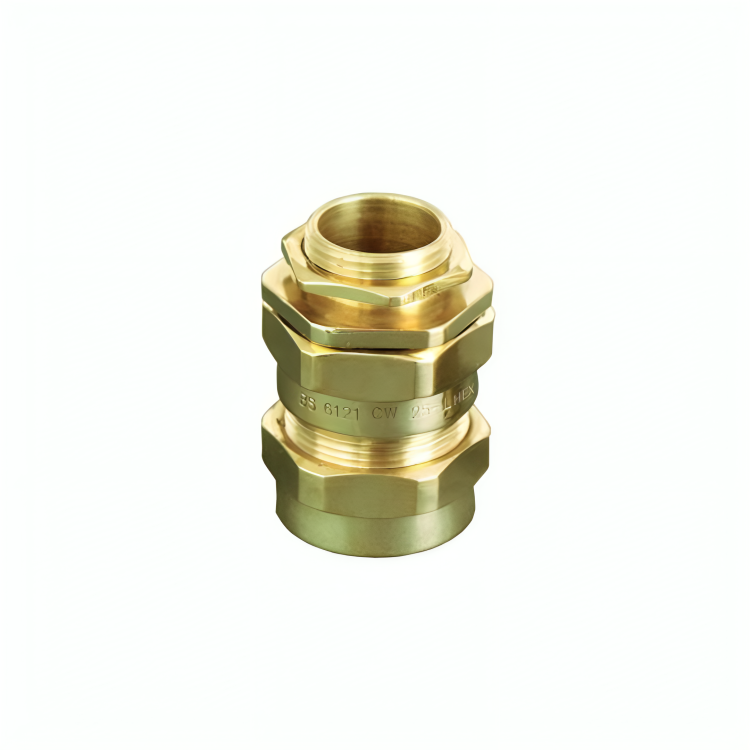

CW Gland (4 Part)

CW Gland (4 Part)

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

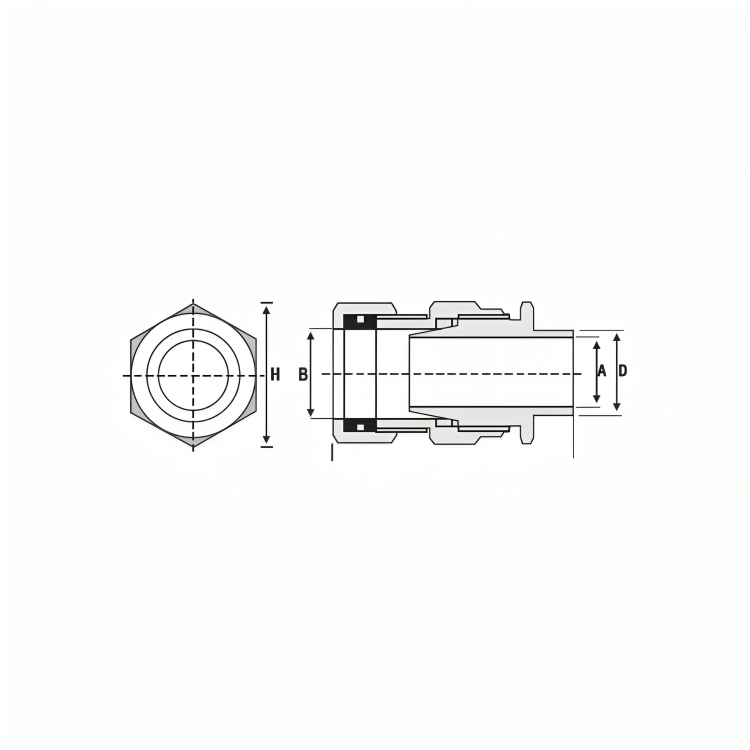

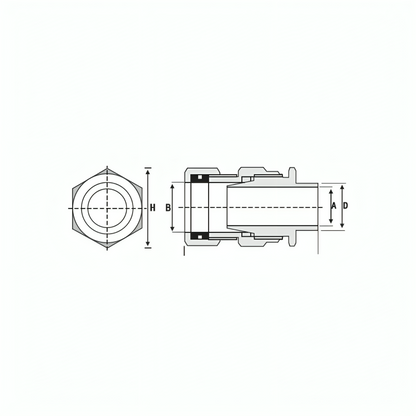

Size Cable Dimensions Accommodate Gland Dimensions Product Code
Under Armour Dia A Max. Overall Dia. B Max. Armour Wire Dia C ISO Entry Thread Approx length from shoulder Hexagon Size
mm mm mm Dia Length Across flat Across corners
D mm E mm F mm G mm H mm
16 8.6 13.50 0.90 16 10 40.00 20.00 23.00 HCW 16
20 S 12.50 17.00 0.90 / 1.25 20 10 47.00 22.00 29.00 HCW 20 S
20 14.40 20.50 0.90 / 1.25 20 10 47.00 26.00 29.00 HCW 20
25 S 17.80 23.80 1.25 / 1.60 25 10 50.00 31.00 34.00 HCW 25 S
25 20.40 27.00 1.25 / 1.60 25 10 50.00 34.00 38.50 HCW 25
32 26.50 33.00 1.60 / 2.00 32 10 55.00 41.50 46.50 HCW 32
40 S 31.00 37.00 1.60 / 2.00 40 10 60.00 45.00 50.00 HCW 40 S
40 32.50 40.80 1.60 / 2.00 40 15 60.00 49.00 54.00 HCW 40
50 S 37.80 45.00 2.00 / 2.50 50 15 65.00 51.00 64.00 HCW 50 S
50 44.00 51.50 2.00 / 2.50 50 15 65.00 62.30 69.50 HCW 50
63 S 50.50 60.50 2.50 63 15 70.00 70.00 78.00 HCW 63 S
63 56.50 65.50 2.50 63 15 70.00 76.30 85.00 HCW 63
75 S 62.50 72.00 2.50 75 15 75.00 85.00 95.00 HCW 75 S
75 67.50 78.50 2.50 / 3.15 75 15 75.00 91.00 112.00 HCW 75
90 80.00 90.00 3.15 90 20 90.00 103.00 115.00 HCW 90
