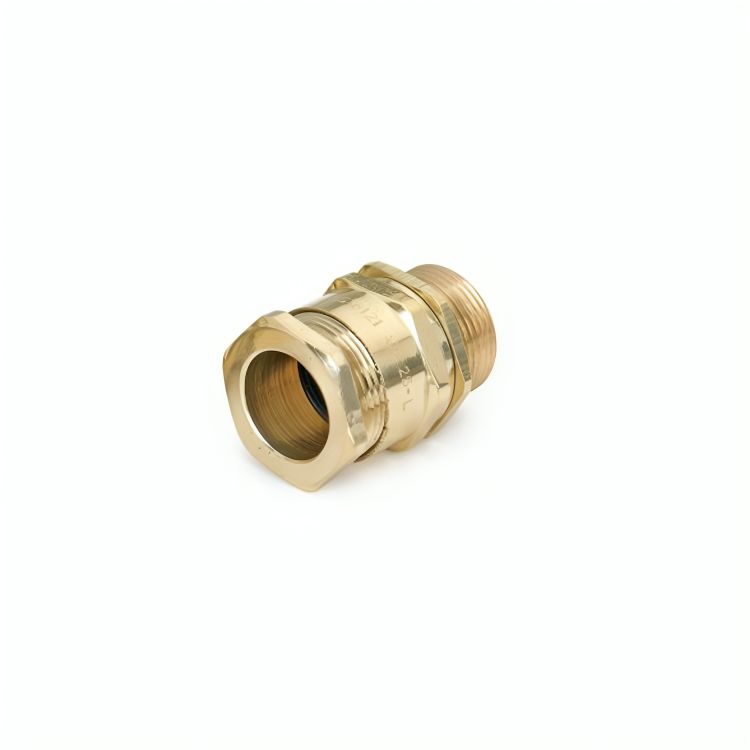

A1 / A2 Cable Gland

A1 / A2 Cable Gland

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

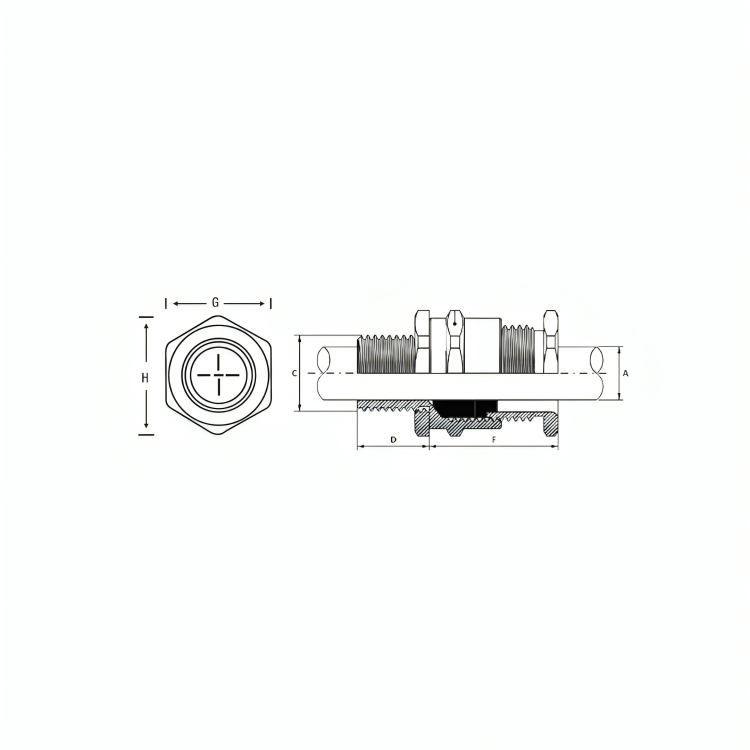

Size Cable Dimensions Accommodate Gland Dimensions Product Code
Overall Diameter A ISO Entry Thread Approx length from shoulder Hexagon Size
Min. mm Max. mm Dia. Length Across flat Across corners
D mm E mm F mm G mm H mm
16 4.50 8.50 16 10 20.00 20.00 23.00 HA2 16
20 S 8.00 11.50 20 10 22.00 22.00 25.00 HA2 20S
20 11.00 14.00 20 10 22.00 22.00 25.00 HA2 20
25 S 14.00 17.50 20 10 25.00 30.00 34.00 HA2 25 S
25 17.50 20.40 25 10 26.00 30.00 34.00 HA2 25
32 20.00 26.00 32 10 30.00 36.00 40.00 HA2 32
40 S 26.00 30.00 40 10 31.00 46.00 52.00 HA2 40 S
40 30.00 33.00 40 15 31.00 46.00 52.00 HA2 40
50 S 33.00 38.00 50 15 33.00 55.00 61.00 HA2 50 S
50 38.00 44.00 50 15 33.00 56.00 62.00 HA2 50
63 S 44.00 50.50 63 15 35.00 70.00 77.50 HA2 63 S
63 50.00 56.00 63 15 35.00 70.00 77.50 HA2 63
75 S 56.50 62.00 75 15 35.00 80.00 89.00 HA2 75 S
75 62.00 68.00 75 15 40.00 80.00 89.00 HA2 75
90 68.00 78.00 90 20 45.00 100.00 112.00 HA2 90
100 78.00 88.00 100 20 45.00 112.00 125.00 HA2 100
