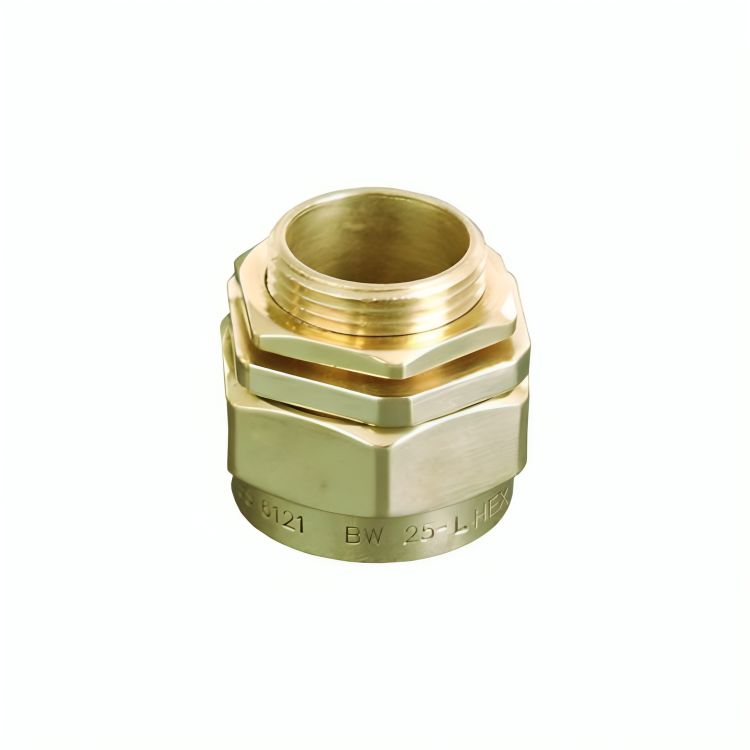

BW Cable Gland (3 Part)

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

Size	Cable Dimensions Accommodate			Gland Dimensions				Product Code
	Under Armour Dia A Max.	Overall Dia. B Max.	ISO Entry Thread		Approx length from shoulder	Hexagon Size
	mm	mm	Dia	Length	Approx length from shoulder	Across flat	Across corners
	mm	mm	D mm	E mm	F mm	G mm	H mm
16 S	8.00	12.00	M16	9.00	20.00	20.00	22.00	HBW - 16 S
16 L	8.60	13.50	M16	9.00	20.00	20.00	22.00	HBW - 16 L
20 S	12.50	17.00	M20	9.00	20.00	22.00	24.00	HBW - 20 S
20 L	14.30	20.00	M20	9.00	20.00	24.00	26.50	HBW - 20 L
25 S	19.00	23.25	M25	9.00	22.00	30.50	33.50	HBW - 25 S
25 L	20.40	27.00	M25	9.00	22.00	32.00	35.50	HBW - 25 L
32 S	27.00	28.50	M32	9.00	25.00	40.00	44.00	HBW - 32 S
32 L	27.50	33.50	M32	9.00	25.00	40.00	44.00	HBW - 32 L
40 S	31.50	37.50	M40	13.00	25.00	44.50	49.00	HBW - 40 S
40 L	33.00	41.50	M40	13.00	25.00	48.00	53.50	HBW - 40 L
50 S	40.00	48.00	M50	13.00	28.00	56.50	63.00	HBW - 50 S
50 L	44.50	54.00	M50	13.00	30.00	60.50	67.50	HBW - 50 L
63 S	51.00	60.50	M63	13.00	33.00	69.50	77.50	HBW - 63 S
63 L	56.00	65.00	M63	13.00	33.00	74.50	83.50	HBW - 63 L
75 S	63.00	72.00	M75	13.00	40.00	83.00	93.00	HBW - 75 S
75 L	67.00	78.50	M75	14.00	40.00	89.50	99.50	HBW - 75 L
90 S	75.00	85.00	M90	17.50	48.00	100.00	110.00	HBW - 90 S
90 L	78.40	88.50	M90	17.50	48.00	102.00	115.00	HBW - 90 L
