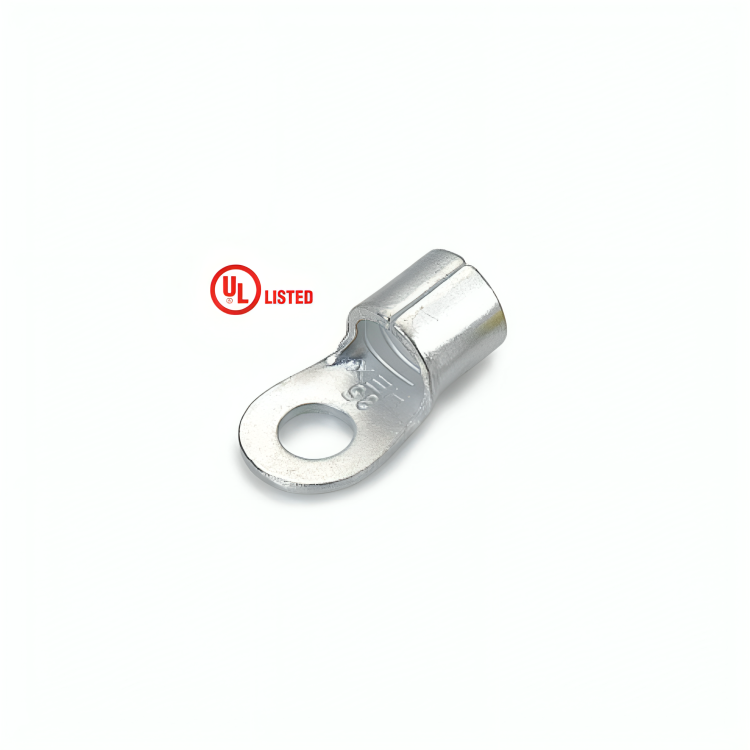

Ring Type Tinned Copper Cable Terminal Ends (Non Insulated)
Ring Type Tinned Copper Cable Terminal Ends (Non Insulated)
Regular price
Prices will be recieved with Quotation
Regular price
Sale price
Prices will be recieved with Quotation
Unit price
/
per
Product Codes or Sizes
Product Codes or Sizes
No table available for this product.

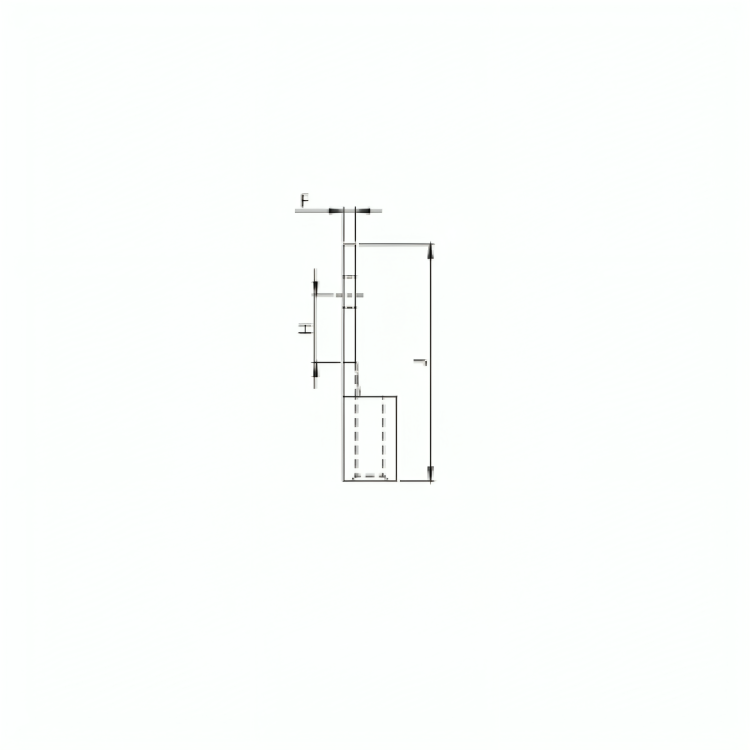

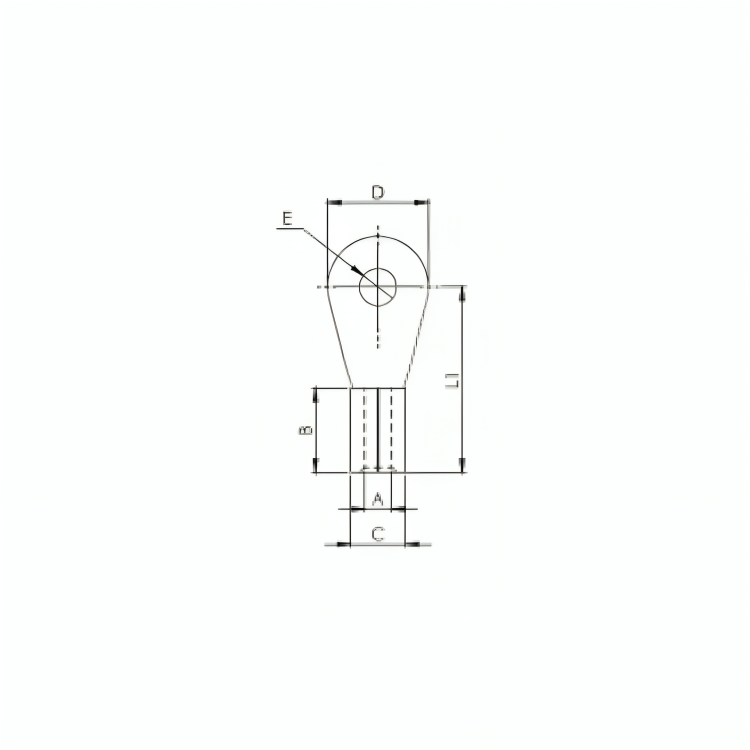

| Cable mm² | Stud Hole E | Dimensions | Non Insulated Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | F | B | H | L-1 | J | |||
| 50 | 8.2 | 10.5 | 14.1 | 18 | 1.8 | 16 | 12 | 34 | 43 | HR 7136 |
| 50 | 10.2 | 10.5 | 14.1 | 24 | 1.8 | 16 | 14 | 36 | 48 | HR 7138 |
| 50 | 12.7 | 10.5 | 14.1 | 24 | 1.8 | 16 | 14 | 36 | 48 | HR 7042 |
| 50 | 16.2 | 10.5 | 14.1 | 32 | 1.8 | 16 | 15 | 38 | 54 | HR 7139 |
| 70 | 10.2 | 12 | 16 | 22 | 2 | 18 | 11 | 36 | 47 | HR 7140 |
| 70 | 12.7 | 12 | 16 | 22 | 2 | 18 | 11 | 36 | 47 | HR 7043 |
| 70 | 16.2 | 12 | 16 | 28 | 2 | 18 | 16 | 40 | 54 | HR 7142 |
| 95 | 10.2 | 13.5 | 18.1 | 24 | 2.3 | 20 | 12 | 38 | 50 | HR 7144 |
| 95 | 12.7 | 13.5 | 18.1 | 24 | 2.3 | 20 | 12 | 38 | 50 | HR 7044 |
| 95 | 16.2 | 13.5 | 18.1 | 28 | 2.3 | 20 | 17 | 44 | 58 | HR 7145 |
| 120 | 12.7 | 15 | 20.2 | 26 | 2.6 | 22 | 7 | 39 | 52 | HR 7146 |
| 120 | 20.3 | 15 | 20.2 | 40 | 2.6 | 22 | 20 | 52 | 72 | HR 7148 |
| 150 | 16.2 | 16.5 | 23.7 | 40 | 3.6 | 24 | 20 | 54 | 74 | HR 7150 |
| 150 | 20.3 | 16.5 | 23.7 | 40 | 3.6 | 24 | 20 | 54 | 74 | HR 7046 |
Description
Description
No table available for this product.
Specification: E. C. Grade 99. 9% ISCS
