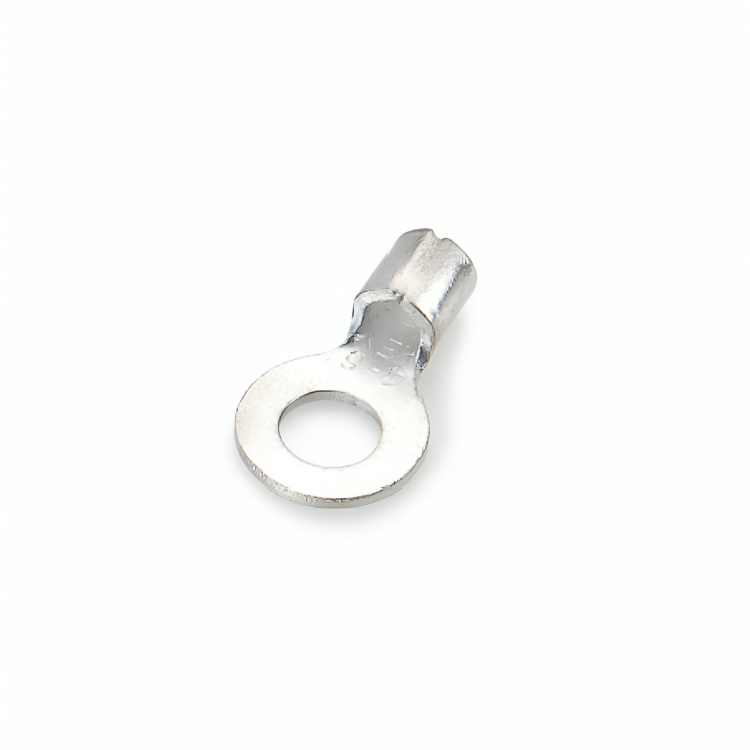

Ring Type Tinned Copper Cable Terminal Ends

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

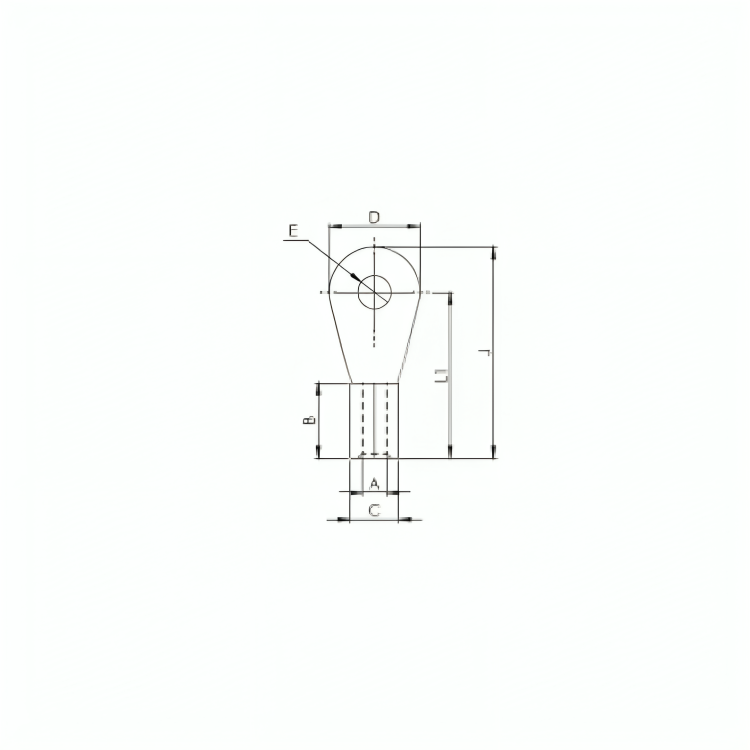

Cable mm²	Stud Hole E	Dimensions								Non Insulated Product Code	Dimensions			Insulated Product Code

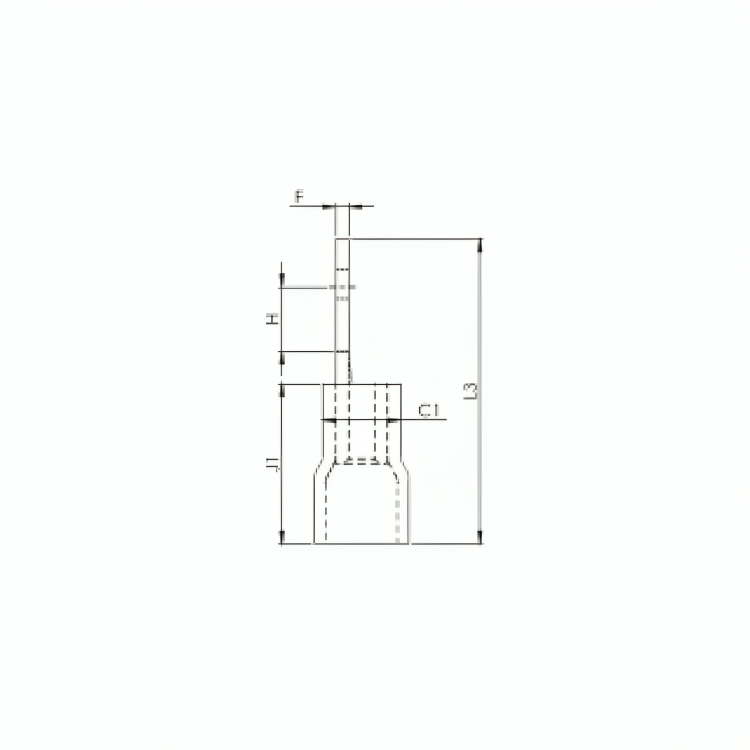

Cable mm²	Stud Hole E	A	C	D	F	B	H	J	L-1	Non Insulated Product Code	C-1	J-1	L-3	Insulated Product Code
1.5	2.2	1.6	3.2	6	0.8	5	4	11	14	HR 7103	10	16	4.8	HRI 7052
1.5	2.6	1.6	3.2	6	0.8	5	4	11	14	HR 7000	10	16	4.8	HRI 7053
1.5	3.2	1.6	3.2	6	0.8	5	4	11	14	HR 7001	10	16	4.8	HRI 7054
1.5	3.7	1.6	3.2	6	0.8	5	4	11	14	HR 7002	10	16	4.8	HRI 7055
1.5	4.2	1.6	3.2	6	0.8	5	4	11	14	HR 7003	10	16	4.8	HRI 7056
1.5	5.2	1.6	3.2	8	0.8	5	5	12	16	HR 7005	10	17	4.8	HRI 7062
1.5	6.4	1.6	3.2	10	0.8	5	6	13	18	HR 7007	10	18	4.8	HRI 7066
2.5	3.2	2.3	3.9	6.5	0.8	5	3.5	9.5	12.7	HR 7107	10	14.5	5.5	HRI 7068
2.5	3.7	2.3	3.9	6.5	0.8	5	3.5	9.5	12.7	HR 7008	10	14.5	5.5	HRI 7069
2.5	4.2	2.3	3.9	8	0.8	5	5	12	16	HR 7009	10	17	5.5	HRI 7071
2.5	5.2	2.3	3.9	8	0.8	5	5	12	16	HR 7010	10	17	5.5	HRI 7072
2.5	6.4	2.3	3.9	10	0.8	5	7	13	18	HR 7011	10	18	5.5	HRI 7074
2.5	8.2	2.3	3.9	12	0.8	5	9	16	22	HR 7013	10	21	5.5	HRI 7077
2.5	8.2	2.3	3.9	16	0.8	5	10	17	25	HR 7014	10	22	5.5	HRI 7079
2.5	10.2	2.3	3.9	16	0.8	5	10	17	25	HR 7015	10	22	5.5	HRI 7080
2.5	12.7	2.3	3.9	18	0.8	5	14	20	29	HR 7047	10	25	5.5	HRI 7082
4-6	4.2	3.5	5.5	10	1	6	5	14	19	HR 7112	14	22	7.1	HRI 7085
4-6	5.2	3.5	5.5	10	1	6	5	14	19	HR 7016	14	22	7.1	HRI 7086
4-6	6.4	3.5	5.5	12	1	6	6	14	20	HR 7017	14	22	7.1	HRI 7089
4-6	8.2	3.5	5.5	12	1	6	6	14	20	HR 7018	14	22	7.1	HRI 7090
4-6	8.2	3.5	5.5	14	1	6	10.5	18.5	25.5	HR 7020	14	26.5	7.1	HRI 7094
4-6	9.7	3.5	5.5	14	1	6	10.5	18.5	25.5	HR 7021	14	26.5	7.1	HRI 7095
10	4.2	4.3	6.3	10	1	8	7	17	22	HR 7118	-	-	-	-
10	5.2	4.3	6.3	10	1	8	7	17	22	HR 7025	-	-	-	-
10	6.4	4.3	6.3	12	1	8	7	17	23	HR 7120	-	-	-	-
10	8.2	4.3	6.3	16	1	8	7	19	27	HR 7121	-	-	-	-
10	10.2	4.3	6.3	22	1	8	10	23	34	HR 7123	-	-	-	-
10	12.7	4.3	6.3	22	1	8	10	23	34	HR 7028	-	-	-	-
16	6.4	5.6	8	16	1.2	10	8	22	30	HR 7126	-	-	-	-
16	8.2	5.6	8	16	1.2	10	8	22	30	HR 7030	-	-	-	-
16	10.2	5.6	8	22	1.2	10	8	24	35	HR 7128	-	-	-	-
16	12.7	5.6	8	22	1.2	10	8	24	35	HR 7033	-	-	-	-
25	6.4	7.5	11.1	16	1.8	11	6	22	30	HR 7129	-	-	-	-
25	8.2	7.5	11.1	16	1.8	11	6	22	30	HR 7034	-	-	-	-
25	10.2	7.5	11.1	16	1.8	11	6	22	30	HR 7035	-	-	-	-
25	12.7	7.5	11.1	22	1.8	11	14	31	42	HR 7037	-	-	-	-
35	6.4	9	12.6	16	1.8	12	6	23	31	HR 7133	-	-	-	-
35	8.2	9	12.6	16	1.8	12	6	23	31	HR 7038	-	-	-	-
35	10.2	9	12.6	22	1.8	12	15	31	42	HR 7135	-	-	-	-
35	12.7	9	12.6	22	1.8	12	15	31	42	HR 7040	-	-	-	-

Description

No table available for this product.

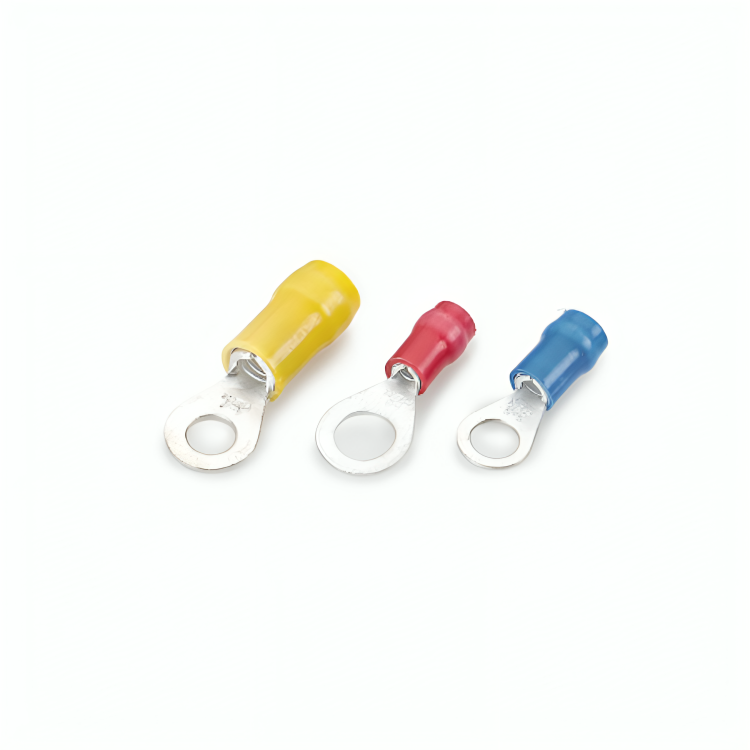

Our range of Ring Type Tinned Copper Cable Terminal Ends – Insulated & Non Insulated is manufactured from high conductivity copper and electro-tinned for corrosion resistance. These are available in different sizes to serve different joining techniques such as crimping, soldering and welding.
