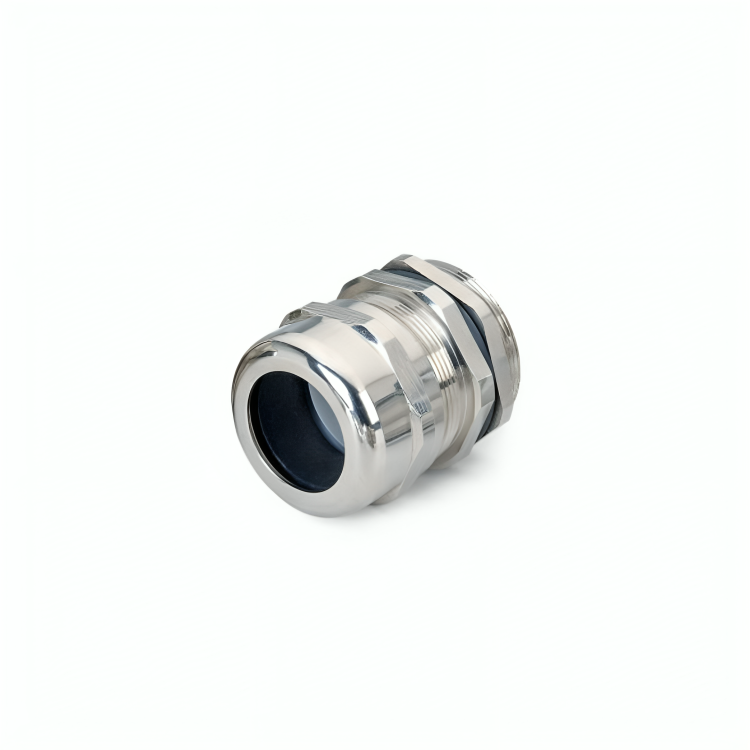

Nickle Plated Brass Gland - IP68 Rating - PG Thread

Nickle Plated Brass Gland - IP68 Rating - PG Thread

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

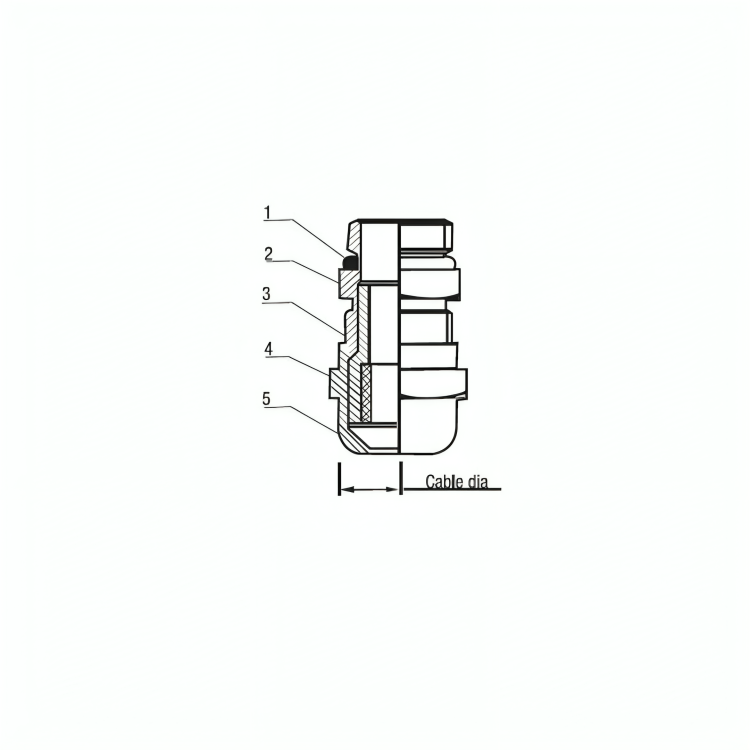

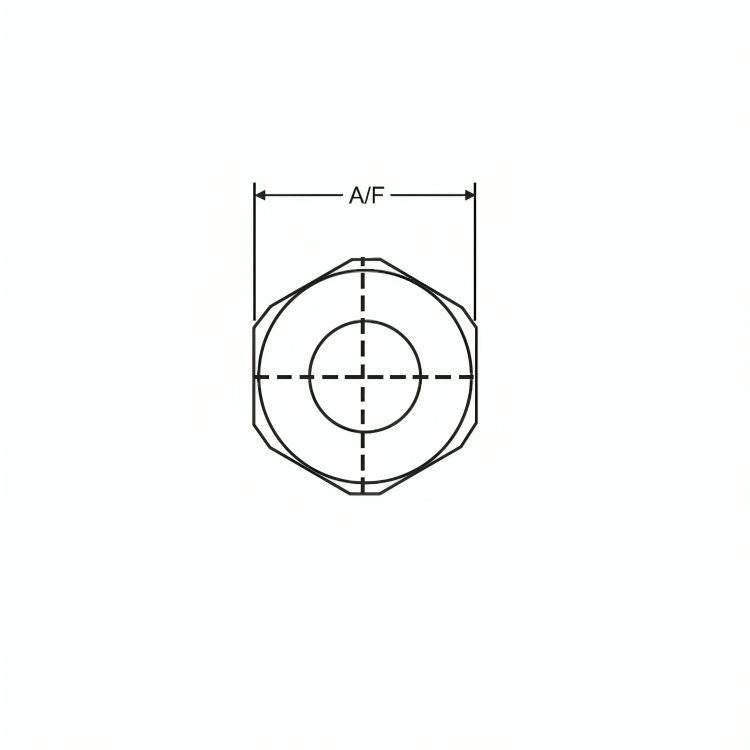

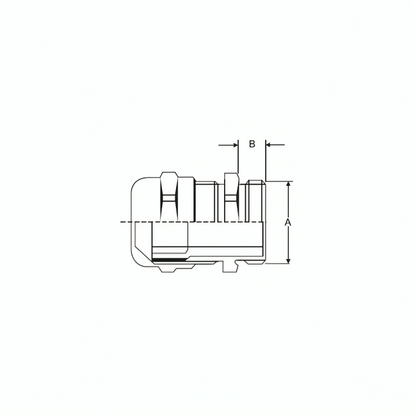

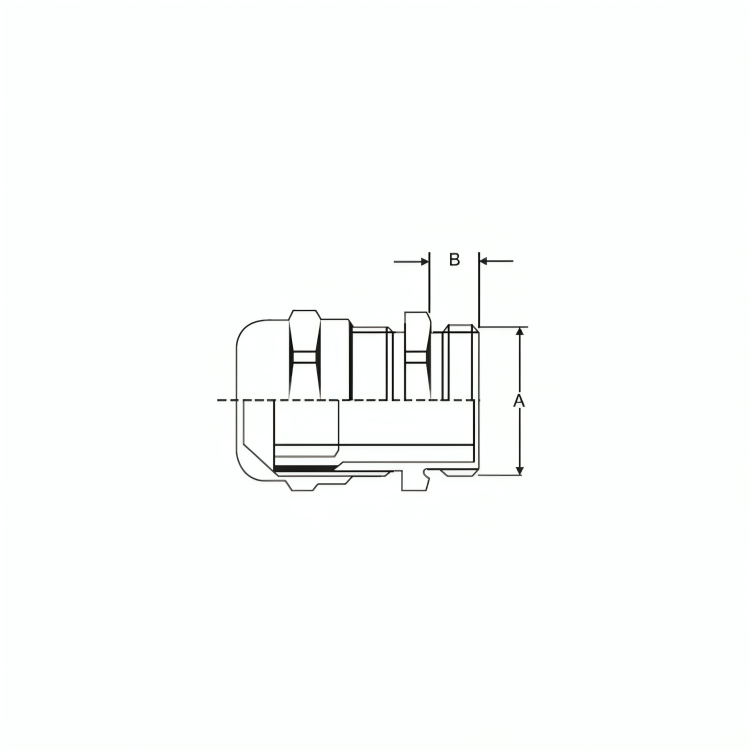

Cable DIA. Dimensions Dimensions Product Code
D d H S h h1 h2* D d H S h h1 h2* H*
3 - 6.5 13.9 6.5 13 14 8.5 3.5 3 9.6 9 16.5 14 9 7 6 (10) 26 HPG - 7
4 - 8 16.8 8.5 14 17 9 3.5 3.5 12.5 11 17 17 15 7.5 6 (10) 27 HPG - 9
5 - 10 19.8 10.5 16 20 9.5 3.5 3.5 15 13.5 17 20 13.5 7.5 6 (10) 28 HPG - 11
6 - 12 21.8 12 15 22 11 3.5 3.5 17 14 17 22 14.5 7.5 6.5 (10) 28 HPG - 13
10 - 14 23.8 14.5 17 24 12.5 4 4 19 16 20 24 16.5 10 6.5 (10) 30 HPG - 16
13 - 18 29.7 18.5 20.5 30 13 4 4 24 20.5 22 30 16.5 11 7 (12) 35 HPG - 21
18 - 25 39.5 25 24 40 15.5 5 5 32 28.5 26 40 19.5 16 8 (12) 40 HPG - 29
22 - 32 49.7 33 31 50 20.5 7.5 5 40 35 30 50 19.5 16 10 (15) 48 HPG - 36
30 - 38 56.5 39 26.5 58 17.5 8.5 4.5 49 43 35 58 23 15 12 (15) 54 HPG - 42
34 - 44 63.5 44.5 25 64 13.5 7 4 54 54 30 34 30 13 10 (14) 58 HPG - 48
