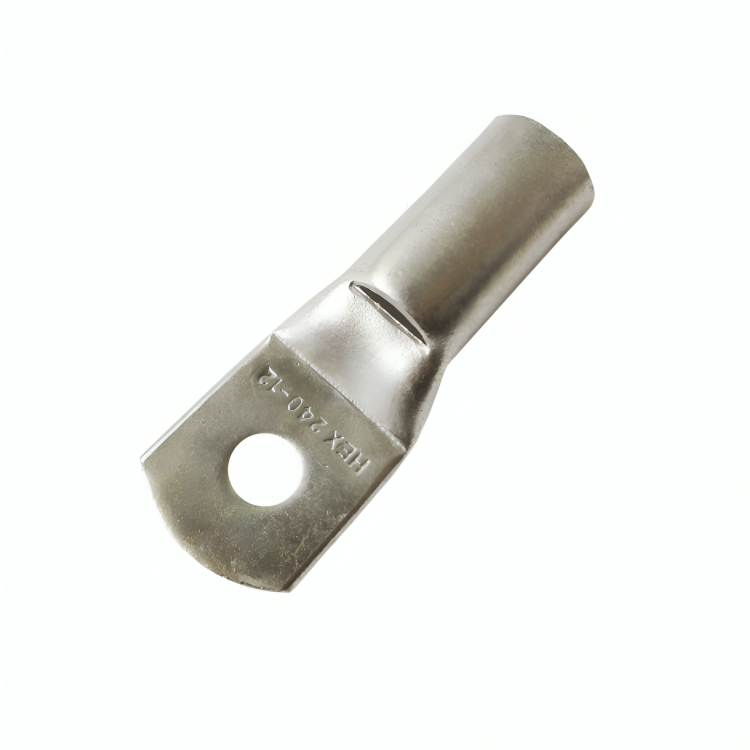

Long Barrel Tinned Copper Cable Terminal Ends
Long Barrel Tinned Copper Cable Terminal Ends
Regular price
Prices will be recieved with Quotation
Regular price
Sale price
Prices will be recieved with Quotation
Unit price
/
per
Product Codes or Sizes
Product Codes or Sizes
No table available for this product.

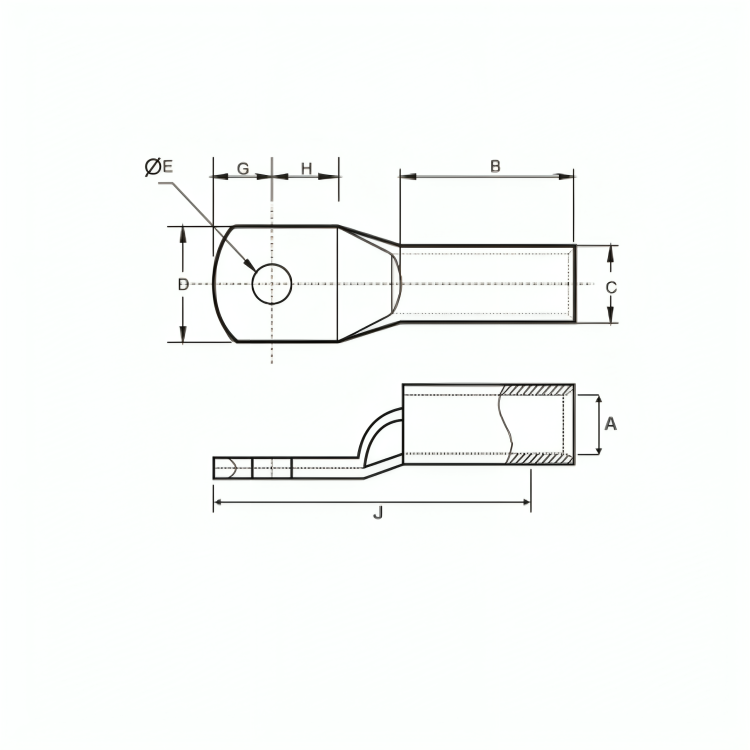

| Cable mm² | Stud Hole E | Dimensions | Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | F | G | H | B | J | |||
| 6 | 8.4 | 3.8 | 5.5 | 12 | 1 | 6 | 9 | 11 | 29 | HTL 6 - 8 |
| 10 | 8.4 | 4.5 | 6.2 | 12 | 1.2 | 6 | 9 | 11 | 29 | HTL10 - 8 |
| 16 | 8.4 | 5.4 | 7.1 | 12 | 1.4 | 7 | 7 | 15 | 35 | HTL16 - 8 |
| 25 | 8.4 | 6.8 | 8.8 | 16 | 2 | 7 | 7 | 15 | 35 | HTL 25 - 8 |
| 35 | 8.4 | 8.2 | 10.6 | 15.3 | 2.4 | 9 | 9 | 15 | 38 | HTL 35 - 8 |
| 50 | 13 | 9.5 | 12.4 | 18 | 2.9 | 10 | 11 | 20 | 47 | HTL 50 - 12 |
| 70 | 13 | 11.2 | 14.7 | 21 | 3.5 | 12 | 13 | 22 | 54 | HTL70 - 12 |
| 95 | 13 | 13.5 | 17.4 | 25 | 3.9 | 13 | 13 | 24 | 59 | HTL 95 - 12 |
| 120 | 13 | 15 | 19.4 | 28 | 4.4 | 14 | 14 | 27 | 65 | HTL120 - 12 |
| 150 | 13 | 16.5 | 21.2 | 30 | 4.7 | 16 | 16 | 32 | 75 | HTL150 - 12 |
| 185 | 13 | 18.5 | 23.5 | 34 | 5 | 17 | 17 | 39 | 85 | HTL185 - 12 |
| 240 | 17 | 21 | 26.5 | 38 | 5.5 | 20 | 20 | 46 | 100 | HTL 240 - 16 |
| 300 | 21 | 23.5 | 30 | 43 | 6.5 | 22 | 22 | 51 | 110 | HTL 300 - 20 |
| 400 | 21 | 28.5 | 36.5 | 50.1 | 8 | 26 | 26 | 53 | 123 | HTL 400 - 20 |
| 500 | 21 | 30 | 39 | 56 | 9 | 28 | 28 | 58 | 134 | HTL 500 - 20 |
Description
Description
No table available for this product.
Material: E-copper
Finish: Electro Tinned
