High Voltage Copper Terminals - 33 KV

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

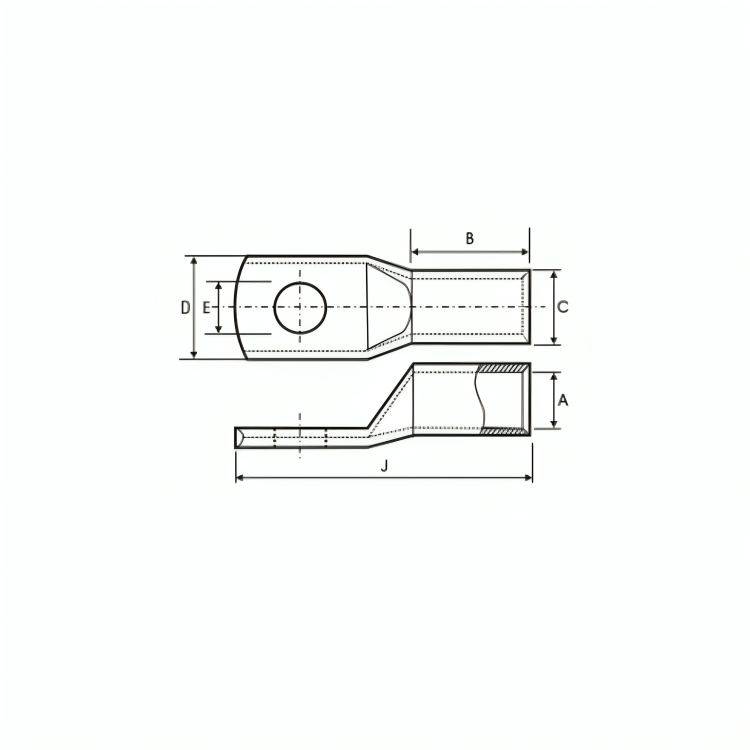

Cable mm²	Stud Hole E	Dimensions						Product Code
Cable mm²	Stud Hole E	A	C	D	G	H	J	Product Code
25	8	6.8	10	14	8	9	65	HVCT 25 - 8
25	10	6.8	10	18	11	13	72	HVCT 25 - 10
25	12	6.8	10	21	14	16	78	HVCT 25 - 12
35	12	8.2	12.5	21	14	16	79	HVCT 35 - 12
35	16	8.2	12.5	26	17	19	85	HVCT 35 - 16
50	12	9.5	14.5	21	14	16	79	HVCT 50 - 12
50	16	9.5	14.5	26	17	19	85	HVCT 50 - 16
70	12	11	16	28	14	16	81	HVCT 70 - 12
70	16	11	16	30	17	19	87	HVCT 70 - 16
95	12	13.5	19	28	14	16	91	HVCT 95 - 12
95	14	13.5	19	29	16	18	95	HVCT 95 - 14
95	16	13.5	19	30	17	20	97	HVCT 95 - 16
120	12	15	20.5	31	14	16	97	HVCT 120 - 12
120	14	15	20.5	31	16	18	101	HVCT 120 - 14
150	12	16.5	23	32	14	16	97	HVCT 150 - 12
150	14	16.5	23	32	16	18	101	HVCT 150 - 14
185	14	17	23.5	32.5	16	18	101	HVCT 185 - 14
240	14	19.2	25.5	44	16	18	105	HVCT 240 - 14
300	14	23.5	32	43	16	18	105	HVCT 300 - 14
400	14	27	38	51	19	22	140	HVCT 400 - 14
400	16	27	38	51	19	22	140	HVCT 400 - 16
400	20	27	38	51	23	24	146	HVCT 400 - 20
500	16	30.3	41	56.5	19	22	147	HVCT 500 - 16
500	20	30.3	41	56.5	23	24	153	HVCT 500 - 20
630	16	33.4	43	61.5	19	22	159	HVCT 630 - 16
630	20	33.4	43	61.5	23	24	165	HVCT 630 - 20

No table available for this product.

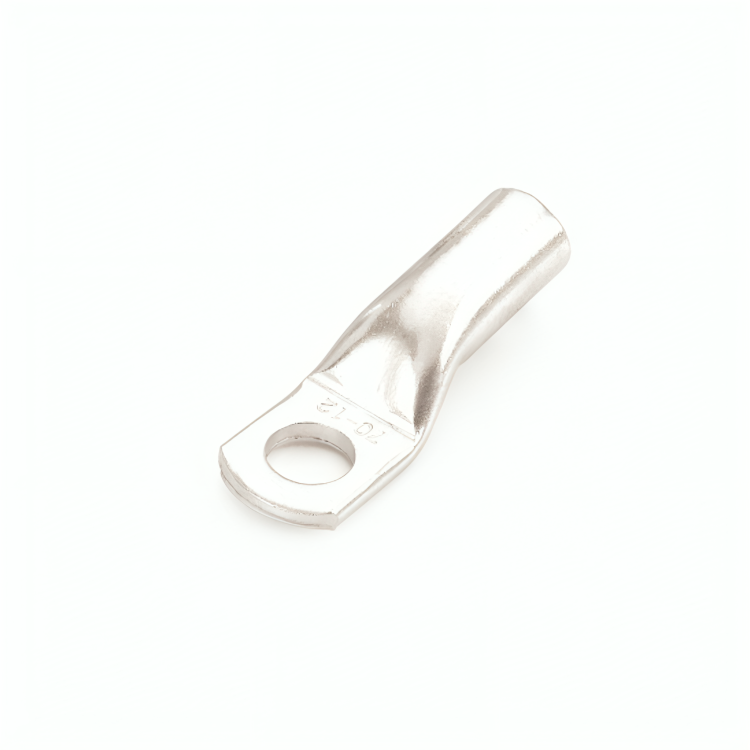

These terminals are designed for high voltage applications up to 33 KV.
They are manufactured from high purity copper tube, annealed & tin plated.
The extended barrel enhances both electrical and mechanical performance.
The absence of an inspection hole to prevent moisture entry into the crimped joint makes these terminals suitable for outdoor applications.
