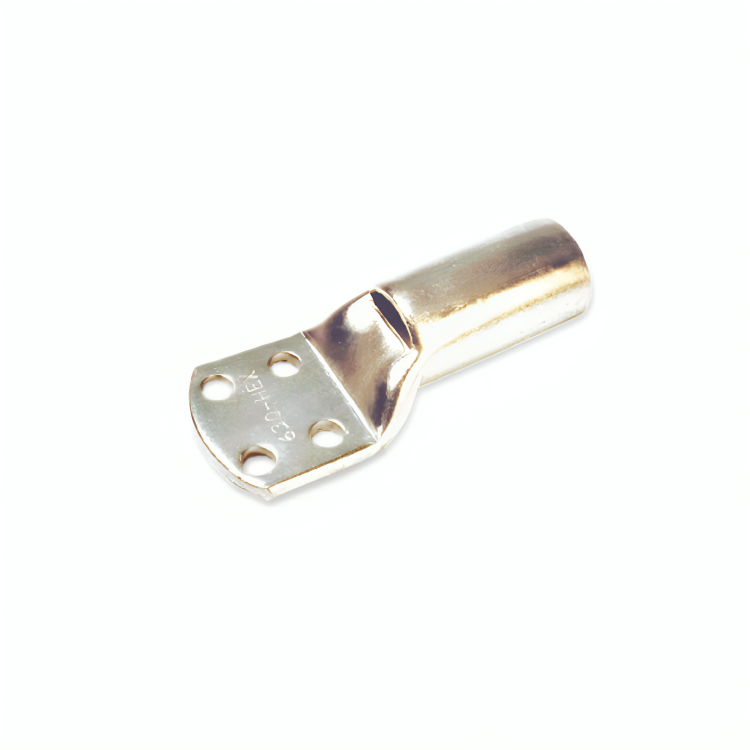

Four Hole Cable Terminal Ends

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

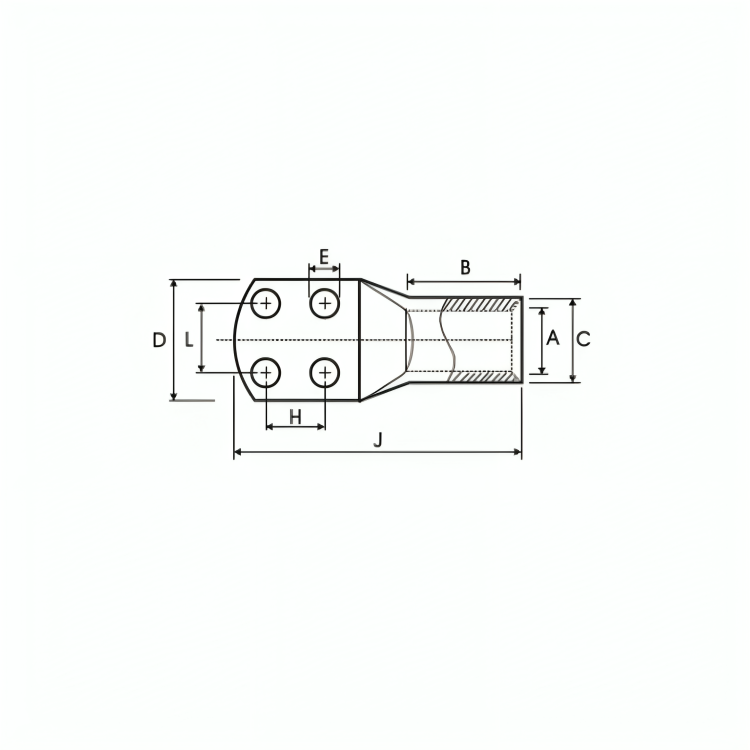

Cable mm²	Stud Hole E	Dimensions							Product Code
Cable mm²	Stud Hole E	A	C	D	B	L	H	J	Product Code
300	8.5	23.5	30	56	42	35	25	101	HT 3004E8
300	10.5	23.5	30	56	42	35	25	101	HT 3004E10
400	8.5	28.5	36.5	56	44	35	25	114	HT4004E8
400	10.5	28.5	36.5	56	44	35	25	114	HT 4004E10
500	8.5	30	39	56	48	35	25	124	HT 5004E8
500	10.5	30	39	56	48	35	25	124	HT 5004E10
630	8.5	35	45	65	56	35	25	144	HT 6304E8
630	10.5	35	45	65	56	35	25	144	HT 6304E10
800	8.5	35	45	63.8	58	35	25	148	HT 8004E8
800	8.5	35	45	36.8	58	35	25	18	HT 8004E10
1000	10.5	43	56.2	78.5	90	35	25	250	HT10004E8
1000	10.5	43	56.2	78.5	90	35	25	250	HT 10004E10
