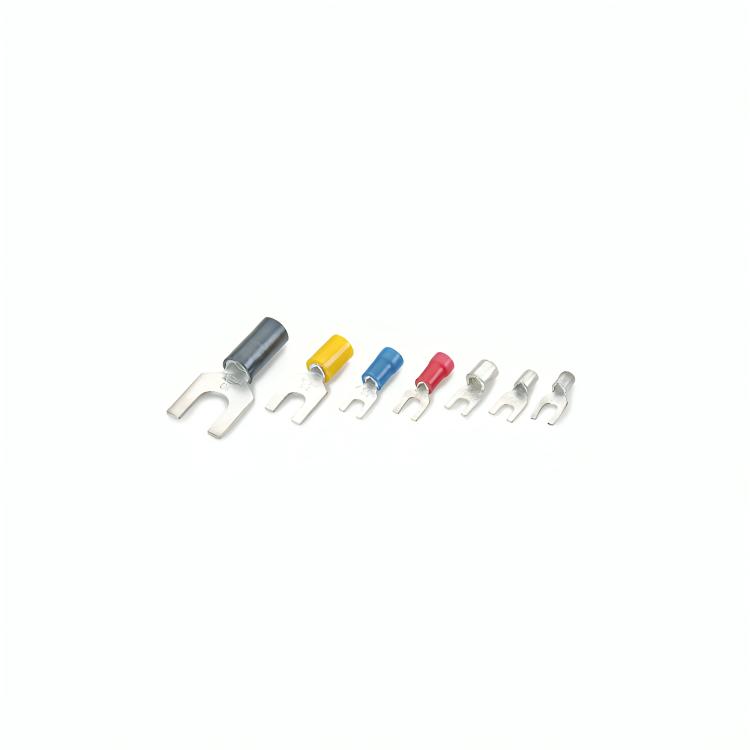

Fork Type Tinned Copper Cable Terminal Ends

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

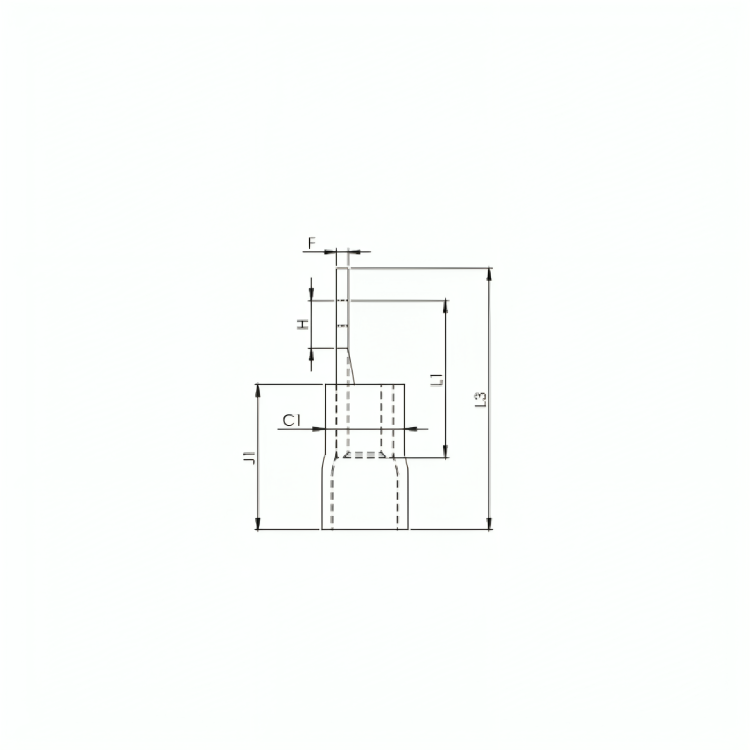

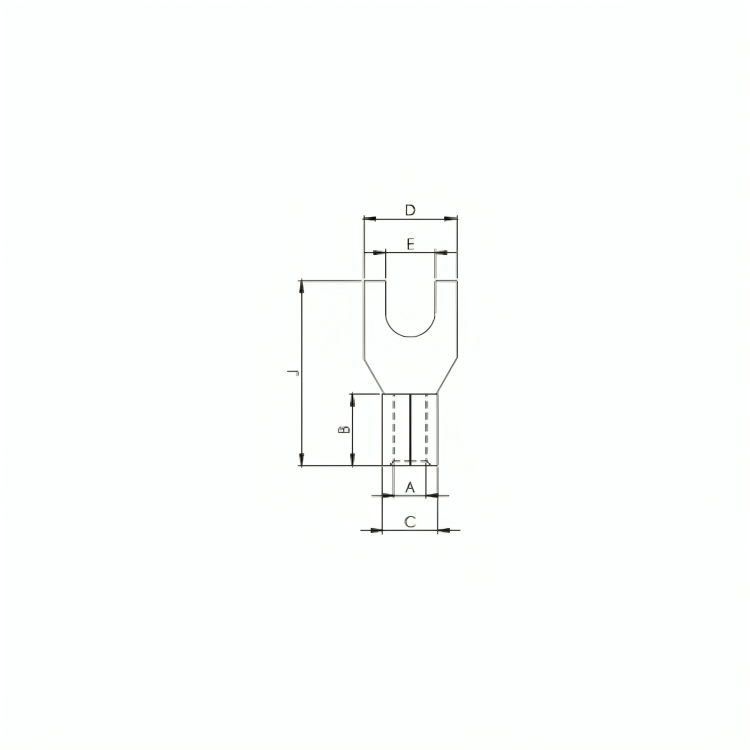

Cable mm²	Stud Hole E	Dimensions								Non Insulated Product Code	Dimensions			Insulated Product Code
Cable mm²	Stud Hole E	A	C	D	F	B	H	J	L-1	Non Insulated Product Code	C-1	J-1	L-3	Insulated Product Code
1.5	5.1	1.6	3.2	8	0.8	5	10	21	17	HF 7214	4.8	10	27	HFI 7925
1.5	3.5	1.6	3.2	6.8	0.8	4	4.8	13	8.8	HF 7249	4.8	10	20.8	HFI 7926
1.5	3	2	2.8	6.2	0.4	5	3.1	13	10.5	HF 7250	4.8	10	20.5	HFI 7927
2.5	3.5	2.3	3.9	6.5	0.8	5	4.3	15	11.8	HF 7251	5.5	10	21.8	HFI 7928
2.5	5	2.6	4.6	10.6	1.6	6.2	6.2	21	12.4	HF 7280	5.5	10	20	HFI 7929
4-6	3.1	3.5	5.5	6	1	6	5.5	15	11.5	HF 7252	7.1	14	27.5	HFI 7930
4-6	3.5	3.5	5.5	6	1	6	5	15	11	HF 7253	7.1	14	27	HFI 7931
10	6.5	4.5	6.9	16	1.2	8	11	27	19	HF 7254	7.9	16	35	HFI 7932
10	8.2	4.5	6.9	16	1.2	8	11	27	19	HF 7255	7.9	16	35	HFI 7933

Description

FORK TYPE TERMINAL ENDS: This type of terminal ends are mainly used with flexible wires, cords, control cables, control panel/switchboards, contractors etc. according to the requirements. They are made of high conductivity copper and are used for crimping.
