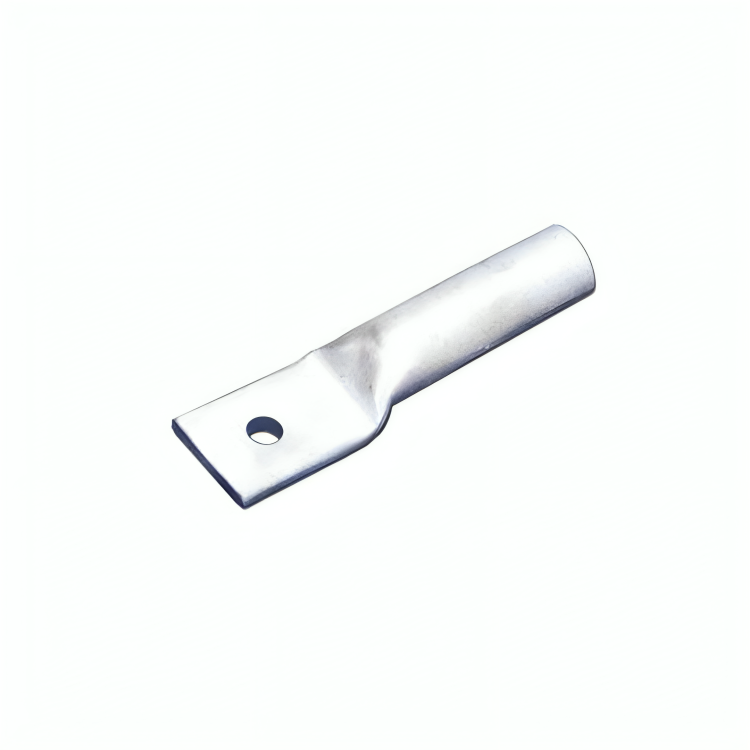

Crimping Type Heavy Duty Long Barrel Aluminium Terminal Ends For XLPE Cable

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

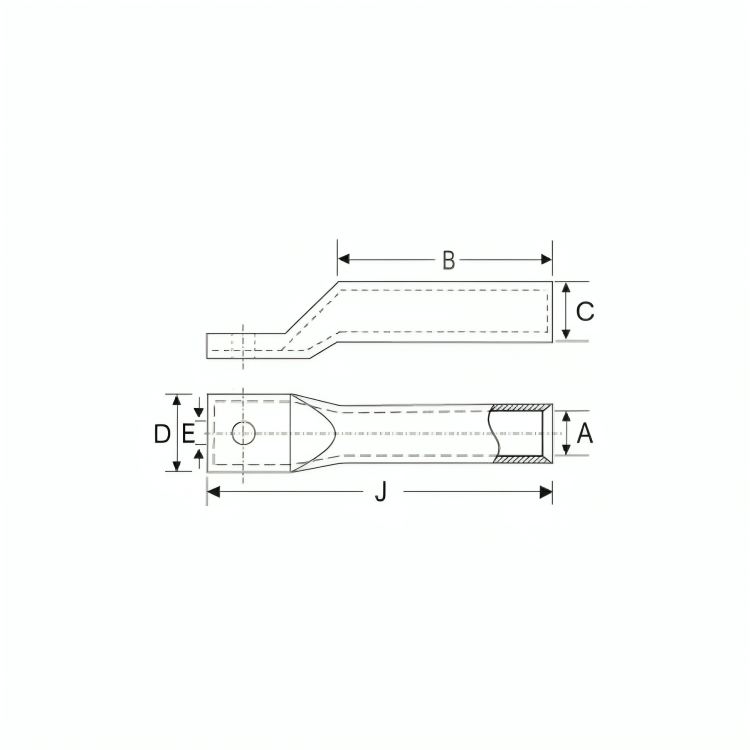

Cable mm²	Stud Hole E	Dimensions									Product Code
Cable mm²	Stud Hole E	A	C	D	F	G	H	K	B	J	Product Code
10	5.2	4.5	6.2	11	1.2	6	7	3	10	26	BHT 10-5
10	6.5	4.5	6.2	11	1.2	6	7	3	10	26	BHT 10-6
10	8.4	4.5	6.2	12	1.2	6	9	3	10	28	BHT 10-8
10	10.5	4.5	6.8	15	1.5	8	11	3	11	33	BHT 10-10
10	13	4.5	6.8	18	1	9	11	5	11	36	BHT 10-12
16	5.2	5.4	7.1	12	1.4	7	7	4	12	30	BHT 16-5
16	6.5	5.4	7.1	12	14	7	7	4	12	30	BHT 16-6
16	8.4	5.4	7.1	12	14	7	7	4	12	30	BHT 16-8
16	10.5	5.5	7.6	15	1.7	8	12	4	12	36	BHT 16-10
16	13	5.5	7.6	17	1.5	11	13	4	12	39	BHT 16-13
16	17	5.5	7.6	21	1	13	14	5	12	44	BHT 16-16
20	8.4	6	7.7	12	1.7	7	7	4	12	32	BHT 20-8
25	6.5	6.8	8.8	13	2	7	7	4	12	30	BHT 25-6
25	8.4	6.8	8.8	13	2	7	7	4	12	30	BHT 25-8
25	10.5	6.8	8.8	15	1.5	10	11	4	13	38	BHT 25-10
25	13	6.8	9.2	17	2	10	12	4	15	41	BHT 25-12
25	17	6.8	9.2	21	1.5	13	14	5	15	47	BHT 25-16
35	6.5	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-6
35	8.4	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-8
35	10.5	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-10
35	13	8.2	10.6	15.3	2	10	12	5	13.5	41	BHT 35-12
35	17	8.2	10.6	22	1.5	13	14	5	15	47	BHT 35-16
50	6.5	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-6
50	8.4	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-8
50	10.5	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-10
50	13	9.5	12.4	20	2.6	10	12	6	17	45	BHT 50-13
50	14.5	9.5	12.4	22	2.2	15	15	6	18	54	BHT 50-14
50	17	9.5	12.4	22	2.2	15	15	6	18	54	BHT 50-16
50	21	9.5	12.4	26	1.8	16	18	6	18	60	BHT 50-20
70	8.4	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-8
70	10.5	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-10
70	13	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-12
70	14.5	11.3	14.6	22	3.4	14	15	7	18.5	55	BHT 70-14
70	17	11.3	14.6	26	2.5	14	16	7	18.5	56	BHT 70-16
70	21	11.3	14.6	28	2.3	16	18	9	18.5	63	BHT 70-20
95	8.4	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-8
95	10.5	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-10
95	13	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-12
95	14.5	13.5	17.4	25	3.9	14	15	7	22	55	BHT 95-14
95	17	13.5	17.4	25	3.9	14	16	7	22	56	BHT 95-16
95	21	13.5	17.4	28	3.5	15	16	10	22	63	BHT 95-20
120	8.4	15	19.4	28	4.4	13	14	9	23	60	BHT 120-8
120	10.5	15	19.4	28	4.4	13	14	9	23	60	BHT 120-10
120	13	15	19.4	28	4.4	13	14	9	23	60	BHT 120-12
120	14.5	15	19.4	28	4.4	13	14	9	23	60	BHT 120-14
120	17	15	19.4	28	4.4	16	16	10	23	64	BHT 120-16
120	21	15	19.4	28	4.4	16	20	10	23	68	BHT 120-20
150	8.4	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-8
150	10.5	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-10
150	13	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-12
150	14.7	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-14
150	17	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-16
150	21	16.5	21.2	30	4.7	16	16	12	27	73	BHT 150-20
185	10.5	18.5	23.5	34	5	17	19	12	32	80	BHT 185-10
185	13	18.5	23.5	34	5	17	19	12	32	80	BHT 185-12
185	14.7	18.5	23.5	34	5	17	19	12	32	80	BHT 185-14
185	17	18.5	23.5	34	5	17	19	12	32	80	BHT 185-16
185	21	18.5	23.5	34	5	17	19	12	32	80	BHT 185-20
240	10.5	21	26.5	38	5.5	20	21	14	39	94	BHT 240-10
240	13	21	26.5	38	5.5	20	21	14	39	94	BHT 240-12
240	14.5	21	26.5	38	5.5	20	21	14	39	94	BHT 240-14
240	17	21	26.5	38	5.5	20	21	14	39	94	BHT 240-16
240	21	21	26.5	38	5.5	20	21	14	39	94	BHT 240-20

Description

No table available for this product.

We manufacture a wide range of Crimping Type Heavy Duty Long Barrel Aluminium Terminal Ends from aluminium tubes. They are fully annealed to ensure qualities of electrical and mechanical strength.
