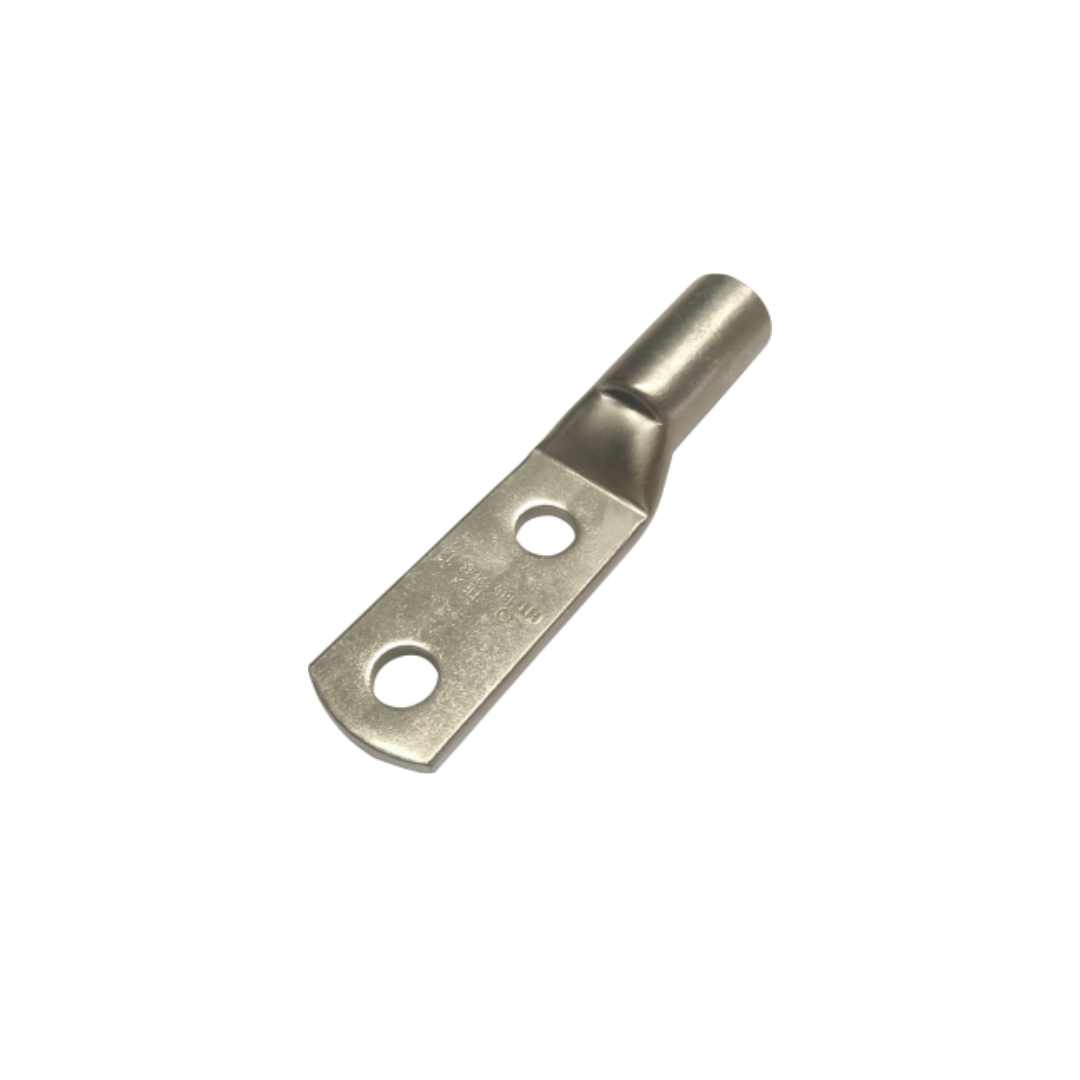

Crimping Type Copper Tubular Cable Terminal Ends - Two Hole

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

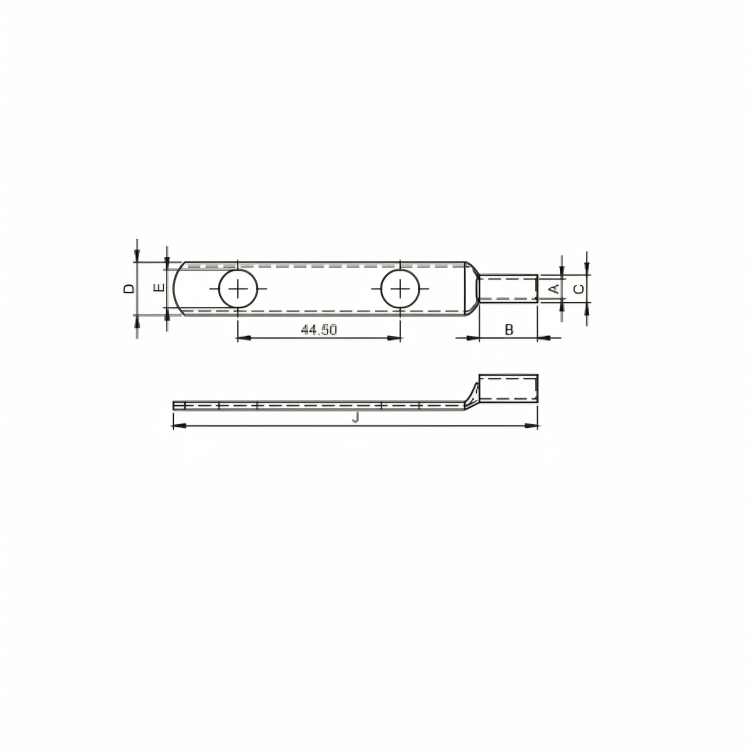

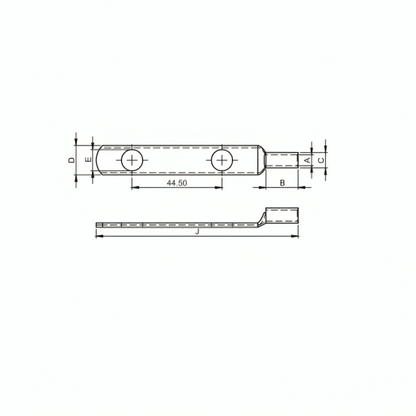

Cable Size		Stud Hole E	Dimensions					Product Code
mm²	AWG	Stud Hole E	A	C	D	B(Strip Length)	J	Product Code
16	#6	5.2	5.4	7.1	12	16	100	HT 16 2ER-5
16	#6	6.5	5.4	7.1	12	16	100	HT 16 2ER-6
16	#6	8.4	5.4	7.1	12	16	100	HT 16 2ER-8
16	#6	10.5	5.5	7.6	15	16	100	HT 16 2ER-10
16	#6	13	5.5	7.6	17	16	100	HT 16 2ER-12
16	#6	17	5.5	7.6	21	16	105	HT 16 2ER-16
20	#4	8.4	6	7.7	12	16	100	HT 20 2ER-8
25	#3	6.5	6.8	8.8	13	16	100	HT 25 2ER-6
25	#3	8.4	6.8	8.8	13	16	100	HT 25 2ER-8
25	#3	10.5	6.8	8.8	15	16	100	HT 25 2ER-10
25	#3	13	6.8	9.2	17	16	100	HT 25 2ER-12
25	#3	17	6.8	9.2	21	16	105	HT 25 2ER-16
35	#2	6.5	8.2	10.6	15.3	16	100	HT 35 2ER-6
35	#2	8.4	8.2	10.6	15.3	16	100	HT 35 2ER-8
35	#2	10.5	8.2	10.6	15.3	16	100	HT 35 2ER-10
35	#2	13	8.2	10.6	18	16	100	HT 35 2ER-12
35	#2	17	8.2	10.6	22	16	105	HT 35 2ER-16
50	1/0 MCM	6.5	9.5	12.4	17.8	25	109	HT 50 2ER-6
50	1/0 MCM	8.4	9.5	12.4	17.8	25	109	HT 50 2ER-8
50	1/0 MCM	10.5	9.5	12.4	17.8	25	109	HT 50 2ER-10
50	1/0 MCM	13	9.5	12.4	20	25	109	HT 50 2ER-12
50	1/0 MCM	13	9.5	12.4	18	25	109	HT 50 2EN-12
50	1/0 MCM	14.5	9.5	12.4	22	25	112	HT 50 2ER-14
50	1/0 MCM	17	9.5	12.4	22	25	114	HT 50 2ER-16
50	1/0 MCM	21	9.5	12.4	26	25	119	HT 50 2ER-20
70	2/0 MCM	8.4	11.3	14.6	21	30	114	HT 70 2ER-8
70	2/0 MCM	10.5	11.3	14.6	21	30	114	HT 70 2ER-10
70	2/0 MCM	13	11.3	14.6	21	30	114	HT 70 2ER-12
70	2/0 MCM	14.5	11.3	14.6	22	30	118	HT 70 2ER-14
70	2/0 MCM	17	11.3	14.6	26	30	120	HT 70 2ER-16
70	2/0 MCM	21	11.3	14.6	28	30	127	HT 70 2ER-20
95	3/0 MCM	8.4	13.5	17.4	25	30	116	HT 95 2ER-8
95	3/0 MCM	10.5	13.5	17.4	25	30	116	HT 95 2ER-10
95	3/0 MCM	13	13.5	17.4	25	30	116	HT 95 2ER-12
95	3/0 MCM	14.5	13.5	17.4	25	30	118	HT 95 2ER-14
95	3/0 MCM	17	13.5	17.4	25	30	120	HT 95 2ER-16
95	3/0 MCM	21	13.5	17.4	28	30	127	HT 95 2ER-20
120	4/0 MCM	8.4	15	19.4	28	35	122	HT 120 2ER-8
120	4/0 MCM	10.5	15	19.4	28	35	122	HT 120 2ER-10
120	4/0 MCM	13	15	19.4	28	35	122	HT 120 2ER-12
120	4/0 MCM	14.5	15	19.4	28	35	125	HT 120 2ER-14
120	4/0 MCM	17	15	19.4	28	35	128	HT 120 2ER-16
120	4/0 MCM	21	15	19.4	28	35	133	HT 120 2ER-20
150	250 MCM	8.4	16.5	21.2	30	40	126	HT 150 2ER-8
150	251 MCM	10.5	16.5	21.2	30	40	126	HT 150 2ER-10
150	252 MCM	13	16.5	21.2	30	40	126	HT 150 2ER-12
150	253 MCM	14.7	16.5	21.2	30	40	132	HT 150 2ER-14
150	254 MCM	17	16.5	21.2	30	40	134	HT 150 2ER-16
150	255 MCM	21	16.5	21.2	30	40	139	HT 150 2ER-20
185	350 MCM	10.5	18.5	23.5	34	42	132	HT 185 2ER-10
185	351 MCM	13	18.5	23.5	34	42	132	HT 185 2ER-12
185	352 MCM	14.7	18.5	23.5	34	42	135	HT 185 2ER-14
185	353 MCM	17	18.5	23.5	34	42	137	HT 185 2ER-16
185	354 MCM	21	18.5	23.5	34	42	142	HT 185 2ER-20
240	500 MCM	10.5	21	26.5	38	50	143	HT 240 2ER-10
240	501 MCM	13	21	26.5	38	50	143	HT 240 2ER-12
240	502 MCM	14.7	21	26.5	38	50	145	HT 240 2ER-14
240	503 MCM	17	21	26.5	38	50	147	HT 240 2ER-16
240	504 MCM	21	21	26.5	38	50	152	HT 240 2ER-20
240	505 MCM	BL	21	26.5	38	50	143	HT 240 2ER-BL
300	600 MCM	10.5	23.5	30	43	55	144	HT 300 2ER-10
300	601 MCM	13	23.5	30	43	55	144	HT 300 2ER-12
300	602 MCM	14.7	23.5	30	43	55	151	HT 300 2ER-14
300	603 MCM	17	23.5	30	43	55	153	HT 300 2ER-16
300	604 MCM	21	23.5	30	43	55	158	HT 300 2ER-20
300	605 MCM	BL	23.5	30	43	55	144	HT 300 2ER-BL
400	750 MCM	13	28.5	36.5	52.5	60	149	HT 400 2ER-12
400	751 MCM	14.7	28.5	36.5	52.5	60	158	HT 400 2ER-14
400	752 MCM	17	28.5	36.5	52.5	60	160	HT 400 2ER-16
400	753 MCM	21	28.5	36.5	52.5	60	165	HT 400 2ER-20
400	754 MCM	BL	28.5	36.5	52.5	60	149	HT 400 2ER-BL
500	1000 MCM	13	30	39	56	65	160	HT 500 2ER-12
500	1001 MCM	14.7	30	39	56	65	163	HT 500 2ER-14
500	1002 MCM	17	30	39	56	65	165	HT 500 2ER-16
500	1003 MCM	21	30	39	56	65	170	HT 500 2ER-20
500	1004 MCM	BL	30	39	56	65	160	HT 500 2ER-BL
