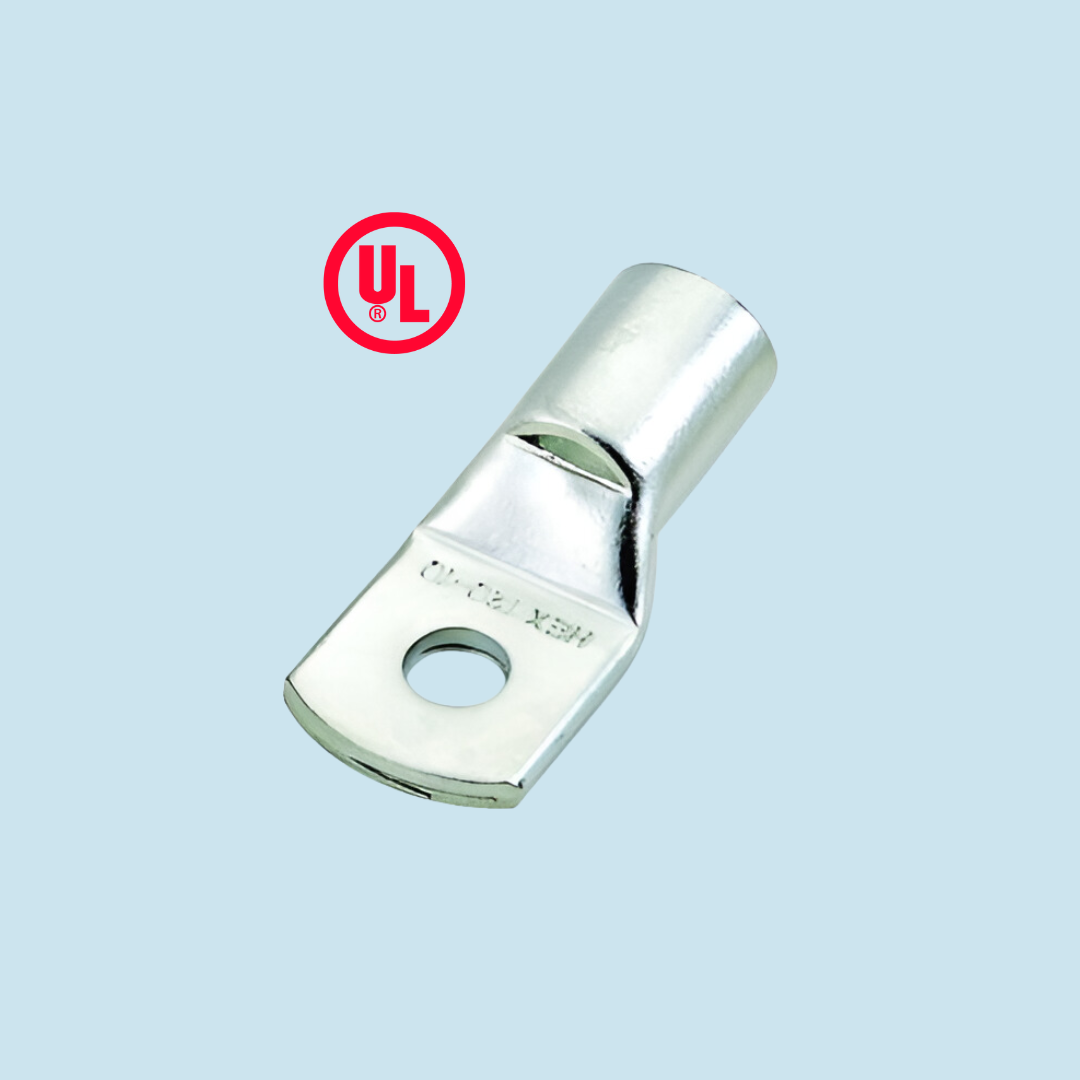

Crimping Type Copper Tubular Cable Terminal Ends

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

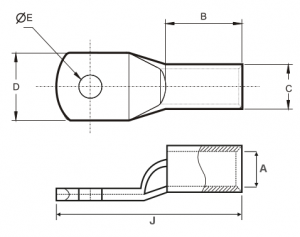

Cable mm²	Stud Hole E	Dimensions							Product Code
Cable mm²	Stud Hole E	A	C	D	G	H	B	J	Product Code
1.5	4.2	1.8	3.7	8	4	5	6	17	HT 1.5 - 4
1.5	5.2	1.8	3.7	8	4	5	6	17	HT 1.5 - 5
1.5	6.5	1.8	3.7	10	4	6	6	18	HT 1.5 - 6
2.5	4.2	2.4	4	8	4	5	8	19	HT 2.5 - 4
2.5	5.2	2.4	4	8	4	5	8	19	HT 2.5 - 5
2.5	6.5	2.4	4	10	5	6	8	21	HT 2.5 - 6
2.5	8.4	2.4	4.2	12	6	9	8	26	HT 2.5 - 8
4	4.2	3.1	4.8	10	5	6	8	21	HT 4 - 4
4	5.2	3.1	4.8	10	5	6	8	21	HT 4 - 5
4	6.5	3.1	4.8	10	5	6	8	21	HT 4 - 6
4	8.4	3.1	4.8	12	6	9	8	26	HT 4 - 8
6	5.2	3.8	5.5	10	5	6	10	24	HT 6 - 5
6	6.5	3.8	5.5	10	5	6	10	24	HT 6 - 6
6	8.4	3.8	5.5	12	6	9	10	28	HT 6 - 8
6	10.5	3.8	6	15	8	1	10	32	HT 6 - 10
10	6.5	4.5	6.2	11	6	7	10	26	HT 10 - 6
10	8.4	4.5	6.2	12	6	9	10	28	HT 10 - 8
10	10.5	4.5	6.8	15	8	11	11	33	HT 10 - 10
16	6.5	5.4	7.1	12	7	7	12	30	HT 16 - 6
16	8.4	5.4	7.1	12	7	7	12	30	HT 16 - 8
16	10.5	5.4	7.6	15	8	2	12	36	HT 16 - 10
16	13	5.4	7.6	17	11	3	12	39	HT 16 - 12
20	8.4	6	7.7	12	7	7	12	32	HT 20 - 8
25	6.5	6.8	8.8	13	7	7	12	30	HT 25 - 6
25	8.4	6.8	8.8	13	7	7	12	30	HT 25 - 8
25	10.5	6.8	8.8	15	10	11	13	38	HT 25 - 10
25	13	6.8	9.2	17	10	12	15	41	HT 25 - 12
35	6.5	8.2	10.6	16	9	9	13.5	37	HT 35 - 6
35	8.4	8.2	10.6	16	9	9	13.5	37	HT 35 - 8
35	10.5	8.2	10.6	16	9	9	13.5	37	HT 35 - 10
35	13	8.2	10.6	18	10	12	13.5	41	HT 35 - 12
35	17	8.2	10.6	22	14	18	13.5	50	HT 35 - 16
50	8.4	9.5	12.4	18	9	10	17	42	HT 50 - 8
50	10.5	9.5	12.4	18	9	10	17	42	HT 50 - 10
50	13	9.5	12.4	20	10	12	17	45	HT 50 - 12
50	17	9.5	12.4	22	15	15	18	54	HT 50 - 16
70	8.4	11.3	14.6	21	11	11	18.5	47	HT 70 - 8
70	10.5	11.3	14.6	21	11	11	18.5	47	HT 70 - 10
70	13	11.3	14.6	21	11	11	18.5	47	HT 70 - 12
70	14.5	11.3	14.6	22	14	15	18.5	55	HT 70 - 14
70	17	11.3	14.6	26	14	16	18.5	56	HT 70 - 16
95	10.5	13.5	17.4	25	12	13	21	53	HT 95 - 10
95	13	13.5	17.4	25	12	13	21	53	HT 95 - 12
95	14.5	13.5	17.4	25	14	15	22	55	HT 95 - 14
95	17	13.5	17.4	25	14	16	22	56	HT 95 - 16
120	13	15	19.4	28	13	14	23	60	HT120 - 12
120	14.5	15	19.4	28	13	14	23	60	HT120 - 14
120	17	15	19.4	28	16	16	23	64	HT 120 - 16
150	13	16.5	21.2	30	16	16	27	70	HT 150 - 12
150	14.5	16.5	21.2	30	16	16	27	70	HT 150 - 14
150	17	16.5	21.2	30	16	16	27	70	HT 150 - 16
150	21	16.5	21.2	30	19	16	27	73	HT150 - 20
185	13	18.5	23.5	34	17	19	32	80	HT 185 - 12
185	14.5	18.5	23.5	34	17	19	32	80	HT 185 - 14
185	17	18.5	23.5	34	17	19	32	80	HT 185 - 16
185	21	18.5	23.5	34	17	19	32	80	HT 185 - 20
240	13	21	26.5	38	20	20	37	94	HT 240 - 12
240	17	21	26.5	38	20	20	37	94	HT 240 - 14
240	17	21	26.5	38	20	20	37	94	HT 240 - 16
240	21	21	26.5	38	20	20	37	94	HT 240 - 20
240	-	21	26.5	38	-	-	37	94	HT 240 - BL
300	13	23.5	30	43	22	22	42	102	HT 300 - 12
300	14.5	23.5	30	43	22	22	42	102	HT 300 - 14
300	17	23.5	30	43	22	22	42	102	HT 300 - 16
300	21	23.5	30	43	22	22	42	102	HT 300 - 20
300	-	23.5	30	43	-	-	42	102	HT 300 - BL
400	13	28.5	36.5	52.5	26	26	44	114	HT 400 - 12
400	14.5	28.5	36.5	52.5	26	26	44	114	HT 400 - 14
400	17	28.5	36.5	52.5	26	26	44	114	HT 400 - 16
400	21	28.5	36.5	52.5	26	26	44	114	HT 400 - 20
400	-	28.5	36.5	52.5	-	-	44	114	HT 400 - BL
500	17	30	39	56	28	28	48	121	HT 500 - 16
500	21	30	39	56	28	28	48	121	HT 500 - 20
500	-	30	39	56	-	-	48	121	HT 500 - BL
630	14.7	35	45	63.8	33	33	60	144	HT 630 - 16
630	17	35	45	63.8	33	33	60	144	HT 630 - 20
630	21	35	45	63.8	-	-	60	144	HT 630 - BL
800	-	39	50.6	72	-	-	78	170	HT 800 - BL
1000	-	43	56.2	78.5	-	-	90	200	HT 1000 - BL

Description

No table available for this product.

Our crimping type copper tubular cable terminal ends provide a reliable and secure connection for cable management in electrical systems. Made from high-quality copper, these cable terminal ends ensure excellent conductivity and are designed for easy crimping. Ideal for Saudi Arabian industrial, commercial, and residential electrical installations, these terminals are suited for power distribution, grounding, and wiring in demanding environments.

Features:

Material: High-purity copper for superior conductivity
Crimping Design: Provides a strong and durable connection
Available in various sizes to fit different cable gauges
Corrosion-resistant for extended lifespan in various environments

Applications: Perfect for electrical and power distribution projects in Saudi Arabia, these copper tubular cable terminal ends are widely used in switchgear, transformers, control panels, and other electrical systems. They provide a secure connection, reducing the risk of power loss and ensuring efficient electrical performance.
