Copper Pin Type Cable Terminal Ends

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

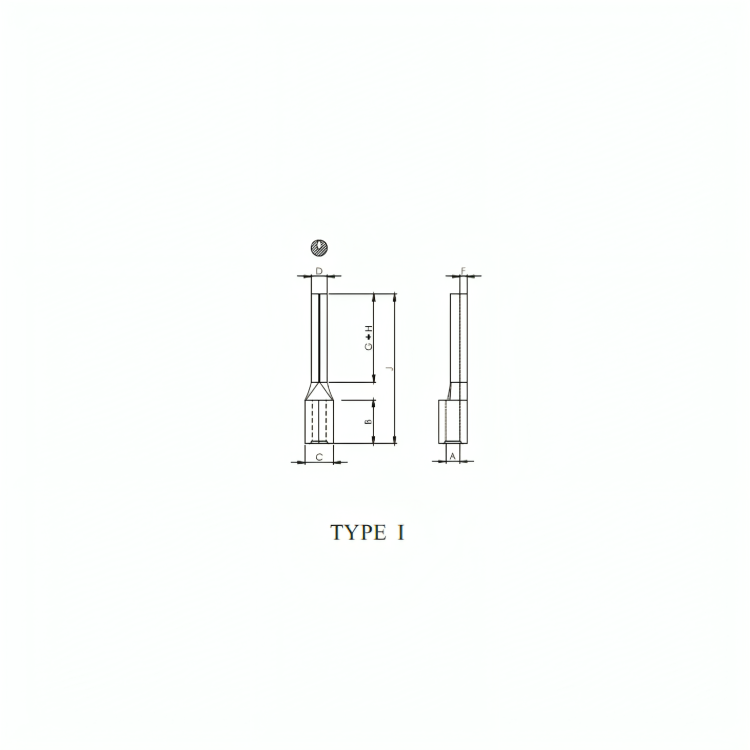

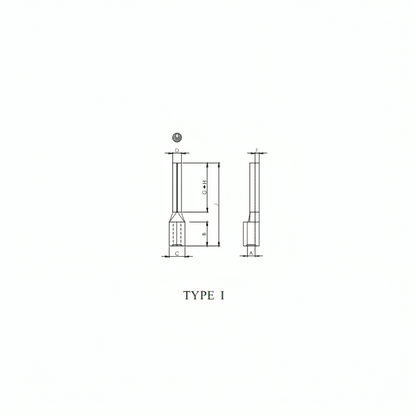

Cable mm²	Stud Hole E	Dimensions							Type	Product Code

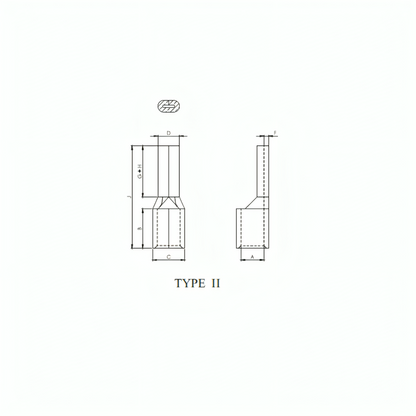

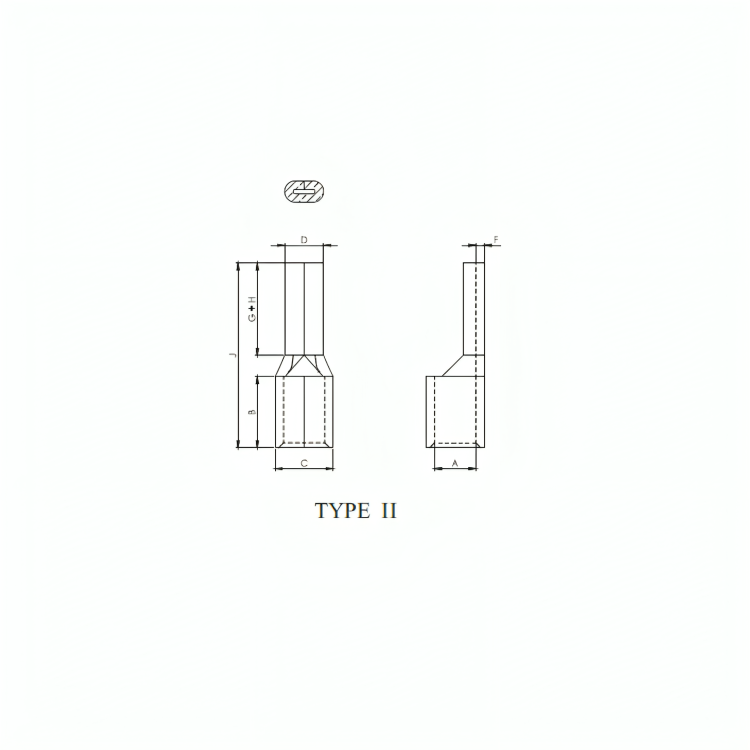

Cable mm²	Stud Hole E	A	C	D	F	B	G+H	J	Type	Product Code
1.5	-	1.6	3.2	1.9	0.8	5	10	17	I	HP 9
2.5	-	2.3	3.9	1.9	0.8	5	10	17	I	HP 1
4	-	2.9	4.9	2.7	1	6	10	20	I	HP 3
6	-	3.6	5.6	2.7	1	6	10	20	I	HP 5
6	-	4	6	2.7	1	6	10	20	I	HP 6
10	2.4	4.5	6.7	4.3	1.1	8	12	22	II	HP 7
16	2.6	5.8	8.2	5.5	1.2	10	13	26	II	HP 8
25	3.8	7.5	11.1	7.2	1.8	11	15	33	II	HP 10
35	3.8	9	12.6	8.2	1.8	12	15	33	II	HP 11
50	3.8	10.5	14.1	9	1.8	16	17	41	II	HP 12
70	4.1	12	16	10	2	16	16	46	II	HP 13
95	4.8	13.5	18.1	10	2.3	20	20	51	II	HP 14

Description

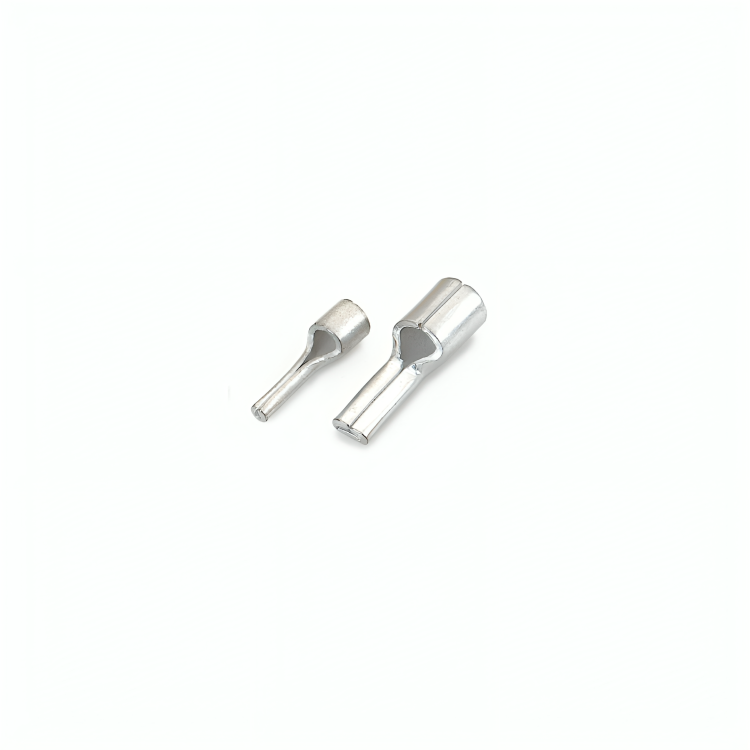

PIN TYPE TERMINAL ENDS: Three types are available in this type of terminal ends i.e. Round, Regular, and Flat. They are mainly used for control cables, terminal station, flexible core, or for smaller sizes of cable. Pin type terminal ends are generally available for crimping type of connections which are made out of high conductivity copper.
