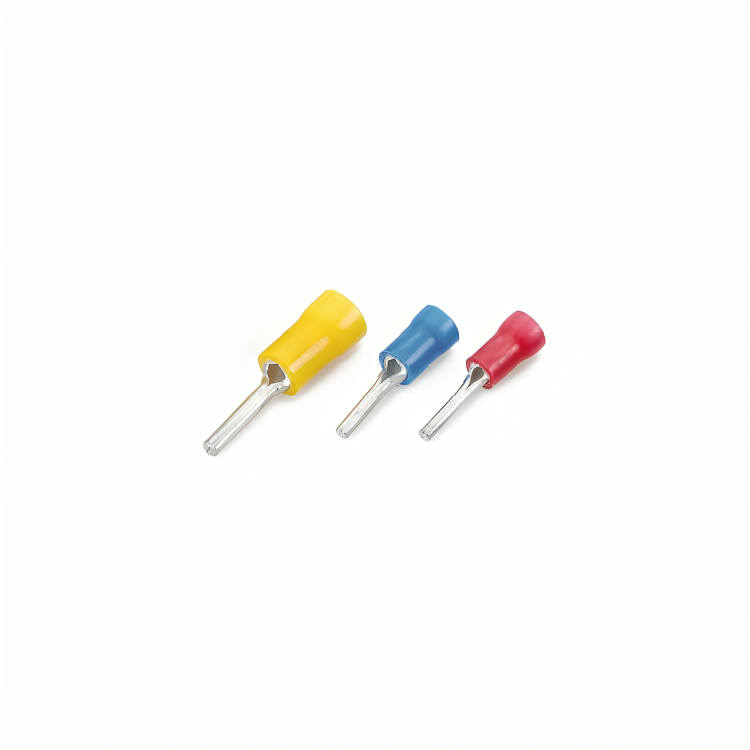

Copper Insulated Pin Type Cable Terminal Ends

Copper Insulated Pin Type Cable Terminal Ends

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

Cable mm² Stud Hole E Dimensions Type Product Code
A C D F G B G+H C-1 J-1
1.5 - 1.6 3.2 1.9 0.8 5 10 17 4.8 10 I HPI 17
2.5 - 2.3 3.9 1.9 0.8 5 10 17 5.5 10 I HPI 18
4 - 2.9 4.9 2.7 1 6 10 20 7.1 14 I HP 20
6 - 3.6 5.6 2.7 1 6 10 20 7.1 14 I HP 22
6 - 4 6 2.7 1 6 10 20 7.9 14 I HP 23
10 2.4 4.5 6.7 4.3 1.1 8 12 22 7.9 16 II HP 24
16 2.6 5.8 8.2 5.5 1.2 10 13 26 10 20 II HP 25

Description

Material: E-copper
Finish: Electro Tinned
