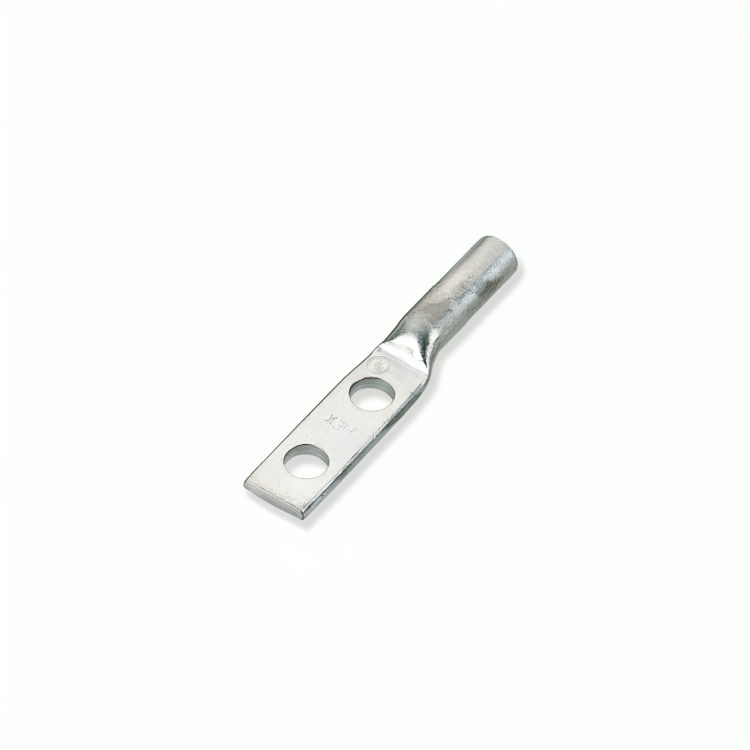

Copper Compression Lugs - Long Barrel, 2 Holes

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

Wire Size	Bolt Size	Color Code	Dimensions		Product Code

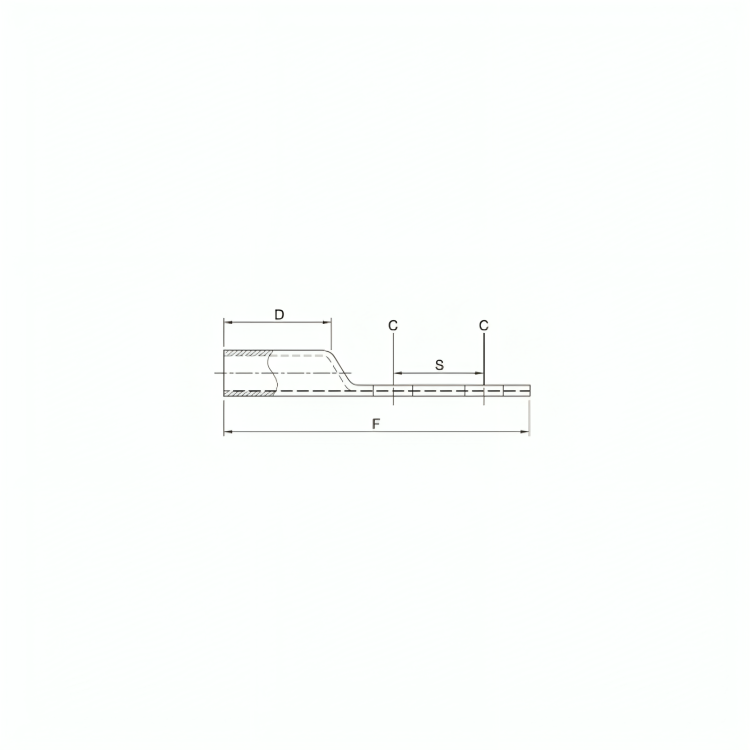

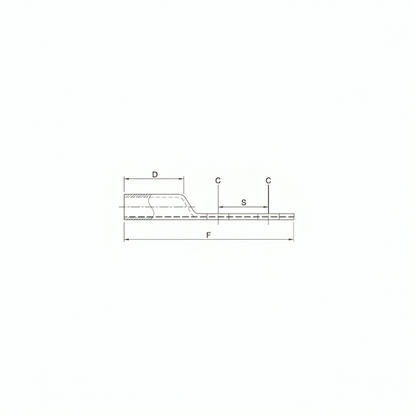

Wire Size	Bolt Size	Color Code	D	F	Product Code
2	5/16(2)	Brown	1 – 1/4	3	HCRB 2L2
2	1/2(2)	Brown	1 – 1/4	4 – 13/16	HCRC 2L2
2	#10(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-10-34
2	1/4(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-14-58
2	1/4(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-14-34
2	1/4(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-14-1
2	5/16(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-516-58
2	5/16(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-516-34
2	5/16(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-516-1
2	3/8(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-38-58
2	3/8(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-38-34
2	3/8(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-38-78
2	3/8(2)	Brown	1 – 1/4	3 – 5/16	HCRA 2L2-38-1
2	4 – 1/2	Brown	1 – 1/4	4 – 1/2	HCRB 2L2-12-134
1	3 – 7/16	Green	1 – 3/8	3 – 7/16	HCRA 1L2
1	3 – 7/16	Green	1 – 3/8	3 – 7/16	HCRA 1L2-14-58
1	4 – 3/4	Green	1 – 3/8	4 – 3/4	HCRC 1L2
1/0	5/16(2)	Pink	1 – 3/8	3 – 7/16	HCRA 1/0L2
1/0	1/2(2)	Pink	1 – 3/8	4 – 29/32	HCRC 1/0L2
8	5/16(2)	Red	13/16	2.19	HCRA 8L2
8	1/2(2)	Red	13/16	2.19	HCRB 8L2
6	1/4(2)	Blue	1 – 1/8	-	HCRB 6L2
6	#10(2)	Blue	1 – 1/8	-	HCRA 6L2-10-34
6	1/4(2)	Blue	1 – 1/8	-	HCRB 6L2-14-58
6	1/4(2)	Blue	1 – 1/8	-	HCRA 6L2-14-34
6	1/4(2)	Blue	1 – 1/8	-	HCRA 6L2-14-1
6	5/16(2)	Blue	1 – 1/8	-	HCRB 6L2-516-1
6	3/8(2)	Blue	1 – 1/8	-	HCRB 6L2-38-34
6	3/8(2)	Blue	1 – 1/8	-	HCRB 6L2-38-78
6	3/8(2)	Blue	1 – 1/8	-	HCRB 6L2-38-1
4	1/4(2)	Blue	1 – 1/8	-	HCRB 4L2
4	1/2(2)	Gray	1 – 1/8	-	HCRC 4L2
4	#10(2)	Gray	1 – 1/8	-	HCRA 4L2-10-34
4	1/4(2)	Gray	1 – 1/8	-	HCRB 4L2-14-58
4	1/4(2)	Gray	1 – 1/8	-	HCRA 4L2-14-34
4	1/4(2)	Gray	1 – 1/8	-	HCRA 4L2-14-1
4	5/16(2)	Gray	1 – 1/8	-	HCRA 4L2-516-58
4	5/16(2)	Gray	1 – 1/8	-	HCRA 4L2-516-34
4	5/16(2)	Gray	1 – 1/8	-	HCRA 4L2-516-1
4	3/8(2)	Gray	1 – 1/8	-	HCRB 4L2-38-34
4	3/8(2)	Gray	1 – 1/8	-	HCRB 4L2-38-1
4	1/2(2)	Gray	1 – 1/8	-	HCRB 4L2-12-134
3	1/4(2)	White	1 – 1/8	-	HCRA 3L2
3	3/8(2)	White	1 – 1/8	-	HCRA 3L2
2/0	1/2(2)	Black	1 – 1/2	-	HCRA 2/0L2
3/0	1/2(2)	Orange	1 – 1/2	-	HCRB 3/0L2
4/0	1/2(2)	Purple	1 – 5/8	-	HCRB 4/0L2
250MCM	1/2(2)	Yellow	1 – 5/8	-	HCRA 250L2
250MCM	3/8(2)	Yellow	1 – 5/8	-	HCRA 250L2-38-1
250MCM	3/8(2)	Yellow	1 – 5/8	-	HCRA 250L2-38-134
300MCM	1/2(2)	White	2	-	HCRA 300L2
350MCM	1/2(2)	Red	2	-	HCRA 350L2
400MCM	1/2(2)	Blue	2 – 1/8	-	HCRA 400L2
500MCM	1/2(2)	Brown	2 – 1/4	-	HCRA 500L2
600MCM	1/2(2)	Green	2 – 1/4	-	HCRA 600L2
*700MCM	1/2(2)	Pink	2 – 1/4	-	HCRA 700L2
*750MCM	1/2(2)	Black	2 – 7/8	-	HCRA 750L2
*1000MCM	1/2(2)	White	3	-	HCRA 1000L2
