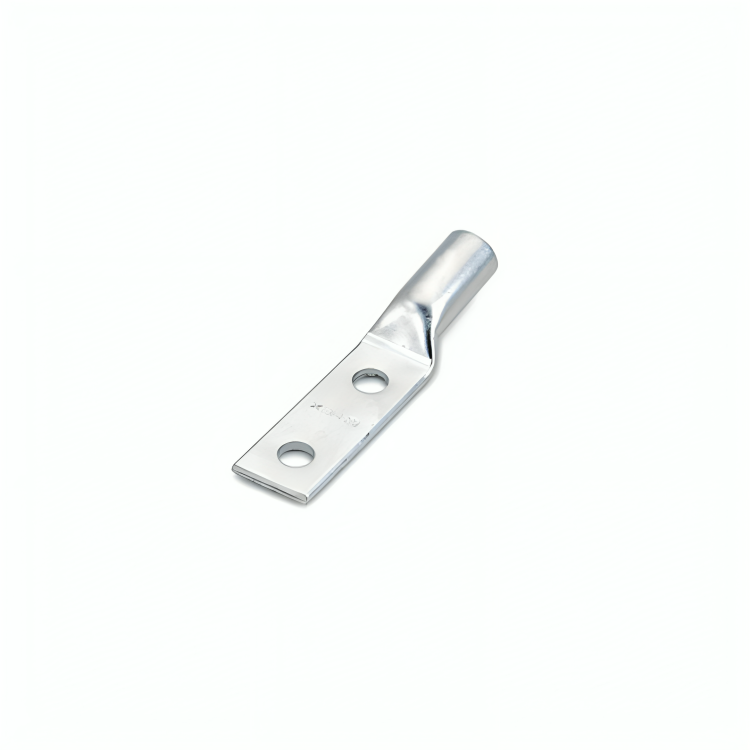

Copper Cable Terminal Ends With Extended Palm (2 Hole)

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

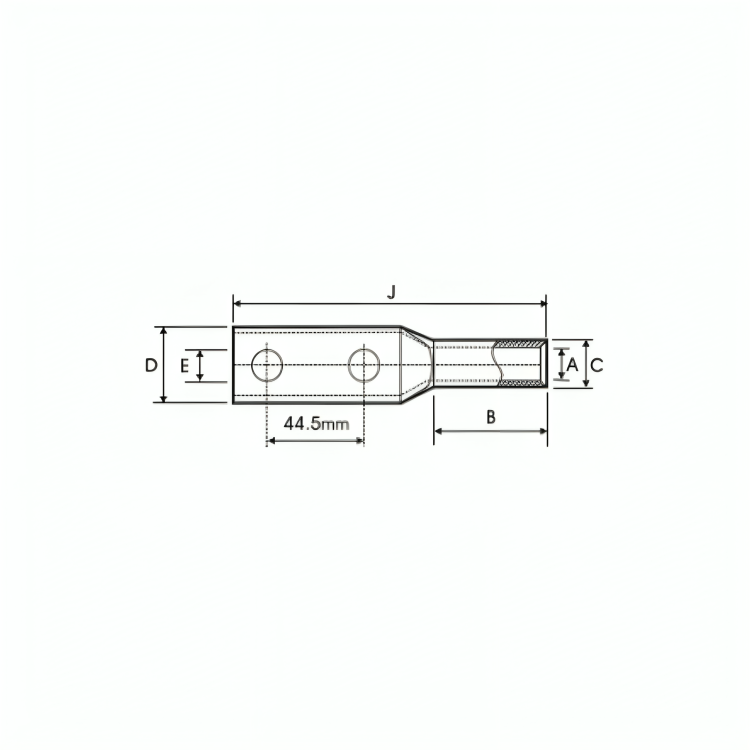

Cable mm²	Stud Hole E	Dimensions					Product Code
Cable mm²	Stud Hole E	A	C	D	B	J	Product Code
16	10.5	5.4	7.6	14.5	16	100	HT16 2E10
25	10.5	6.8	8.8	15	16	100	HT252E10
35	10.5	8.2	10.6	16.5	16	100	HT352E10
50	10.5	9.5	12.4	17	25	109	HT502E10
50	13	9.5	12.4	17	25	109	HT50 2E12
70	10.5	11.3	14.7	21	30	114	HT702E10
70	13	11.3	14.7	21	30	114	HT70 2E12
95	10.5	13.5	17.4	25	30	116	HT95 2E10
95	13	13.5	17.4	25	30	116	HT95 2E12
120	10.5	15	19.4	27.5	35	122	HT120 2E10
120	13	15	19.4	27.5	35	122	HT120 2E12
150	10.5	16.5	21.2	30	40	126	HT150 2E10
150	13	16.5	21.2	30	40	126	HT150 2E12
185	10.5	18.5	23.5	33.5	42	132	HT185 2E10
185	13	18.5	23.5	33.5	42	132	HT185 2E12
240	10.5	21	26.5	38.5	50	143	HT240 2E10
240	13	21	26.5	38.5	50	143	HT2402E12
300	13.7	23.5	30	43	55	144	HT3002E10
400	13.7	28.5	36.5	52.5	60	149	HT4002E10
500	13.7	30	39	56	65	160	HT5002E10
630	13.7	35	45	36.8	75	160	HT6302E10
