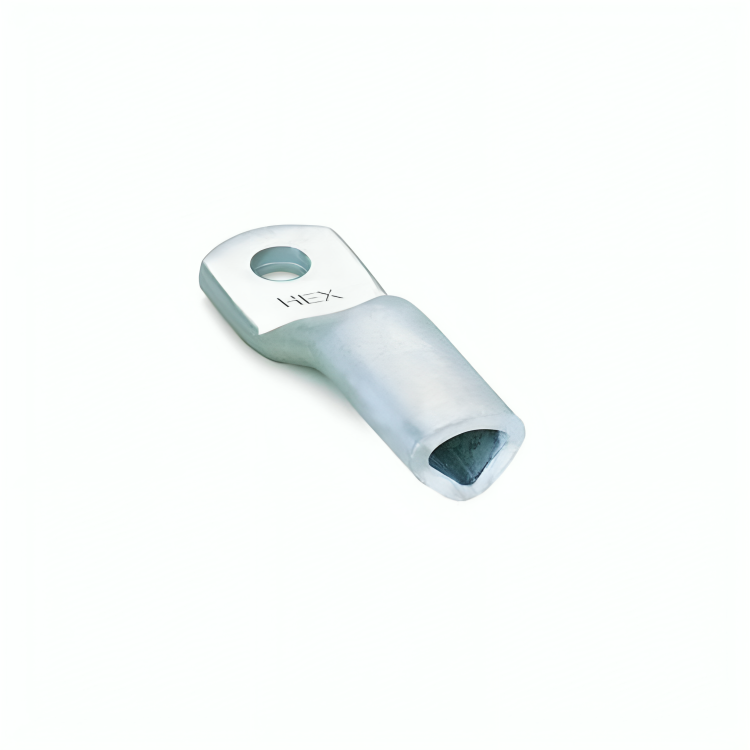

Aluminium 4 - Core Sector Cable Lugs

Price will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

Searchable Table

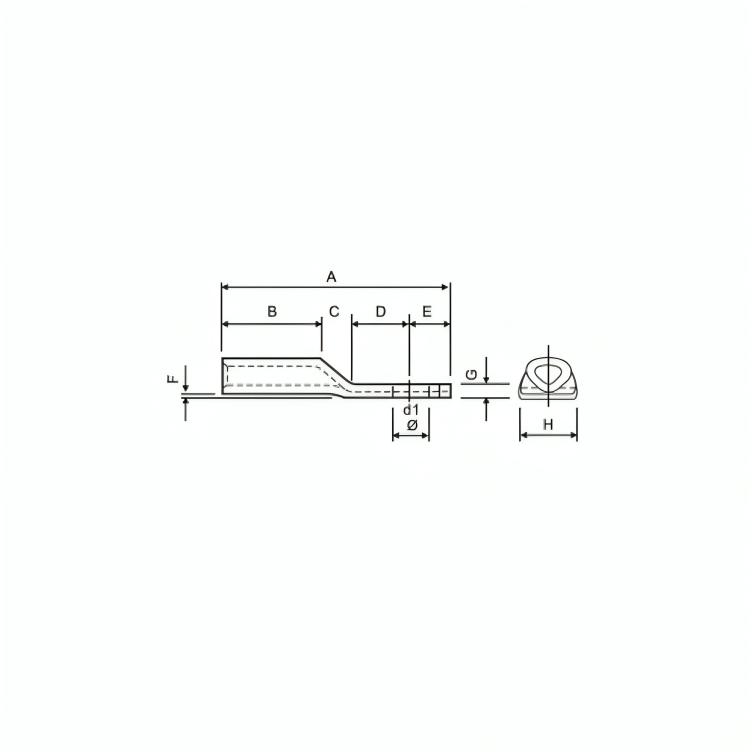

Cable mm²	Stud Ø	Dimensions in mm +- 3%									Product Code
Cable mm²	Stud Ø	A	B	C	D	E	F	G	H	d1Ø	Product Code
25	8	62	25	8	17	12	1	4.1	15.2	8.4	HAL4 25-8
25	10	62	25	8	17	12	1	4	17	10.4	HAL4 25-10
25	12	62	25	8	17	12	1	2.9	21	12.5	HAL4 25-12
35	8	70	30.5	10	18.5	11	1	4.4	17.6	8.4	HAL4 35-8
35	10	70	30.5	10	18.5	11	1	3.8	19.5	10.4	HAL4 35-10
35	12	70	30.5	10	18.5	11	1	3.6	21	12.5	HAL4 35-12
50	10	73.3	32.5	11	18	12.8	1	4.5	20.3	10.4	HAL4 50-10
50	12	73.3	32.5	11	18	12.8	1	4	20.5	12.5	HAL4 50-12
50	16	73.3	32.5	11	18	12.8	1	2.9	21	16.5	HAL4 50-16
70	10	76.6	36.5	11.5	16.5	12	1	5	23.2	10.4	HAL4 70-10
70	12	76.6	36.5	11.5	16.5	12	1	4.8	25.5	12.5	HAL4 70-12
70	16	76.6	36.5	11.5	16.5	12	1	4.6	26	16.5	HAL4 70-16
95	10	84	39	15	17.5	12.5	1.5	5.5	27.8	10.4	HAL4 95-10
95	12	84	39	15	17.5	12.5	1.5	5.5	27.8	12.5	HAL4 95-12
95	16	84	39	15	17.5	12.5	1.5	5.5	27.8	16.5	HAL4 95-16
120	12	91.8	45.5	16.8	17.5	12	1.5	6.2	30.8	12.5	HAL4 120-12
120	16	91.8	45.5	16.8	17.5	12	1.5	6.2	30.8	16.5	HAL4 120-16
120	20	91.8	45.5	16.8	17.5	12	1.5	6.2	30.8	20.5	HAL4 120-20
150	12	102	47.2	20	18.3	16.5	1.5	7.5	34	12.4	HAL4 150-12
150	16	102	47.2	20	18.3	16.5	1.5	7.5	34	16.5	HAL4 150-16
150	20	102	47.2	20	18.3	16.5	1.5	7.5	34	20.5	HAL4 150-20
185	12	109.2	53.5	20.2	19.5	16	1.5	7.3	38.3	12.4	HAL4 185-12
185	16	109.2	53.5	20.2	19.5	16	1.5	7.3	38.3	16.5	HAL4 185-16
185	20	109.2	53.5	20.2	19.5	16	1.5	7.3	38.3	20.5	HAL4 185-20
240	20	117	55.5	23	20.2	17.5	2	9	42.5	20.5	HAL4 240-20
300	20	130	60	23	27	20	2	11	49.2	20.5	HAL4 300-20
