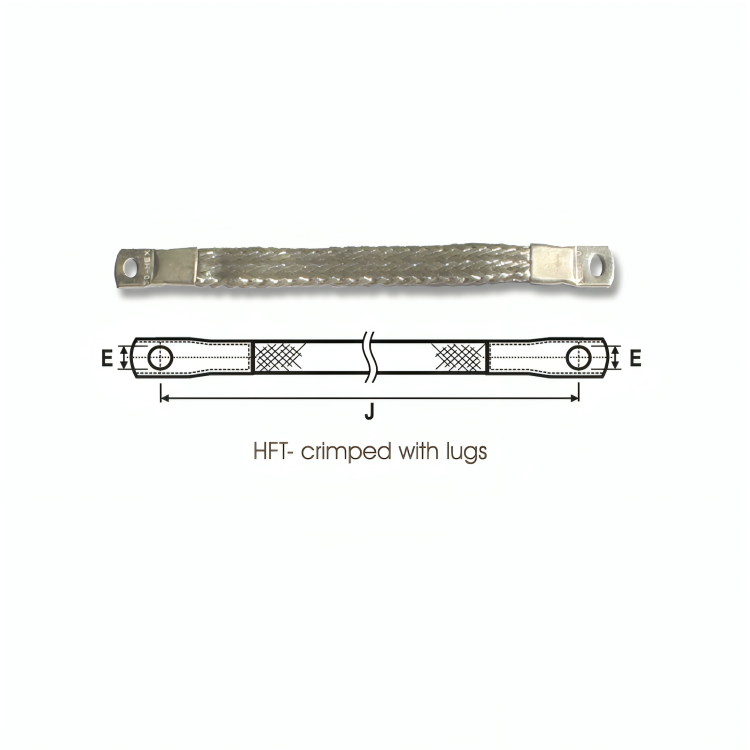

Tinned Copper Flexible Braids - Crimped With lugs

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

Searchable Table

Cable mm²	Dimensions in mm			Current Rating AMP	Product Code
Cable mm²	J	E1	E2	Current Rating AMP	Product Code
4	50	6	6	50	HFT4 50 - 50
4	100	6	6	50	HFT4 100 - 50
4	150	6	6	50	HFT4 150 - 50
4	200	6	6	50	HFT4 200 - 50
10	50	6	6	90	HFT10 50 - 90
10	100	6	6	90	HFT10 100 - 90
10	150	6	6	90	HFT10 150 - 90
10	200	6	6	90	HFT10 200 - 90
16	100	8.5	8.5	125	HFT16 100 - 125
16	150	8.5	8.5	125	HFT16 150 - 125
16	200	8.5	8.5	125	HFT16 200 - 125
16	250	8.5	8.5	125	HFT16 250 - 125
16	300	8.5	8.5	125	HFT16 300 - 125
25	100	10	10	160	HFT25 100 - 160
25	150	10	10	160	HFT25 150 - 160
25	200	10	10	160	HFT25 200 - 160
25	250	10	10	160	HFT25 250 - 160
25	300	10	10	160	HFT25 300 - 160
30	100	10	10	180	HFT30 100 - 180
30	150	10	10	180	HFT30 150 - 180
30	200	10	10	180	HFT30 200 - 180
30	250	10	10	180	HFT30 250 - 180
30	300	10	10	180	HFT30 300 - 180
35	100	10	10	210	HFT35 100 - 210
35	150	10	10	210	HFT35 150 - 210
35	200	10	10	210	HFT35 200 - 210
35	250	10	10	210	HFT35 250 - 210
35	300	10	10	210	HFT35 300 - 210
50	100	12	12	250	HFT50 100 - 250
50	150	12	12	250	HFT50 150 - 250
50	200	12	12	250	HFT50 200 - 250
50	250	12	12	250	HFT50 250 - 250
50	300	12	12	250	HFT50 300 - 250

No table available for this product.

Crimping Test Applied Force : Upto 240 mm2 -13 x 105 N
300 mm2 to 630 mm2 – 2.0x105 N Above 630 mm2 - 43 x 105 N
Construction : Forged circular copper palm is friction welded to an EC grade Aluminum circular barrel thus achieving the best possible transition
