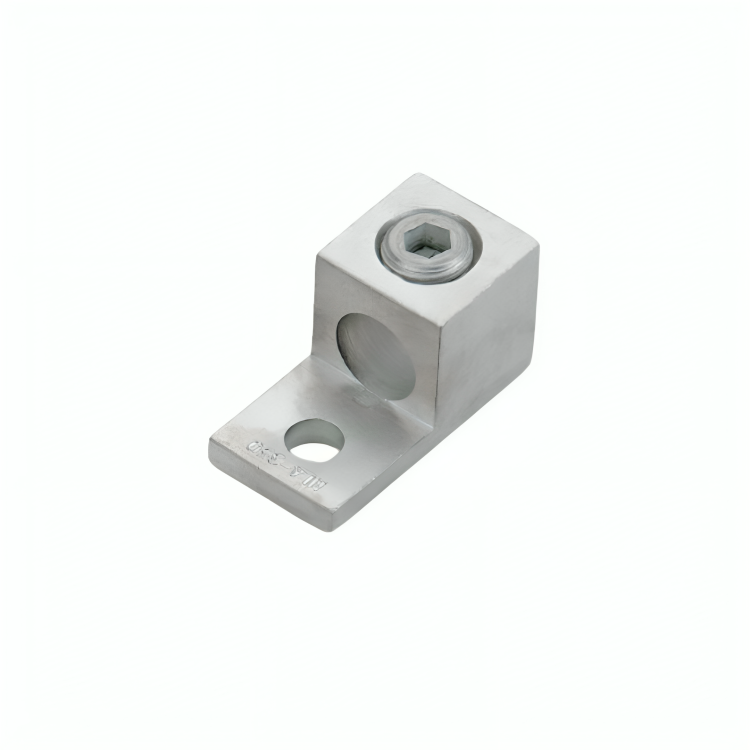

Aluminium Single Barrel Connector, One Hole Mount
Aluminium Single Barrel Connector, One Hole Mount
Regular price
Prices will be recieved with Quotation
Regular price
Sale price
Prices will be recieved with Quotation
Unit price
/
per
Product Codes or Sizes
Product Codes or Sizes
No table available for this product.

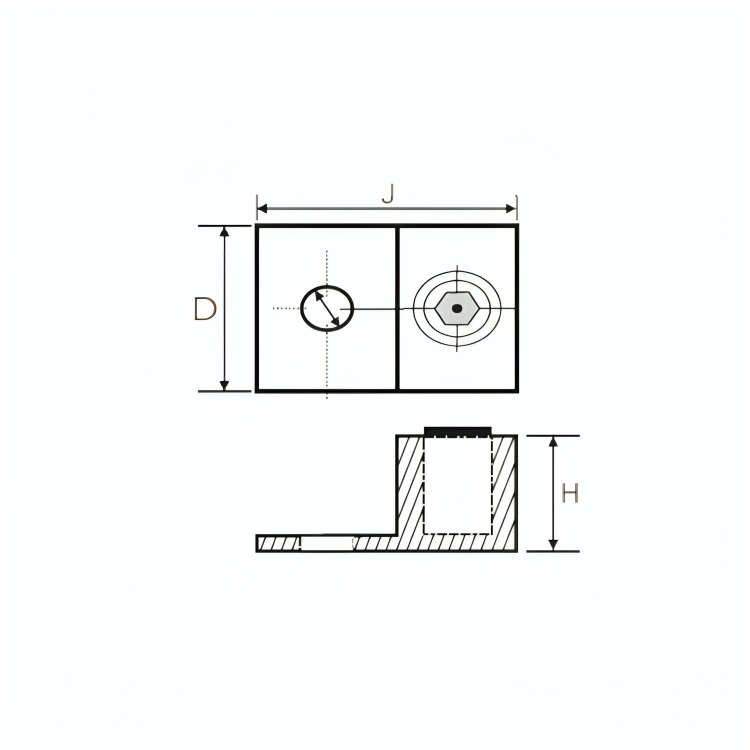

| Cable mm² | Stud Hole E | Dimensions | Product Code | ||||
|---|---|---|---|---|---|---|---|
| A | D | G | H | J | |||
| 4 STR | 14 AWG | 27.00 (1.10) | 12.70 (0.50) | 5.95 (0.23) | 1/4 | 2.40 (0.09) | HLA 4 |
| 2 STR | 14 AWG | 29.40 (1.15) | 12.70 (0.50) | 7.55 (0.29) | 1/4 | 2.75 (0.10) | HLA 2 |
| 1/0 STR | 14 AWG | 37.10 (1.46) | 15.90 (0.62) | 11.10 (0.43) | 1/4 | 4.70 (0.18) | HLA 10 |
| 2/0 STR | 14 AWG | 37.10 (1.46) | 15.90 (0.62) | 11.10 (0.43) | 1/4 | 4.70 (0.18) | HLA 20 |
| 250 KCMIL | 6 STR | 50.60 (2.00) | 21.75 (0.85) | 12.75 (0.50) | 5/16 | 6.40 (0.25) | HLA 250 |
| 300 KCMIL | 6 STR | 50.60 (2.00) | 21.75 (0.85) | 11.90 (0.46) | 5/16 | 6.40 (0.25) | HLA 300 |
| 350 KCMIL | 6 STR | 57.15 (2.25) | 28.60 (1.12) | 12.70 (0.50) | 3/8 | 6.40 (0.25) | HLA 350 |
| 500 KCMIL | 4 STR | 71.50 (2.81) | 38.10 (1.50) | 19.05 (0.75) | 3/8 | 8.00 (0.31) | HLA 500 |
| 600 KCMIL | 2 STR | 81.00 (3.19) | 38.10 (1.50) | 20.60 (0.81) | 3/8 | 11.10 (0.43) | HLA 600 |
| 800 KCMIL | 300 KCMIL | 85.70 (3.37) | 44.50 (1.75) | 22.20 (0.87) | 5/8 | 12.70 (0.50) | HLA 800 |
| 1000 KCMIL | 500 KCMIL | 85.70 (3.37) | 44.50 (1.75) | 22.20 (0.87) | 5/8 | 12.70 (0.50) | HLA 1000 |
