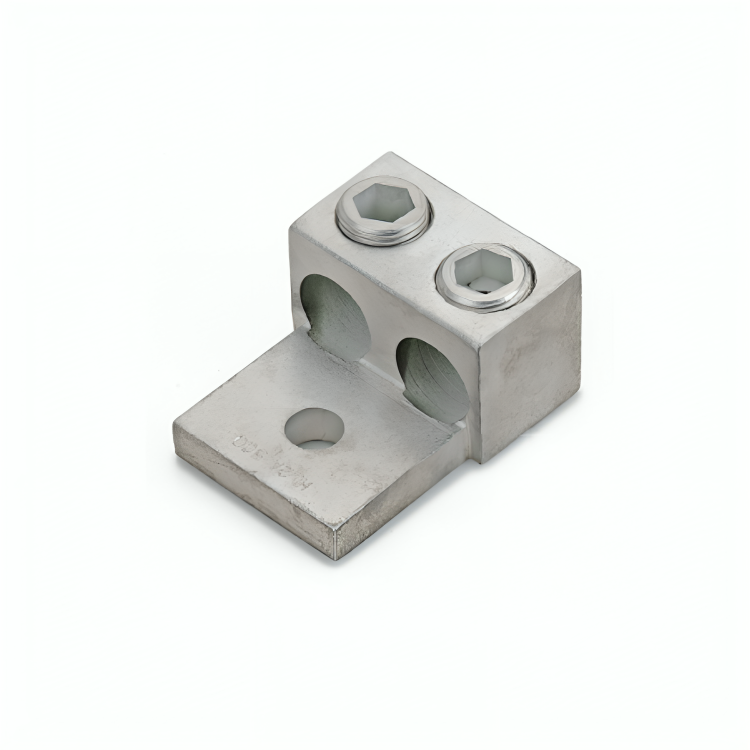

Aluminium Double Barrel Connector, One Hole Mount
Aluminium Double Barrel Connector, One Hole Mount
Regular price
Prices will be recieved with Quotation
Regular price
Sale price
Prices will be recieved with Quotation
Unit price
/
per
Product Codes or Sizes
Product Codes or Sizes
No table available for this product.

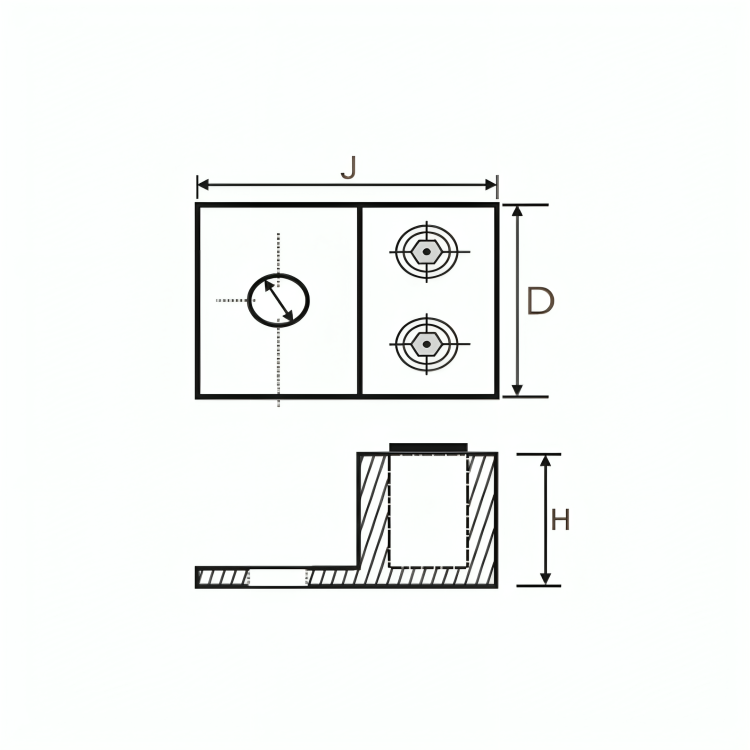

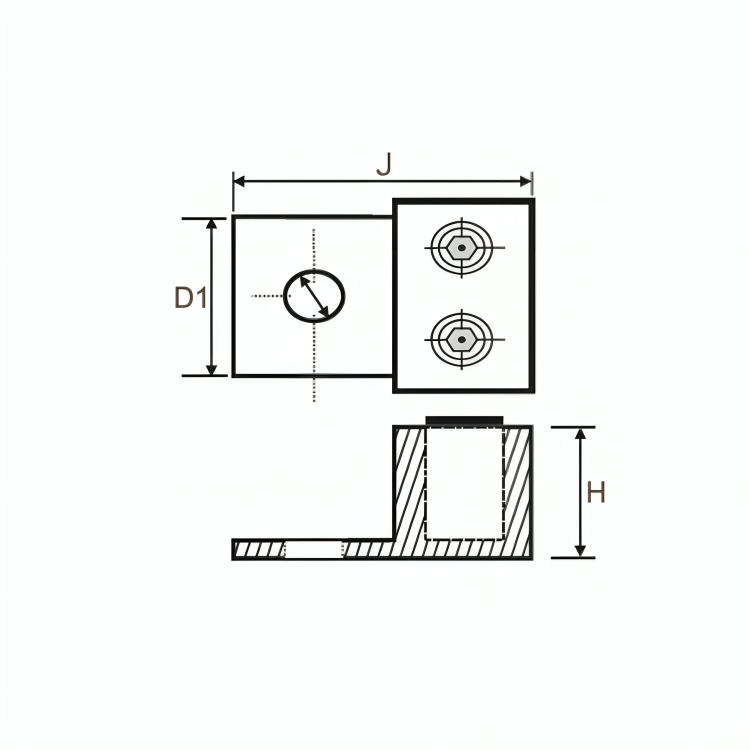

| Cond. Ram. (Al. or Cu.) | Dimensions | Product Code | ||||||
|---|---|---|---|---|---|---|---|---|
| Max. | Min. | J | D | G | E | F | D1 | |
| 1/0 STR | 14 AWG | 37.10 (1.46) | 30.95 (1.22) | 11.10 (0.43) | 1/4 | 4.70 (0.18) | - | HL2A 10 |
| 2/0 STR | 14 AWG | 37.10 (1.46) | 31.75 (1.25) | 10.70 (0.42) | 1/4 | 4.70 (0.18) | - | HL2A 20 |
| 250 KCMIL | 6 STR | 65.10 (2.56) | 41.70 (1.64) | 22.20 (0.87) | 3/8 | 6.40 (0.25) | 38.1 (1.50) | HL2A 250 |
| 350 KCMIL | 6 STR | 73.00 (2.87) | 48.60 (1.91) | 22.20 (0.87) | 1/2 | 6.40 (0.25) | 44.8 (1.76) | HL2A 350 |
| 600 KCMIL | 2 STR | 81.00 (3.19) | 61.10 (2.40) | 15.90 (0.62) | 1/2 | 11.10 (0.43) | 50.4 (1.98) | HL2A 600 |
| 800 KCMIL | 300 KCMIL | 85.70 (3.37) | 80.90 (3.18) | 22.20 (0.87) | 5/8 | 12.70 (0.50) | 50.4 (1.98) | HL2A 800 |
| 1000 KCMIL | 500 KCMIL | 85.70 (3.37) | 80.90 (3.18) | 22.20 (0.87) | 5/8 | 12.70 (0.50) | - | HL2A 1000 |
Description
Description
No table available for this product.
Specifications
- 2 Hole Palm - 2 Hole Screw,
- 3 Hole Palm - 2 Hole Screw, 3 Hole Palm - 3 Hole screw etc. can be made on demand and/or customers specifications.
