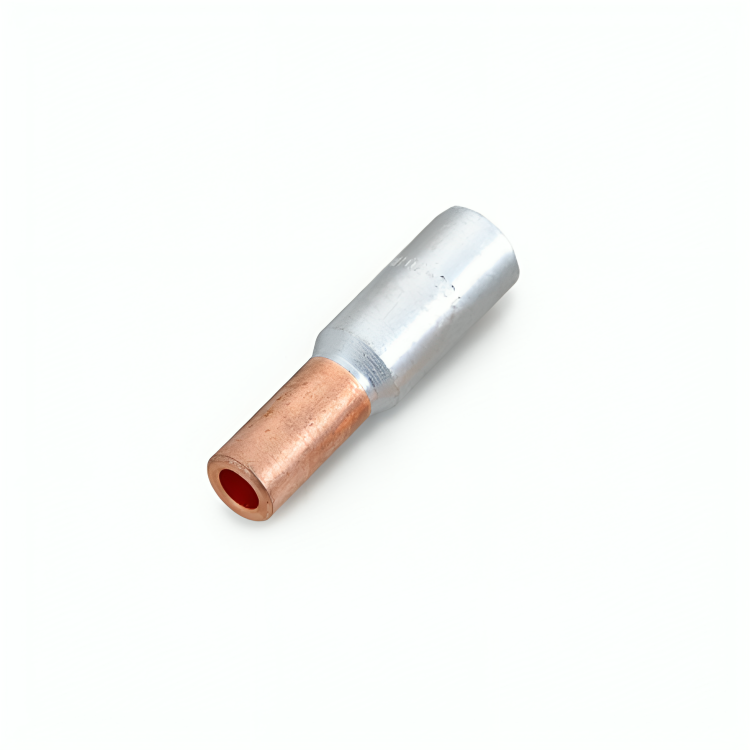

Aluminium - Copper Bi - Metal Connector / Splice

Aluminium - Copper Bi - Metal Connector / Splice

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

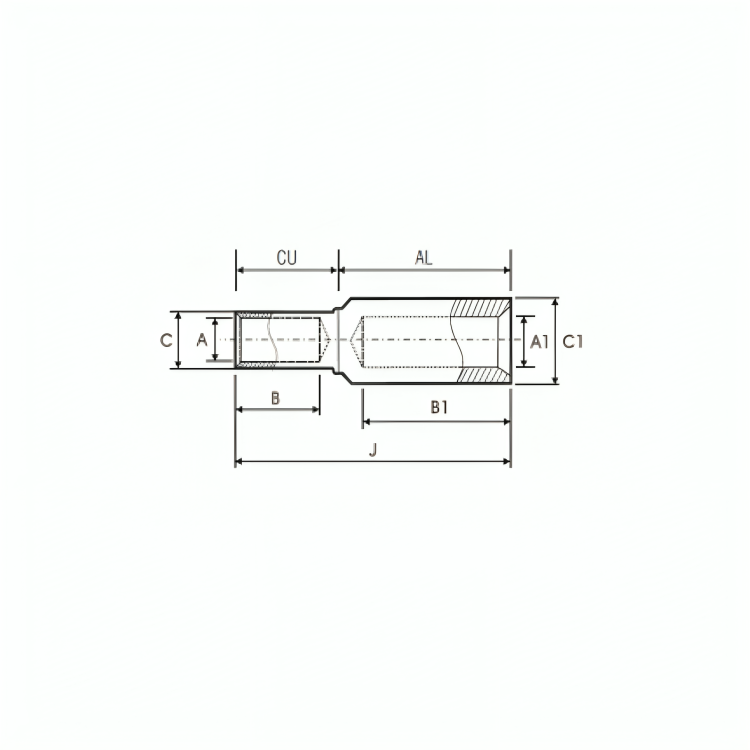

Cable Area mm² Dimensions Product Code
Al. Solid or stranded Copper stranded A C B A1 B1 C1 J
16 16 5.6 12.2 29 5.5 16 43 88 HBS16 - 16
25 16 5.6 12.2 29 6.5 16 43 88 HBS 25 - 16
25 25 7 12.2 29 6.5 16 43 88 HBS 25 - 25
35 16 5.6 12.2 29 8 16 43 88 HBS 35 - 16
35 25 7 12.2 29 8 16 43 88 HBS 35 - 25
35 35 8 12.2 29 8 16 43 88 HBS 35 - 35
50 25 7 12.2 29 9 20 43 88 HBS 50 - 25
50 35 8 12.2 29 9 20 43 88 HBS 50 - 35
50 50 9.5 12.2 29 9 20 43 88 HBS 50 - 50
70 35 8 12.2 29 11 20 43 88 HBS 70 - 35
70 50 9.5 12.2 29 11 20 43 88 HBS 70 - 50
70 70 11 12.2 33 11 20 43 90 HBS 70 - 70
95 50 9.5 21 29 12.5 20 43 88 HBS 95 - 50
95 70 11 12.2 33 12.5 20 43 90 HBS 95 - 70
95 95 13 21 33 12.5 20 43 90 HBS 95 - 95
120 70 11 21 33 13.7 25 59 107 HBS120 - 70
120 95 13 21 33 13.7 25 59 107 HBS120 - 95
120 120 14.2 21 33 13.7 25 59 107 HBS 120 - 120
150 95 13 21 33 15.5 25 59 107 HBS150 - 95
150 120 14.2 21 33 15.5 25 59 107 HBS 150 - 120
150 150 16 21 33 15.5 25 59 107 HBS 150 - 150
185 120 14.2 21 33 17 32 59 107 HBS 185 - 120
185 150 16 21 33 17 32 59 107 HBS 185 - 150
185 185 18 26.2 43 17 32 59 120 HBS 185 - 185
240 150 16 21 33 19.5 32 59 107 HBS 240 - 150
240 185 18 26.2 43 19.5 32 59 120 HBS 240 - 185
240 240 20 26.2 43 19.5 32 59 120 HBS 240 - 240
