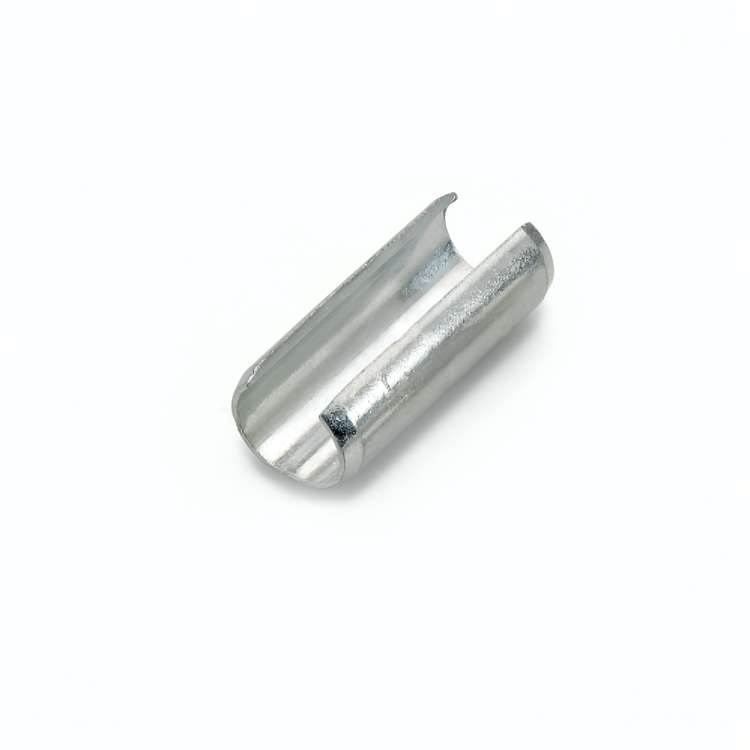

Soldering Type Copper Weak Back Ferrules

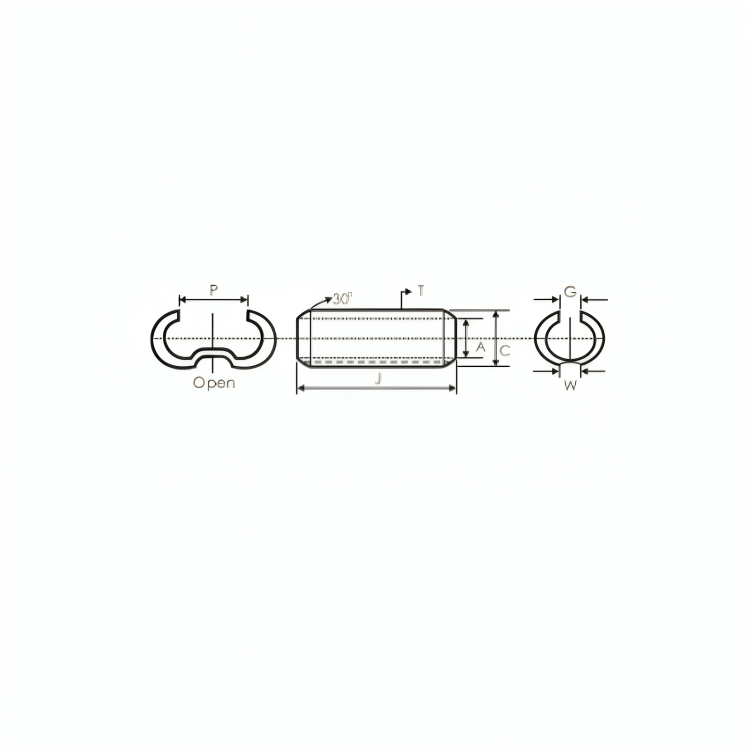

Cable mm²	Dimensions							Product Code
	A	C	D	G	H	B	J
6	3	4.6	2	20	0.8	3	-	HWB6
10	4.4	6	2	25	0.8	4	-	HWB 10
16	5.5	7.5	2	25	1	5	1.5	HWB 16
25	7	9	2	30	1	7	1.5	HWB 25
35	8	10.4	2	35	1.2	8	1.5	HWB 35
50	9.5	11.9	2	40	1.2	9	0.5	HWB 50
70	12	14.8	3	45	1.4	12	3	HWB 70
95	13.5	16.3	3	50	1.4	13	3	HWB 95
120	15.5	18.7	4	55	1.6	15	3	HWB 120
150	17	20.6	4	60	1.8	16	3	HWB 150
185	18.5	22.9	4	65	2.2	18	5	HWB 185
225	20.5	24.9	5	75	2.2	20	5	HWB 225
240	22	26.4	5	80	2.2	21	5	HWB 240
300	24	29.6	5	85	2.8	23	5	HWB 300
400	28.5	34.7	7	95	3.1	27	5	HWB 400
500	30.5	37.5	7	105	3.5	30	5	HWB 500
630	34.5	42.5	8	115	4	33	5	HWB 625
