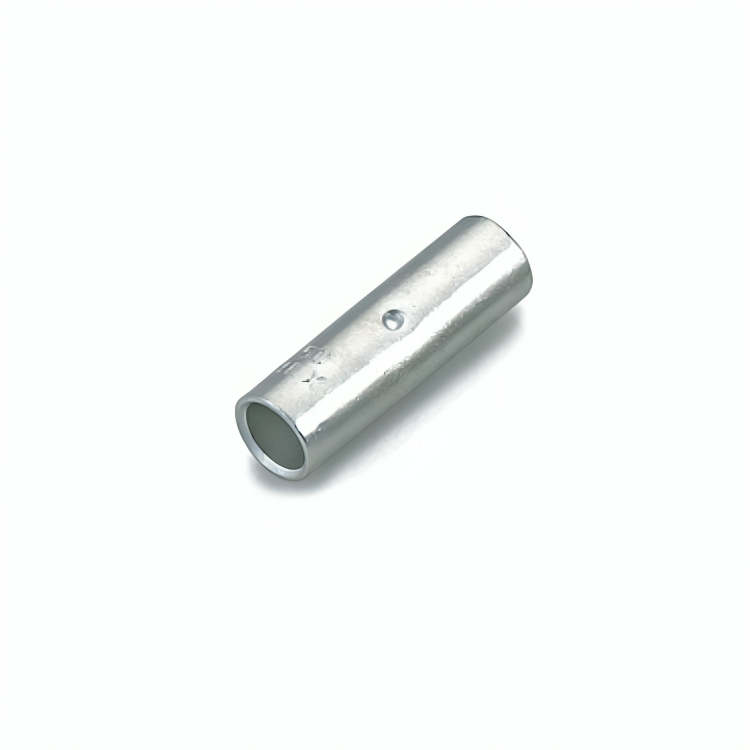

Short Barrel Connectors

Cable mm²	Dimensions			Product Code
	A	C	J
1.5	1.8	3.7	12	HL 1.5
2.5	2.4	4	15	HL 2.5
4	3.1	4.8	15	HL 4
6	3.8	5.5	15	HL 6
10	4.5	6.2	20	HL 10
16	5.4	7.1	20	HL 16
20	6.3	7.7	22	HL 20
25	6.8	8.8	32	HL 25
35	8.2	10.6	36	HL 35
50	9.5	12.4	40	HL 50
70	11.3	14.7	45	HL 70
95	13.5	17.4	45	HL 95
120	15	19.4	45	HL 120
150	16.5	21.2	55	HL 150
185	18.5	23.5	60	HL 185
240	21	26.5	80	HL 240
300	23.5	30	85	HL 300
400	28.5	36.5	85	HL 400
500	30	39	100	HL 500
550	31.7	41.5	110	HL 550
630	35	45	110	HL 630
800	39	50.6	150	HL 800
1000	43	56.2	170	HL 1000
