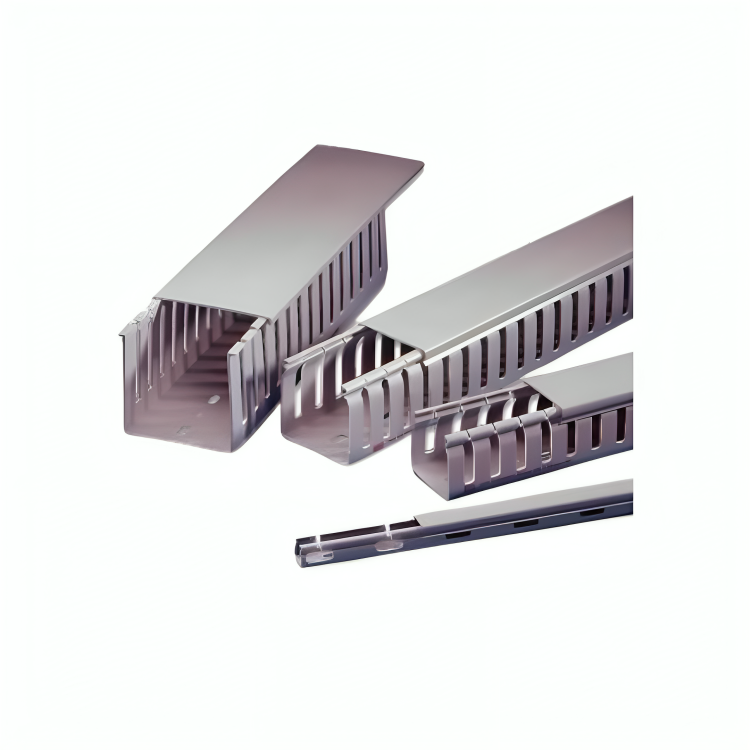

PVC Cable Ducts / Channels / Panel Trunkings

Prices will be recieved with Quotation

Sale Sold out

Product Codes or Sizes

No table available for this product.

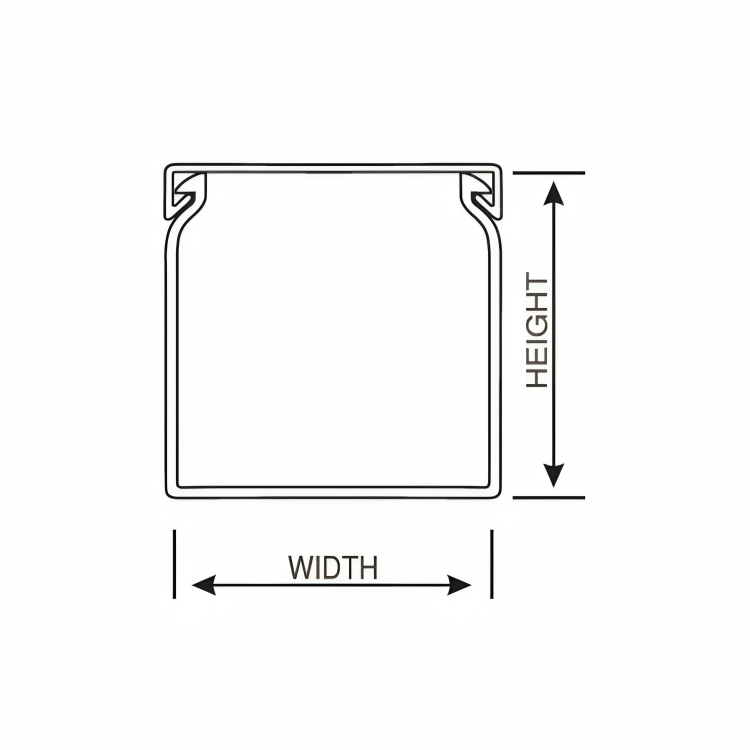

Size W x H (mm²)	Cross Section Area	Cable Housing Capacity (Nos.)	Product Code	Standard Pack Total Length in Metres
25 x 25	625	19	15	12	HPCXC - 2525	100
25 x 30	750	36	29	23	HPCXC - 2530	72
25 x 40	1000	48	39	31	HPCXC - 2540	72
25 x 60	1500	72	55	45	HPCXC - 2560	36
25 x 80	2000	92	75	59	HPCXC - 2580	36
25 x 100	2500	166	106	51	HPCXC - 25100	30
40 x 40	1600	81	65	51	HPCXC - 4040	36
40 x 60	2400	121	98	77	HPCXC - 4060	36
40 x 80	3200	160	130	102	HPCXC - 4080	36
40 x 100	4000	256	196	141	HPCXC - 40100	30
60 x 60	3600	180	146	114	HPCXC - 6060	24
60 x 80	4800	246	199	156	HPCXC - 6080	24
60 x 100	6000	308	247	194	HPCXC - 60100	16
80 x 60	4800	251	203	159	HPCXC - 8060	24
80 x 80	6400	337	272	214	HPCXC - 8080	24
80 x 100	8000	425	344	217	HPCXC - 80100	16
100 x 100	10000	531	429	336	HPCXC - 1002	16

No table available for this product.

Made of rigid poly vinyl chloride (PVC) of high tensile & compressive strength.
Highly durable, will not crack, peel or chip, also resistant to oil, fungus, salt solutions etc..
Non brittle, non inflammable and also warp proof.
Fast & efficient locking guaranteed because of specially designed duct & cover.
Slotting patterns prevents wire from popping up, while removing cover.
Elongated slots at the bottom makes flexible mounting possible.
Special orders regarding colours, length or modification of existing range can be manufactured as per your specs.

Size W x H (mm²)	Cross Section Area	Cable Housing Capacity (Nos.)			Product Code	Standard Pack Total Length in Metres
Size W x H (mm²)	Cross Section Area	OD 3.18 1.5 mm2 (16 AWG)	OD 3.53 2.5 mm2 (14 AWG)	OD 4.01 4.0 mm2 (12 AWG)	Product Code	Standard Pack Total Length in Metres
25 x 25	625	19	15	12	HPCXC - 2525	100
25 x 30	750	36	29	23	HPCXC - 2530	72
25 x 40	1000	48	39	31	HPCXC - 2540	72
25 x 60	1500	72	55	45	HPCXC - 2560	36
25 x 80	2000	92	75	59	HPCXC - 2580	36
25 x 100	2500	166	106	51	HPCXC - 25100	30
40 x 40	1600	81	65	51	HPCXC - 4040	36
40 x 60	2400	121	98	77	HPCXC - 4060	36
40 x 80	3200	160	130	102	HPCXC - 4080	36
40 x 100	4000	256	196	141	HPCXC - 40100	30
60 x 60	3600	180	146	114	HPCXC - 6060	24
60 x 80	4800	246	199	156	HPCXC - 6080	24
60 x 100	6000	308	247	194	HPCXC - 60100	16
80 x 60	4800	251	203	159	HPCXC - 8060	24
80 x 80	6400	337	272	214	HPCXC - 8080	24
80 x 100	8000	425	344	217	HPCXC - 80100	16
100 x 100	10000	531	429	336	HPCXC - 1002	16
