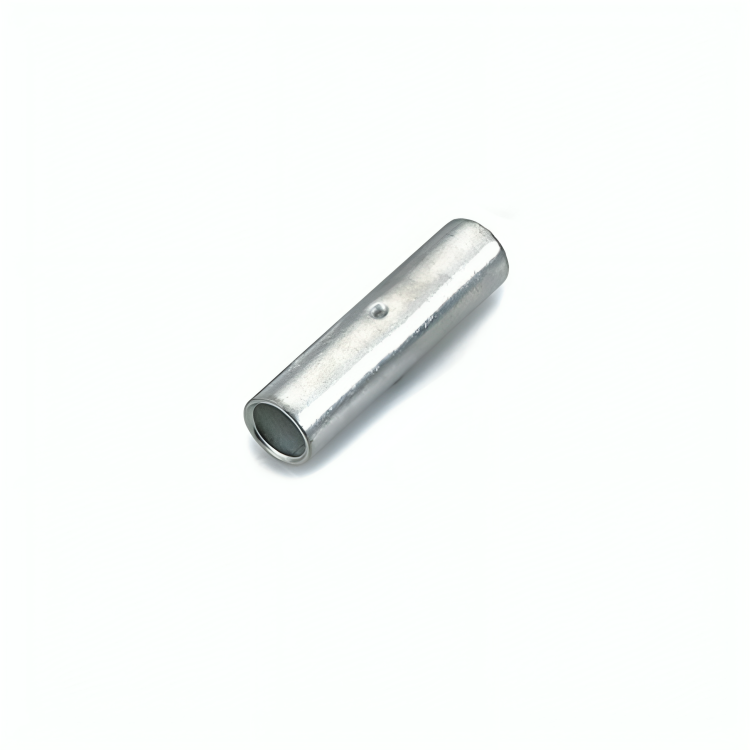

High Voltage Copper Connectors - 33KV

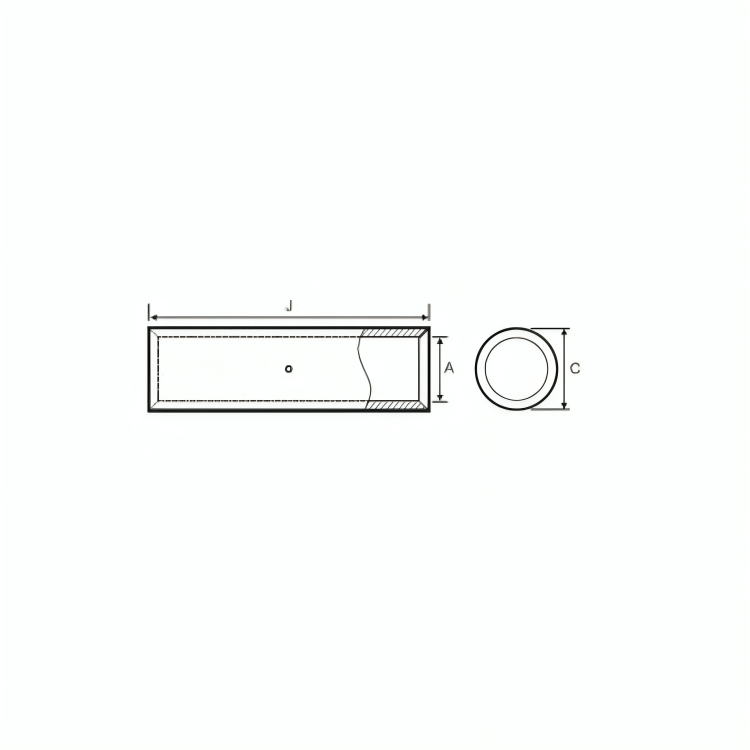

Cable mm²	Dimensions			Product Code
	A	C	J
1.5	1.8	3.7	22	HC 1.5
2.5	2.4	4	22	HC 2.5
4	3.1	4.8	22	HC 4
6	3.8	5.5	22	HC 6
10	4.5	6.2	22	HC 10
16	5.4	7.1	44	HC 16
20	6.3	7.7	44	HC 20
25	6.8	8.8	47	HC 25
35	8.2	10.6	47	HC 35
50	9.5	12.4	47	HC 50
70	11.3	14.7	50	HC 70
95	13.5	17.4	54	HC 95
120	15	19.4	65	HC 120
150	16.5	21.2	65	HC 150
185	18.5	23.5	65	HC 185
240	21	26.5	89	HC 240
300	23.5	30	89	HC 300
400	28.5	36.5	90	HC 400
500	30	39	115	HC 500
550	31.7	41.5	115	HC 550
630	35	45	115	HC 630
800	39	50.6	230	HC 800
1000	43	56.2	230	HC 1000
