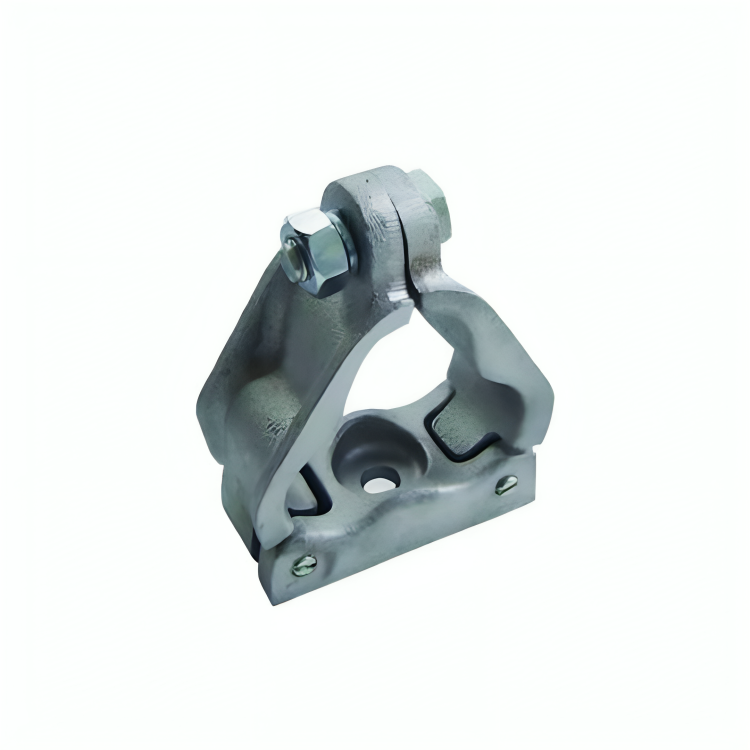

Aluminium Cable Cleats Trefoil

Aluminium Cable Cleats Trefoil

Price will be recieved with Quotation
Price will be recieved with Quotation
Sale Sold out

Product Codes or Sizes

Searchable Table

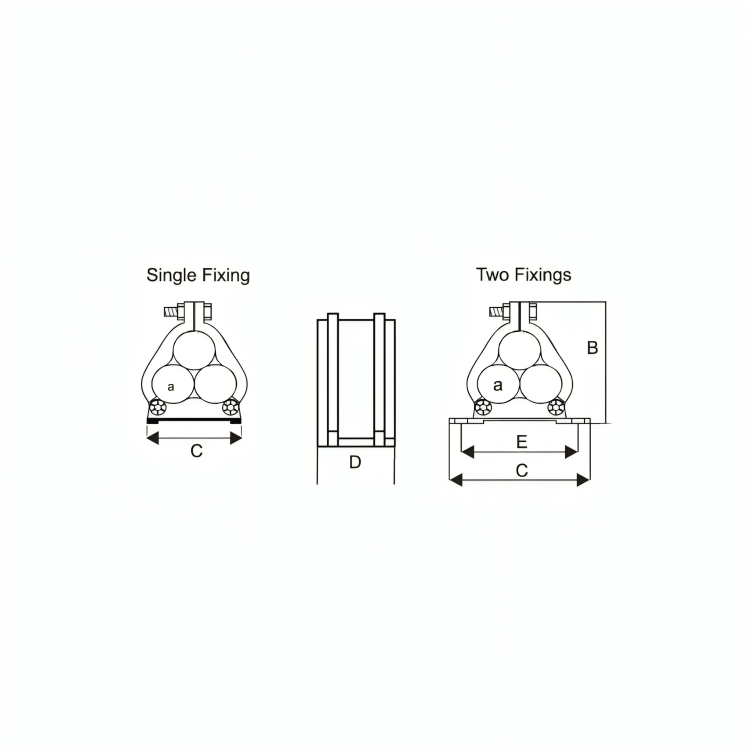

Cable Diameter mm Dimensions (mm) Product Code
Single Fixing Double Fixing
B D C C E
24-25 94 38 75 128 102 HATFC 24-25
25-27 97 38 75 128 102 HATFC 25-27
27-28 100 38 75 128 102 HATFC 27-28
28-30 103 38 76 130 104 HATFC 28-30
30-32 105 38 79 133 107 HATFC 30-32
32-34 106 38 83 135 109 HATFC 32-34
34-35 109 38 86 137 110 HATFC 34-35
35-36 113 38 89 138 113 HATFC 35-36
36-38 116 38 92 140 114 HATFC 36-38
38-40 119 38 95 145 118 HATFC 38-40
40-41 122 38 99 147 121 HATFC 40-41
41-43 124 38 105 149 123 HATFC 41-43
43-44 127 38 108 150 124 HATFC 43-44
44-46 130 38 112 154 128 HATFC 44-46
46-48 133 38 114 156 129 HATFC 46-48
48-49 137 38 118 159 133 HATFC 48-49
49-51 140 38 121 165 135 HATFC 49-51
51-53 143 38 124 165 137 HATFC 51-53
53-54 146 38 127 172 141 HATFC 53-54
54-55.5 155 44 133 183 152 HATFC 54-55.5
55.5-57 158 44 137 187 155 HATFC 55.5-57
57-59 160 44 141 189 157 HATFC 57-59
59-60 163 44 145 191 160 HATFC 59-60
60-62 165 44 148 194 162 HATFC 60-62
62-63.5 168 44 152 196 165 HATFC 62-63.5
63.5-65 172 44 156 199 168 HATFC 63.5-65
65-66.5 176 44 160 202 170 HATFC 65-66.5
66.5-68 178 44 164 205 173 HATFC 66.5-68
68-70 181 44 168 208 176 HATFC 68-70
70-71.5 187 44 171 215 183 HATFC 70-71.5
71.5-73 190 44 175 217 186 HATFC 71.5-73
73-74.5 193 44 179 220 188 HATFC 73-74.5
74.5-76 197 44 183 222 191 HATFC 74.5-76

Description

Single Fixing & Double Bolt Fixing

24 to 76 mm diameter cables in trefoil groups are available in either single or double fixing design.
Operating temperature – 60°C to + 100°C
